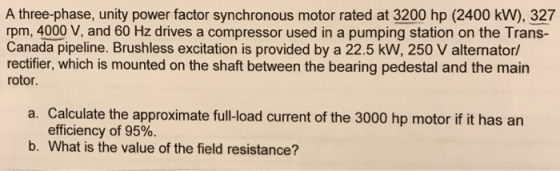

A three-phase, unity power factor synchronous motor rated at 3200 hp (2400 kW), 327 rpm, 4000 V, and 60 Hz drives a compressor used in a pumping station on the Trans- Canada pipeline. Brushless excitation is provided by a 22.5 kW, 250 V alternator/ rectifier, which is mounted on the shaft between the bearing pedestal and the main rotor. Calculate the approximate fullload current of the 3000 hp motor if it has arn efficiency of 95%. a. b. What is the value of the field resistance?
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Sole iven Thae exut P. 22.5に. Rf

0 0
Add a comment
Know the answer?
Add Answer to:
A three-phase, unity power factor synchronous motor rated at 3200 hp (2400 kW), 327 rpm, 4000...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 7.19 A 1000 kW, 3-phase. 6.6kV, 50 Hz, 6 pole, delta connected unity power factor synchronous...

    7.19 A 1000 kW, 3-phase. 6.6kV, 50 Hz, 6 pole, delta connected unity power factor synchronous motor has following parameters: X= 40 92, R = 0. rated field current = 5 A. Machine is controlled by variable frequency control at a constant (V/f) ratio. Calculate (i) torque and field current for rated armature current, 500 rpm and unity power factor. (ii) armature current and power factor for regenerative braking torque equal to the rated motor torque. 500 rpm and the...

  • Question # 2(25 points) A three phase, 200 hp, 2400 V, 60 Hz, 4 pole, Y connected synchronous mot...

    Question # 2(25 points) A three phase, 200 hp, 2400 V, 60 Hz, 4 pole, Y connected synchronous motor has a reactance of 12 Ω phase and a negligible armature resistance. The motor draws 150 KW at a power angle of-18 Determine a) The synchronous speed of the motor in rpm. (3 points) b) The excitation voltage E. (5 points) c) The line current. (5 points) d) The motor power factor. (3 points) e) The pull-out torque (maximum torque). (3...

  • A 1500 kW, unity pf, 3-phase, Y-connected, 2300 V-(line), 30 pole, 60 Hz synchronous motor has...

    A 1500 kW, unity pf, 3-phase, Y-connected, 2300 V-(line), 30 pole, 60 Hz synchronous motor has a synchronous reactance of 1.95 22/phase. For this problem all losses may be neglected. a. Compute the max. torque in Nm which this motor can deliver if it is supplied with power from an infinite bus, and if its field excitation is constant at the value which would result in unity (1.0) pf at rated load. b. Now, suppose that the motor is supplied...

  • Q6 A 50 hp 440 V three phase induction motor is used to determine the power...

    Q6 A 50 hp 440 V three phase induction motor is used to determine the power rating of a load. With the load connected to the motor shaft, the input power is 30.5 KW and the stator current is 34.5 A at rated voltage. The blocked rotor test on the motor yields a current of 44.3 A at 52.5 V and a power input of 2.1 kW. When running with no load at rated voltage, the motor takes 16.3 A...

  • A 3-phase, 6,600 V, 6,000 HP, star-connected synchronous motor is to be operated under rated conditions...

    A 3-phase, 6,600 V, 6,000 HP, star-connected synchronous motor is to be operated under rated conditions with full-load and a leading power factor of 0.50. The rotational losses under this conditions are 130 kW and may be taken as constant. The effective resistance and reactance are 0.085 and 2.90 ohms respectively. What is the value of the excitation voltage under this condition?

  • A synchronous generator is driven by a diesel engine to provide electricity to a remote mining operation. The generator is three-phase, Y-connected, 60 Hz, 900 rpm, 600 V, 3300 kW, 4125 kVA, and it has a synchronous reactance of 0.120 Ω per p

    A synchronous  generator  is  driven  by  a  diesel engine  to  provide  electricity to a remote  mining  operation. The  generator  is three-phase, Y-connected, 60 Hz, 900 rpm, 600 V, 3300 kW, 4125 kVA, and it has a synchronous reactance of 0.120 Ω per phase.  Ignore all losses, and assume the machine iron is not saturated.(a)  The generator is set to deliver its rated active power at unity power factorand rated terminal voltage.  Determine:i.  The speed of the diesel engine driving the generator;ii.  The rotor electrical...

  • A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a...

    A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a load at 1710 rpm. The induction motor has the following impedances referred to the stator in /phase: R,=0.1512, X,=0.7512; R2=1.222,X=0.7522; X=25 12 . The core loss is 450 W and friction and windage loss is 250 W. Calculate the following 1. line current and power factor 2. Real and reactive input power 3. Air-gap power 4. Mechanical power and torque developed 5. shaft horse...

  • A 10 hp, 60 Hz, three-phase induction motor is delivering rated power while running at 864...

    A 10 hp, 60 Hz, three-phase induction motor is delivering rated power while running at 864 rpm. The motor is drawing power from a 208 V, three-phase source. DC tests determine: R1 0.2 ? and R2-0.15 ?, we do not know XI and X2. Ignore XM. The rotational and core losses are 200 W and 100 W respectively. Find: a) The output (shaft torque). b) The number of poles. c) The input power and efficiency d) The power factor at...
