Homework Answers
Add Answer to:

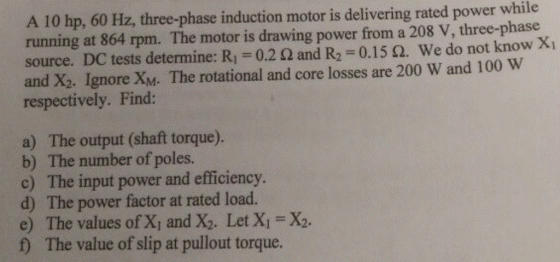

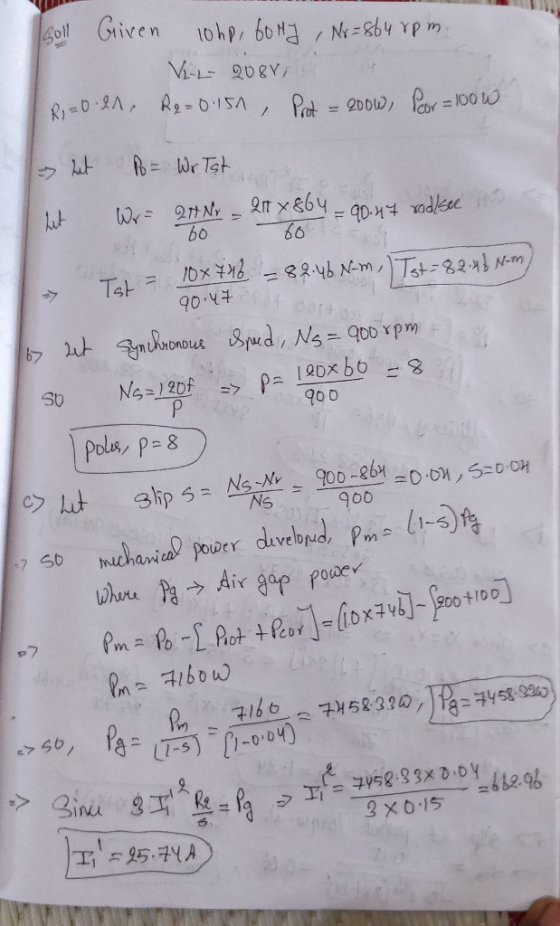

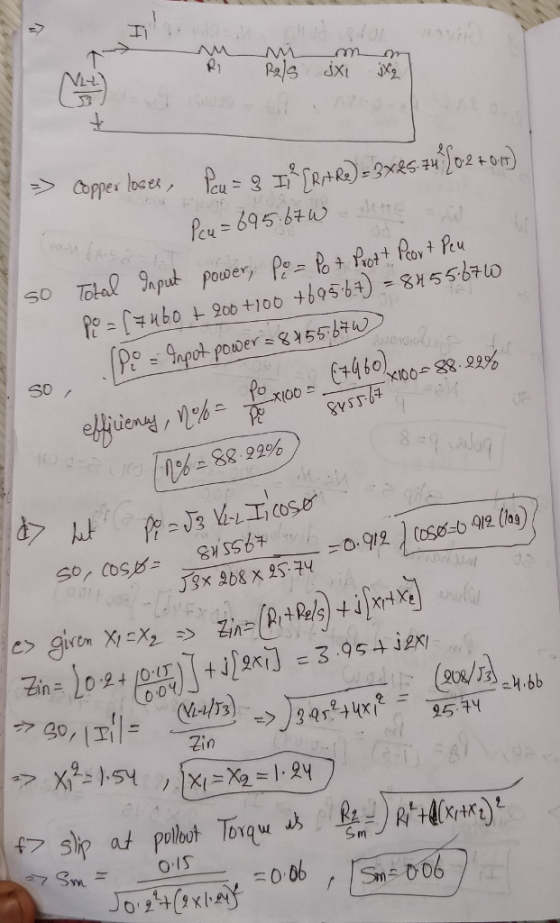

A 10 hp, 60 Hz, three-phase induction motor is delivering rated power while running at 864...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the ...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor has the following equivalent circuit parameters. R1 = 0.2 Ω, , , Xm = 12Ω.The rotational loss is 500 W. For a slip of 5%, calculate (a) The motor speed in rpm and radians per sec (b) The current drawn by the motor from the power supply (c) The stator cu-loss (d) The air gap power (e) The rotor cu-loss (f) The shaft power (g)The developed torque and the shaft torque (h) The efficiency of the motor Use...
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the fo...
Please solve this question. Thank you.
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters, in Ω/phase referred to the stator: R1-0.075, XI 0.17, xm-72, R2-0.065 and X-0.17. Its rated slip is 4%. Assume that the mechanical losses are 1 kW and the core losses are 1.1 kW. Compute: a. The rated input current b. The rated power factor. c. The pullout torque d. The induced and load torques at rated conditions....
A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a...
A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a load at 1710 rpm. The induction motor has the following impedances referred to the stator in /phase: R,=0.1512, X,=0.7512; R2=1.222,X=0.7522; X=25 12 . The core loss is 450 W and friction and windage loss is 250 W. Calculate the following 1. line current and power factor 2. Real and reactive input power 3. Air-gap power 4. Mechanical power and torque developed 5. shaft horse...
A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has t...
A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has the following parameters per phase refereed to the stator. RI : 0.29 Ω , R2 0. 14 Ω , Xi-0.50 Ω , X2-0.20 Ω , Xm-1 0.53 Ω The total windage and core losses can be assumed to be a constant 350 W. If the machine is operating at rated voltage and frequency with a 5.5% slip, find the steady-state: (a) 10pts. Mechanical...
Three-phase induction motor The three-phase induction motor nameplate gives the following informa...
Three-phase induction motor The three-phase induction motor nameplate gives the following information: 100 HP, 6 poles, 600 V, 60 Hz, PF =0.87. Rated motor slip s=0.0275 and rated motor current is 91.7 A. Measured at rated speed friction and ventilation losses are 1100 W. Measured between two motor terminals resistance is 0.305 Ω. f) For a load such where the motor rotates at the speed of 1180 r / min, determine shaft torque and calculate the mechanical power in HP,...
1. A three phase, 60 Hz, 100-hp, 440V, Y-connected induction motor runs at 864 rpm when...
1. A three phase, 60 Hz, 100-hp, 440V, Y-connected induction motor runs at 864 rpm when it operates at rated load. Calculate the following 1. Number of poles of the machine. 2. slip at full load. 3. Rotor frequency. 4. speed of rotor field with respect to the stator. 5. speed of the rotor magnetic field with respect to the stator magnetic rotating field.
Problem # 3: Induction Motor Analysis [30 points] The parameters of the per phase equivalent circuit...
Problem # 3: Induction Motor Analysis [30 points] The parameters of the per phase equivalent circuit of a three phase wye-connected, 220 V (line- line, rms) 10 hp, 60 Hz, six-pole induction motor are given as: Ri = 0.3 Ohm, R2-0.15 Ohm, Xi-0.5 Ohms, X2= 0.2 Ohm, Xm-15.0 The total friction, windage and core losses add up to be a constant of 400 W. For a slip of 0.025 with motor operating at rated frequency and stator voltage, calculate the...
A 25-hp, 208-V, 60-Hz, two-pole, Y-connected induction motor operates at slip of 5% at rated conditions....
A 25-hp, 208-V, 60-Hz, two-pole, Y-connected induction motor operates at slip of 5% at rated conditions. The motor parameters are given in ohms per phase as follows: ??=0.3 ??=0.4 ??=0.1 ??=0.4 ??=25.0 Assume core loss of 150 W and rotational loss of 225 W, Find Stator Current, Electromechanical torque, Power out, Efficiency, Power Factor and PowerFlow Diagram. Use the exact model circuit.
A 2 pole ac induction motor operates on a 480 V three phase power system. The...
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with a full load shaft speed of 3400 rpm. The motor currently operates a 3510 rpm. determine the mechanical power the motor develops in hp using the slip method.
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
Please solve this question. Thank you.
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters, in Ω/phase referred to the stator: R1-0.075, XI 0.17, xm-72, R2-0.065 and X-0.17. Its rated slip is 4%. Assume that the mechanical losses are 1 kW and the core losses are 1.1 kW. Compute: a. The rated input current b. The rated power factor. c. The pullout torque d. The induced and load torques at rated conditions....
A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a load at 1710 rpm. The induction motor has the following impedances referred to the stator in /phase: R,=0.1512, X,=0.7512; R2=1.222,X=0.7522; X=25 12 . The core loss is 450 W and friction and windage loss is 250 W. Calculate the following 1. line current and power factor 2. Real and reactive input power 3. Air-gap power 4. Mechanical power and torque developed 5. shaft horse...
A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has the following parameters per phase refereed to the stator. RI : 0.29 Ω , R2 0. 14 Ω , Xi-0.50 Ω , X2-0.20 Ω , Xm-1 0.53 Ω The total windage and core losses can be assumed to be a constant 350 W. If the machine is operating at rated voltage and frequency with a 5.5% slip, find the steady-state: (a) 10pts. Mechanical...
1. A three phase, 60 Hz, 100-hp, 440V, Y-connected induction motor runs at 864 rpm when it operates at rated load. Calculate the following 1. Number of poles of the machine. 2. slip at full load. 3. Rotor frequency. 4. speed of rotor field with respect to the stator. 5. speed of the rotor magnetic field with respect to the stator magnetic rotating field.
Problem # 3: Induction Motor Analysis [30 points] The parameters of the per phase equivalent circuit of a three phase wye-connected, 220 V (line- line, rms) 10 hp, 60 Hz, six-pole induction motor are given as: Ri = 0.3 Ohm, R2-0.15 Ohm, Xi-0.5 Ohms, X2= 0.2 Ohm, Xm-15.0 The total friction, windage and core losses add up to be a constant of 400 W. For a slip of 0.025 with motor operating at rated frequency and stator voltage, calculate the...
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with a full load shaft speed of 3400 rpm. The motor currently operates a 3510 rpm. determine the mechanical power the motor develops in hp using the slip method.
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with...
