Add Answer to:

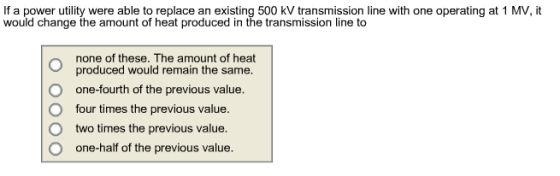

If a power utility were able to replace an existing 500 kV transmission line with one...
A power transmission line carries 500 A of current at a voltage of 840 kV. If...
A power transmission line carries 500 A of current at a voltage of 840 kV. If the line has a resistance of 24 µΩ/m, what is the rate at which energy is being dissipated in 600 km of line?
Phase of a three-phase, 60 Hz, 300 km long power transmission line with a nominal operating...
Phase of a three-phase, 60 Hz, 300 km long power transmission line with a nominal operating line voltage of 500 kV. its inductance per 291 mH/phase, and its capacitance is 3.45uF/phase. Voltage between 500 kV phases from the end of the energy transmission line Under it, a load of 1000 MVA is fed with a power factor of 0.8 back. Power transmission line lossless assumption. This according to the operating conditions, a.) The line's phase constant (61), characteristic impedance (ZC)...
The ABCD constants of a 3-phase, 500 kV transmission line are D 0.98+0.0014j B 4+60j ohm...
The ABCD constants of a 3-phase, 500 kV transmission line are D 0.98+0.0014j B 4+60j ohm C 0.0007j siemens The line delivers 500 MVA at 0.9 leading power factor at 500 kV. Determine the voltage regulation of the line. Select one: a -14.28 % b.-611 % c. 27.14 % d.-3.9099 % O O
Instead of sending power by a 1000 kV, 1000 A transmission line, one desires to beam...
Instead of sending power by a 1000 kV, 1000 A transmission line, one desires to beam this energy via an electromagnetic wave. The beam has a uniform intensity within a cross-sectional area of 60 m. What are the rms values of the electric and the magnetic fields? XkV/m ms Brms
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end volta...
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end voltage is equal to the nominal voltage. a. Determine the maximum active power this line can transmit (5 points) b. Determine the reactance of the line (5 points) c. Using basic equations of circuit analysis, show that the magnitude of the receiving end voltage (VR) is approximately 71%...
The six-bus system shown in Figure 1 will be simulated using MATLAB. Transmission line data and b...
The six-bus system shown in Figure 1 will be simulated using MATLAB. Transmission line data and bus data are given in Tables 1 and 2 respectively. The transmission line data are calculated on 100 MVA base and 230 (line-to-line) kV base for generator. Tasks: 1. Determine the network admittance matrix Y 2. Find the load flow solution using Gauss-Seidel/Newton Raphson method until first iteration by manual calculation. Use Maltab software to solve power flow problem using Gauss-Seidel method. Find the...
A business wants to reduce its energy use. One option is to replace ten existing 50...
A business wants to reduce its energy use. One option is to replace ten existing 50 watt fluorescent lights with ten new, 8 watt LED lights that provide the same amount and quality of lighting. The lights are used 12 hours per day, 250 days per year. The cost of electricity is $0.2/kWh. Each LED light costs $1 Assume the new lights last 10 years and that the time frame of the analysis is 10 years. Assume that the electricity...
Fig Qshows the one-line diagram of a three-phase power system. As shown in Fig. Q3. the...
Fig Qshows the one-line diagram of a three-phase power system.
As shown in Fig. Q3. the two zones are connected by a 400 MVA,
240-kV/24-kV, Ý-A three phase transformer. The Y-A three phase
transfonmer has an equivalent series impedance of ZTH - 1.2 + j1.6n
per phase referred to the high voltage side (primary side). The
three-phase power system can be studied with per unit quantities
using base values of S-500 MVA and 240 kV in zone 1.
By using...
A company is considering building a new and improved production facility for one of its existing...
A company is considering building a new and improved production facility for one of its existing products. It would be built on a piece of vacant land that the firm owns. This land was acquired four years ago at a cost of $500,000; it has a current market value of $800,000. The building can be erected for $600,000. Machinery (equipment) worth $120,000 needs to be bought. The company will finance the construction of the building and the purchase of the...
I need help to solve this questions about Generator Governor Droop and Transmission Line. A complete...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
Phase of a three-phase, 60 Hz, 300 km long power transmission line with a nominal operating line voltage of 500 kV. its inductance per 291 mH/phase, and its capacitance is 3.45uF/phase. Voltage between 500 kV phases from the end of the energy transmission line Under it, a load of 1000 MVA is fed with a power factor of 0.8 back. Power transmission line lossless assumption. This according to the operating conditions, a.) The line's phase constant (61), characteristic impedance (ZC)...
The ABCD constants of a 3-phase, 500 kV transmission line are D 0.98+0.0014j B 4+60j ohm C 0.0007j siemens The line delivers 500 MVA at 0.9 leading power factor at 500 kV. Determine the voltage regulation of the line. Select one: a -14.28 % b.-611 % c. 27.14 % d.-3.9099 % O O
Instead of sending power by a 1000 kV, 1000 A transmission line, one desires to beam this energy via an electromagnetic wave. The beam has a uniform intensity within a cross-sectional area of 60 m. What are the rms values of the electric and the magnetic fields? XkV/m ms Brms
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end voltage is equal to the nominal voltage. a. Determine the maximum active power this line can transmit (5 points) b. Determine the reactance of the line (5 points) c. Using basic equations of circuit analysis, show that the magnitude of the receiving end voltage (VR) is approximately 71%...
The six-bus system shown in Figure 1 will be simulated using MATLAB. Transmission line data and bus data are given in Tables 1 and 2 respectively. The transmission line data are calculated on 100 MVA base and 230 (line-to-line) kV base for generator. Tasks: 1. Determine the network admittance matrix Y 2. Find the load flow solution using Gauss-Seidel/Newton Raphson method until first iteration by manual calculation. Use Maltab software to solve power flow problem using Gauss-Seidel method. Find the...
Fig Qshows the one-line diagram of a three-phase power system.
As shown in Fig. Q3. the two zones are connected by a 400 MVA,
240-kV/24-kV, Ý-A three phase transformer. The Y-A three phase
transfonmer has an equivalent series impedance of ZTH - 1.2 + j1.6n
per phase referred to the high voltage side (primary side). The
three-phase power system can be studied with per unit quantities
using base values of S-500 MVA and 240 kV in zone 1.
By using...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
