Homework Answers

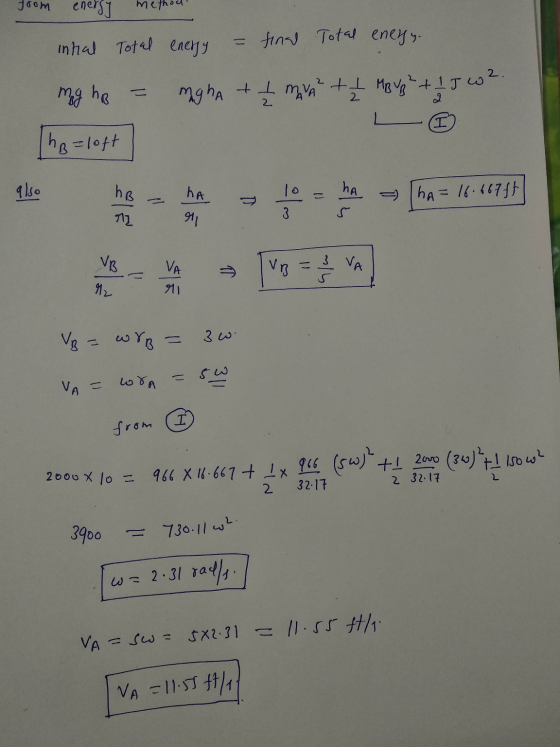

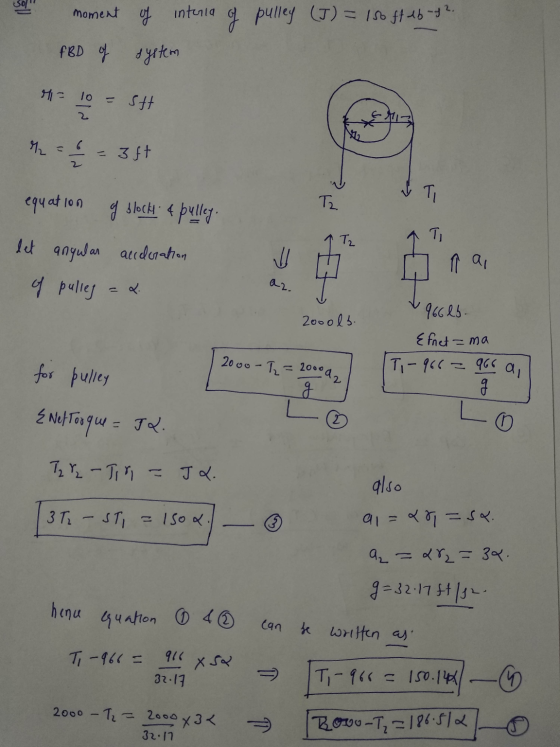

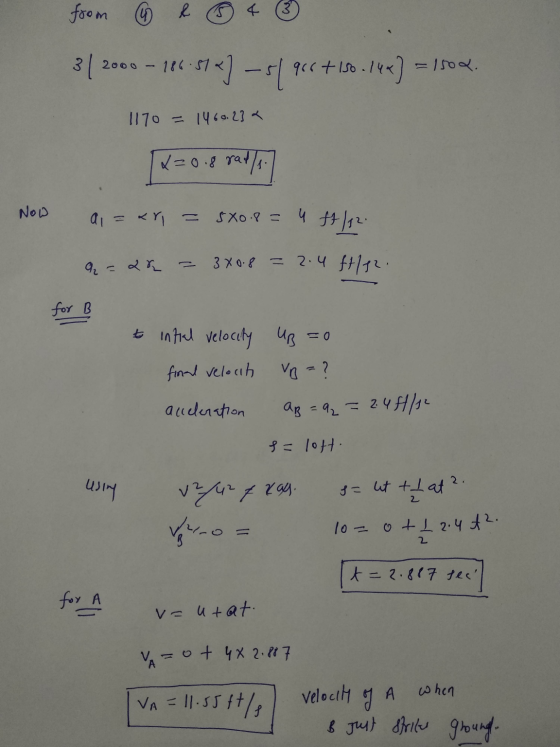

Question has been solved by both energy and Newton method...
Add Answer to:

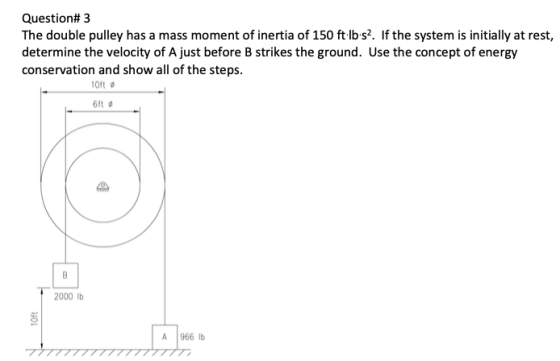

Question#3 The double pulley has a mass moment of inertia of 150 ft·lb-s2. If the system...
Each of the double pulleys shown has a centroidal mass moment of inertia of 0.25 kg.m?,...
Each of the double pulleys shown has a centroidal mass moment of inertia of 0.25 kg.m?, an inner radius of 100 mm, and an outer radius of 150 mm. The mass m = 10 kg and the bearing friction is neglected. B A с m Determine the velocity of the cylinder 3 s after the system is released from rest. (Round the final answer to two decimal places.) (You must provide an answer before moving to the next part.) The...
Each of the double pulleys shown has a centroidal mass moment of inertia of 0.25 kg-m?,...
Each of the double pulleys shown has a centroidal mass moment of inertia of 0.25 kg-m?, an inner radius of 100 mm, and an outer radius of 150 mm. The mass m= 10.7 kg and the bearing friction is neglected. W B А с m 8 Required information Determine the velocity of the cylinder 3 s after the system is released from rest. (Round the final answer to two decimal places.) (You must provide an answer before moving to the...
A mass m hangs on the end of a cord around a pulley of radius a and moment of inertia I, rotating...
A mass m hangs on the end of a cord around a pulley of radius a
and moment of inertia I, rotating
with an angular velocity w, as shown in the figure below. The rim
of the pulley is attached to a
spring (with constant k). Assume small oscillations so that the
spring remains essentially
horizontal and neglect friction so that the conservation of energy
of the system yields:
1/2mv^2 +1/2Iw^2+1/2kx^2-mgx=C,
where w=v/a, C=const, x+displacement from equilibrium
Find the natural...
3) A 10dm diameter pulley of moment of inertia 8.00x10 kg m2 has weights attached by...
3) A 10dm diameter pulley of moment of inertia 8.00x10 kg m2 has weights attached by strings to it on either side and one exerts a force of-10.0 N k on it at a position -8 cm i and the other exerts a force of -20.0 N k on it at a position +8 cm i. The pulley was initially at rest and these torques and no others act on it for 200 milliseconds. What is the angular velocity of...
Each of the double pulleys shown has a centroidal mass moment of inertia of 0.25 kg...
Each of the double pulleys shown has a centroidal mass moment of inertia of 0.25 kg m?, an inner radius of 100 mm, and an outer radius of 150 mm. The mass 14.9 kg and the bearing friction is neglected bo Required into 00 Determine the velocity of the cylinder 3 s after the system is released from rest (Round the final answer to two decimal places) (You must provide an answer before moving to the next part) The velocity...
Question 11 1 pts A mass is attached to a pulley. The pulley has moment of...
Question 11 1 pts A mass is attached to a pulley. The pulley has moment of inertia 3.5 kg•m2. The radius of the pulley is 0.5 m. The mass hanging over the pulley is 1.0 kg. Assume the mass will fall without slipping, calculate the distance it would fall in 0.5 s. Assume the system started from rest.
Each of the double pulleys shown has a centro del mass moment of inertia of 0.25...
Each of the double pulleys shown has a centro del mass moment of inertia of 0.25 kg man inner radius of 100 mm, and an outer radius of 50 mm. The mass 107 kg and the bearing biction is neglected 8. Required information Determine the velocity of the cylinder 3 s after the system is released from rost. (Round the final answer to two decimal places) (You must provide an answer before moving to the next part.) The velocity of...
Two masses, mA = 34.0 kg and mB = 40.0 kg , are connected by a...
Two masses, mA = 34.0 kg and mB = 40.0 kg , are connected by a
rope that hangs over a pulley (as in the figure (Figure 1)). The
center of the pulley is hollowed out so that you may assume all the
mass of the pulley is in the rim. The radius of the pulley is 0.381
m and the mass of the pulley is 3.10 kg . Initially mA is on the
ground and mB rests 2.50 m...
1. The pulley has a radius of 2.70 m and a moment of inertia of 39.0...
1. The pulley has a radius of 2.70 m and a moment of inertia of 39.0 kg·m2. The hanging mass is 4.20 kg and it exerts a force tangent to the edge of the pulley. What is the angular acceleration of the pulley? (answer needed in rad/s^2 2. A string is wound tight around the spindle of a top, and then pulled to spin the top. While it is pulled, the string exerts a constant torque of 0.150 N·m on...
3 (15 points) The pulley in the figure has radius R and a moment of inertia I. The rope does not slip over the pulley,...
3 (15 points) The pulley in the figure has radius R and a moment of inertia I. The rope does not slip over the pulley, and the pulley spins on a frictionless axle. The system is released from rest, and the block descends. Block A has mass my, and block B ha mass mg. Use energy methods to calculate the speed of block B as a function of the distance d that it has descended. Your answer may contain R,...
Each of the double pulleys shown has a centroidal mass moment of inertia of 0.25 kg.m?, an inner radius of 100 mm, and an outer radius of 150 mm. The mass m = 10 kg and the bearing friction is neglected. B A с m Determine the velocity of the cylinder 3 s after the system is released from rest. (Round the final answer to two decimal places.) (You must provide an answer before moving to the next part.) The...
Each of the double pulleys shown has a centroidal mass moment of inertia of 0.25 kg-m?, an inner radius of 100 mm, and an outer radius of 150 mm. The mass m= 10.7 kg and the bearing friction is neglected. W B А с m 8 Required information Determine the velocity of the cylinder 3 s after the system is released from rest. (Round the final answer to two decimal places.) (You must provide an answer before moving to the...
A mass m hangs on the end of a cord around a pulley of radius a
and moment of inertia I, rotating
with an angular velocity w, as shown in the figure below. The rim
of the pulley is attached to a
spring (with constant k). Assume small oscillations so that the
spring remains essentially
horizontal and neglect friction so that the conservation of energy
of the system yields:
1/2mv^2 +1/2Iw^2+1/2kx^2-mgx=C,
where w=v/a, C=const, x+displacement from equilibrium
Find the natural...
Each of the double pulleys shown has a centroidal mass moment of inertia of 0.25 kg m?, an inner radius of 100 mm, and an outer radius of 150 mm. The mass 14.9 kg and the bearing friction is neglected bo Required into 00 Determine the velocity of the cylinder 3 s after the system is released from rest (Round the final answer to two decimal places) (You must provide an answer before moving to the next part) The velocity...
Question 11 1 pts A mass is attached to a pulley. The pulley has moment of inertia 3.5 kg•m2. The radius of the pulley is 0.5 m. The mass hanging over the pulley is 1.0 kg. Assume the mass will fall without slipping, calculate the distance it would fall in 0.5 s. Assume the system started from rest.
Each of the double pulleys shown has a centro del mass moment of inertia of 0.25 kg man inner radius of 100 mm, and an outer radius of 50 mm. The mass 107 kg and the bearing biction is neglected 8. Required information Determine the velocity of the cylinder 3 s after the system is released from rost. (Round the final answer to two decimal places) (You must provide an answer before moving to the next part.) The velocity of...
Two masses, mA = 34.0 kg and mB = 40.0 kg , are connected by a
rope that hangs over a pulley (as in the figure (Figure 1)). The
center of the pulley is hollowed out so that you may assume all the
mass of the pulley is in the rim. The radius of the pulley is 0.381
m and the mass of the pulley is 3.10 kg . Initially mA is on the
ground and mB rests 2.50 m...
3 (15 points) The pulley in the figure has radius R and a moment of inertia I. The rope does not slip over the pulley, and the pulley spins on a frictionless axle. The system is released from rest, and the block descends. Block A has mass my, and block B ha mass mg. Use energy methods to calculate the speed of block B as a function of the distance d that it has descended. Your answer may contain R,...
