3) A 10dm diameter pulley of moment of inertia 8.00x10 kg m2 has weights attached by...

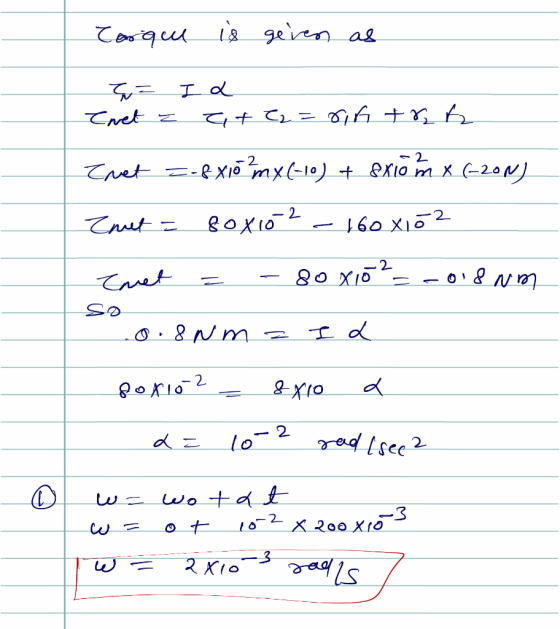

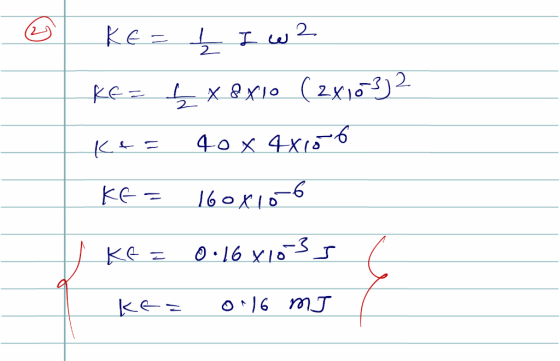

3) A 10dm diameter pulley of moment of inertia 8.00x10 kg m2 has weights attached by strings to it on either side and one exerts a force of-10.0 N k on it at a position -8 cm i and the other exerts a force of -20.0 N k on it at a position +8 cm i. The pulley was initially at rest and these torques and no others act on it for 200 milliseconds. What is the angular velocity of the pulley at the end of the 200 milliseconds? What is the rotational kinetic energy of the pulley in (3) at the end of the 200 milliseconds?
Homework Answers
