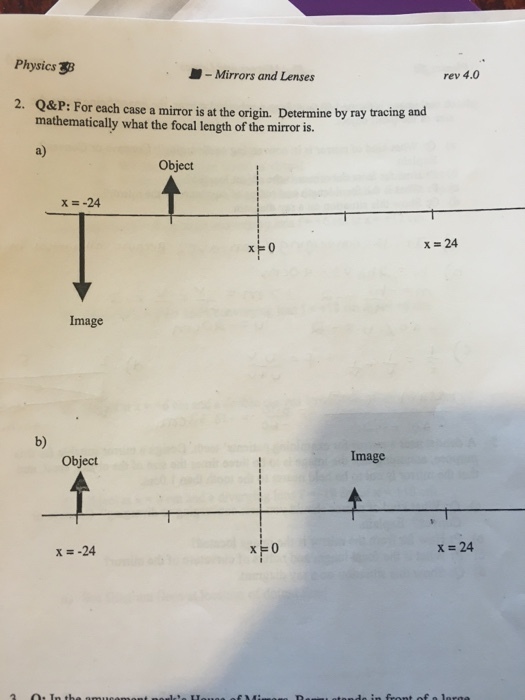

For each case a mirror is at origin. Determine by ray tracing and mathematically what the...
To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray...
To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray tracing is a pictorial method for understanding image formation when lenses or mirrors are used. It consists in locating the image by the use of just three "special rays." The following Tactics Box explains this procedure for the case of a convex mirror. The diagram below shows the situation described in the problem. The focal length of the mirror is labeled f the scale...
A convex mirror with a focal length of -3m is sitting 5m from a bookshelf. a. Draw a ray tracing diagram to find where...
A convex mirror with a focal length of -3m is sitting 5m from a bookshelf. a. Draw a ray tracing diagram to find where the image is. b. Use the mirror equation to check your result and to find where the image will be if the bookshelf is 2m away. c. Repeat a and b with a converging lens with a focal length of 4m.
Used scaled ray tracing for the following scenarios and find the distance to the image, whether...
Used scaled ray tracing for the following scenarios and find the
distance to the image, whether the image is upright or inverted,
and whether the image is larger or smaller than the object. a. An
object is 30 in front of a concave mirror with a focal length of 10
. b. An object is 14 in front of a concave mirror with a focal
length of 20 . c. An object is 70 in front of a convex mirror...
Problem 23.37 PartA Constants | Periodic Table Use ray tracing to determine the position of the...
Problem 23.37 PartA Constants | Periodic Table Use ray tracing to determine the position of the image. Express your answer to two significant figures and include the appropriate units An object is 28 cm in front of a convex mirror with a focal length of -19 cm dValue Units Submit Part B Is the image upright or inverted? O The image is inverted. The image is upright
PHYS 203 Name: Ray Tracing Name: Work in pairs. Turn in one copy per pair Part A: Ray Tracing (18 pts) For each of the following situations, draw the three principle rays and find the image. M...
PHYS 203 Name: Ray Tracing Name: Work in pairs. Turn in one copy per pair Part A: Ray Tracing (18 pts) For each of the following situations, draw the three principle rays and find the image. Measure, f.p. q. h and h and label them below (1 "large box" 1.0 cm). Indicate whether the image is: - real or virtual upright or inverted - enlarged or reduced - in front or behind the mirrorlens No pens allowed. Draw this in...
An object is 16 cm in front of a convex mirror. The mirror creates an image that is 55 % as tall as the object. Use ray tracing to find the distance of the focal point from the mirror. Express your an...
An object is 16 cm in front of a convex mirror. The mirror creates an image that is 55 % as tall as the object. Use ray tracing to find the distance of the focal point from the mirror. Express your answer to two significant figures and include the appropriate units. f =
Perform a ray tracing on the object and converging mirror in the figure below. Use that...
Perform a ray tracing on the object
and converging mirror in the figure below. Use that ray tracing to
draw the image in its proper location. Is the image
REAL
VIRTUAL
UPRIGHT
INVERTED
MAGNIFIED REDUCED
A concave cosmetic mirror has a focal length of 26 cm . A 5.0-cm-long mascara brush...
A concave cosmetic mirror has a focal length of 26 cm . A 5.0-cm-long mascara brush is held upright 13 cm from the mirror. Use ray tracing to determine the location of its image. What is the height of the image? Use ray tracing to determine. Is the image upright or inverted? Is it real or virtual?
Figure P18.5 shows an object O in front of a plane mirror. Use ray tracing to...
Figure P18.5 shows an object O in front of a plane mirror. Use ray tracing to determine from which locations A-D the object's image is visible.
A concave cosmetic mirror has a focal length of 36 cm . A 2.0-cm-long mascara brush...
A concave cosmetic mirror has a focal length of 36 cm . A 2.0-cm-long mascara brush is held upright 18 cm from the mirror. Use ray tracing to determine the location of its image. How far is the image from the mirror? Input positive value if the image is on the same side from the mirror as an object and negative if the image is on the other side. What is the height of the image? Use ray tracing to...
To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray tracing is a pictorial method for understanding image formation when lenses or mirrors are used. It consists in locating the image by the use of just three "special rays." The following Tactics Box explains this procedure for the case of a convex mirror. The diagram below shows the situation described in the problem. The focal length of the mirror is labeled f the scale...
Used scaled ray tracing for the following scenarios and find the
distance to the image, whether the image is upright or inverted,
and whether the image is larger or smaller than the object. a. An
object is 30 in front of a concave mirror with a focal length of 10
. b. An object is 14 in front of a concave mirror with a focal
length of 20 . c. An object is 70 in front of a convex mirror...
Problem 23.37 PartA Constants | Periodic Table Use ray tracing to determine the position of the image. Express your answer to two significant figures and include the appropriate units An object is 28 cm in front of a convex mirror with a focal length of -19 cm dValue Units Submit Part B Is the image upright or inverted? O The image is inverted. The image is upright
PHYS 203 Name: Ray Tracing Name: Work in pairs. Turn in one copy per pair Part A: Ray Tracing (18 pts) For each of the following situations, draw the three principle rays and find the image. Measure, f.p. q. h and h and label them below (1 "large box" 1.0 cm). Indicate whether the image is: - real or virtual upright or inverted - enlarged or reduced - in front or behind the mirrorlens No pens allowed. Draw this in...
Perform a ray tracing on the object
and converging mirror in the figure below. Use that ray tracing to
draw the image in its proper location. Is the image
REAL
VIRTUAL
UPRIGHT
INVERTED
MAGNIFIED REDUCED
Figure P18.5 shows an object O in front of a plane mirror. Use ray tracing to determine from which locations A-D the object's image is visible.
