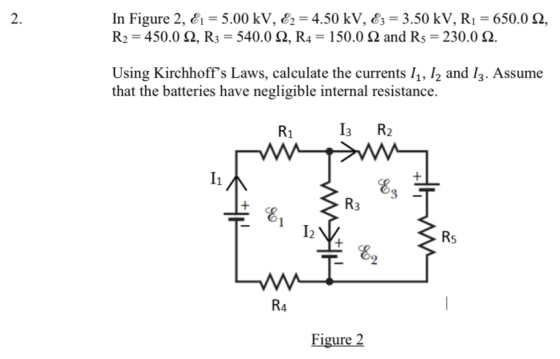

Using Kirchhoff’s Laws, calculate the currents ?1, ?2 and ?3. Assume that the batteries have negligible internal resistance.
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
Add Answer to:
Using Kirchhoff’s Laws, calculate the currents ?1, ?2 and ?3. Assume that the batteries have negligible internal resistance.
In the circuit in the figure below, the batteries have negligible internal resistance.
In the circuit in the figure below, the batteries have negligible internal resistance. (Take R1=2.95 Ω, R2=3.80 Ω, and R3=6.80 Ω ).(a) Find the magnitude of the current in each resistor.(b) Find the magnitude of the potential difference between points a and b.(c) Find the power supplied by each battery.
Part A In the circuit shown in (Figure 1) the batteries have negligible internal resistance and...
In the circuit shown in (Figure 1) the batteries have negligible internal resistance and the meters are both idealized. With the switch S open, the voltmeter reads 11.0 V.For related problem solving tips and strategies, you may want to view a Video Tutor Solution of A complex network.Part AFind the emf ε of the battery.Part BWhat will the ammeter read when the switch is closed?
2. In the following figure both batteries have negligible internal resistance and the ammeter reads a...
2. In the following figure both batteries have negligible
internal resistance and the ammeter reads a current of 2.50 A in
the direction shown. Find the emf of the battery. Is the polarity
indicated correct?
2 En la siguiente figura ambas baterias tienen resistencia interna insignificante y el amperimetro lee una corriente de 2.50 A en el sentido que se ilustra. Encuentre la fem de la batería. ¿Es correcta la polaridad que se indica? 12.0 (2 上 48.0 15.0 75.0...
2. The following figure both batteries have negligible internal resistance and the ammeter reads a stream...
2. The following figure both batteries have negligible internal
resistance and the ammeter reads a stream of 2.50 in the sense that
it illustrates. Find EMF of the battery polarity indicated is
correct?
12.0 Ω 上 48.0 15.0 (2 75.0 V
In the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 =...
In the circuit in the figure below, the batteries have
negligible internal resistance. (Take R1 = 2.15
Ω, R2 = 4.35 Ω, and R3=
7.00 Ω.)
(a) Find the magnitude of the current in each resistor.
I2.15Ω
= A
I4.35Ω
= A
I7.00Ω
= A
(b) Find the magnitude of the potential difference between
points a and b.
V
(c) Find the power supplied by each battery.
left battery
W
right battery
W
12.0 V R3 12.0 V
In the circuit in the figure below, the batteries have negligible internal resistance. (Take R_1 =...
In the circuit in the figure below, the batteries have negligible internal resistance. (Take R_1 = 2.40 Ohm, R_2 = 4.35 Ohm, and R_3 = 5.80 Ohm. Find the magnitude of the current in each resistor. Find the magnitude of the potential difference between points a and b. Find the power supplied by each battery. left battery right battery
in the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 2.25...
in the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 2.25 Ω. R2-4.50 Ω, and R.-6.80 .) 120 V R, 12.0 V (a) Find the magnitude of the current in each resistor 12.25Ω = 14.son = 6.80n = (b) Find the magnitude of the potential difference between points a and b (c) Find the power supplied by each battery. left battery right battery eBook
In the circuit shown in the figure (Figure 1) the batteries have negligible internal resistance and the meters are both idealized.
In the circuit shown in the figure (Figure 1) the batteries have negligible internal resistance and the meters are both idealized. With the switch S open, the voltmeter reads 13.0 V. Find the emf epsilon of the battery. What will the ammeter read when the switch is closed?
1) The batteries in the figure below have negligible internal resistance. R9- 120 R2-70 Ie a)...
1) The batteries in the figure below have negligible internal resistance. R9- 120 R2-70 Ie a) For the following multi-battery circuit- set up the equations you need to solve for the currents in each resistor. You should NOT solve the equations, but you need to have the correct numbers and signs in your equations (ex: 12-2A+491,0), along wth the variables for the currents. Be sure to label your currents on the diagram. ISince there are three currents, you should end...
Identical batteries with negligible internal resistance are connected in different arrangements to the same light bulb,...
Identical batteries with negligible internal resistance are connected in different arrangements to the same light bulb, as shown in the figure. For which arrangement will the bulb be the brightest? On A B C OB
In the circuit in the figure below, the batteries have negligible internal resistance. (Take R1=2.95 Ω, R2=3.80 Ω, and R3=6.80 Ω ).(a) Find the magnitude of the current in each resistor.(b) Find the magnitude of the potential difference between points a and b.(c) Find the power supplied by each battery.
2. In the following figure both batteries have negligible
internal resistance and the ammeter reads a current of 2.50 A in
the direction shown. Find the emf of the battery. Is the polarity
indicated correct?
2 En la siguiente figura ambas baterias tienen resistencia interna insignificante y el amperimetro lee una corriente de 2.50 A en el sentido que se ilustra. Encuentre la fem de la batería. ¿Es correcta la polaridad que se indica? 12.0 (2 上 48.0 15.0 75.0...
2. The following figure both batteries have negligible internal
resistance and the ammeter reads a stream of 2.50 in the sense that
it illustrates. Find EMF of the battery polarity indicated is
correct?
12.0 Ω 上 48.0 15.0 (2 75.0 V
In the circuit in the figure below, the batteries have
negligible internal resistance. (Take R1 = 2.15
Ω, R2 = 4.35 Ω, and R3=
7.00 Ω.)
(a) Find the magnitude of the current in each resistor.
I2.15Ω
= A
I4.35Ω
= A
I7.00Ω
= A
(b) Find the magnitude of the potential difference between
points a and b.
V
(c) Find the power supplied by each battery.
left battery
W
right battery
W
12.0 V R3 12.0 V
In the circuit in the figure below, the batteries have negligible internal resistance. (Take R_1 = 2.40 Ohm, R_2 = 4.35 Ohm, and R_3 = 5.80 Ohm. Find the magnitude of the current in each resistor. Find the magnitude of the potential difference between points a and b. Find the power supplied by each battery. left battery right battery
in the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 2.25 Ω. R2-4.50 Ω, and R.-6.80 .) 120 V R, 12.0 V (a) Find the magnitude of the current in each resistor 12.25Ω = 14.son = 6.80n = (b) Find the magnitude of the potential difference between points a and b (c) Find the power supplied by each battery. left battery right battery eBook
1) The batteries in the figure below have negligible internal resistance. R9- 120 R2-70 Ie a) For the following multi-battery circuit- set up the equations you need to solve for the currents in each resistor. You should NOT solve the equations, but you need to have the correct numbers and signs in your equations (ex: 12-2A+491,0), along wth the variables for the currents. Be sure to label your currents on the diagram. ISince there are three currents, you should end...
Identical batteries with negligible internal resistance are connected in different arrangements to the same light bulb, as shown in the figure. For which arrangement will the bulb be the brightest? On A B C OB
