A finite potential well has depth U0=5.5 eV. In the well, there is an electron with...

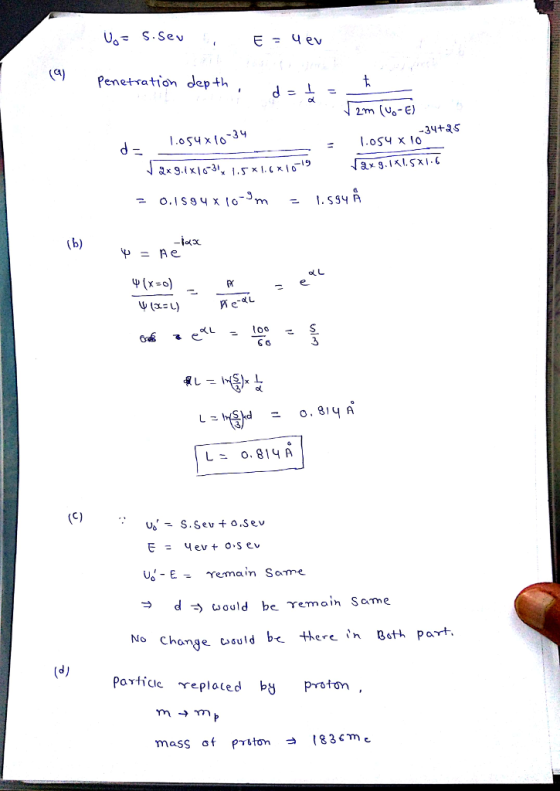

A finite potential well has depth U0=5.5 eV. In the well, there is an electron with energy of 4.0 eV.
a. What is the penetration distance of such electron?
b. At what distance into the wall has the amplitude of the wave function decreased to 60% of the value at the edge of the potential well?
c. If the depth of the well and the energy of the electron both increase by 0.5 eV, will the results for the question (a) and (b) change? Why or Why not?

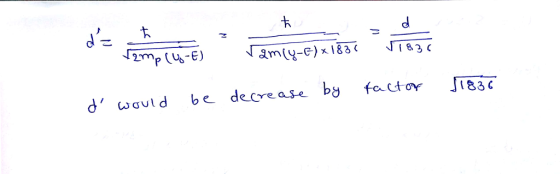

d. If the particle is a proton instead of electron, will the penetration distance increase or decrease? Explain.
Homework Answers
Add Answer to:
A finite potential well has depth U0=5.5 eV. In the well, there
is an electron with...
A finite potential well has depth U0 = 2.78 eV . What is the penetration distance...
A finite potential well has depth U0 = 2.78 eV . What is the penetration distance for an electron with energy (a) 0.540 eV , (b) 0.930 eV , and (c) 1.78 eV ?
The energy of an electron in a 1.90-eV-deep potential well is 1.50 eV. At what distance into the ...
The energy of an electron in a 1.90-eV-deep potential well is 1.50 eV. At what distance into the classically forbidden region has the amplitude of the wave function decreased to 29.0 % of its value at the edge of the potential well?
The energy of an electron in a 2.25-eV-deep potential well is 1.50 eV.At what distance into...
The energy of an electron in a 2.25-eV-deep potential well is 1.50 eV.At what distance into the classically forbidden region has the amplitude of the wave function decreased to 27.0 % of its value at the edge of the potential well?
An electron is bound in the ground state of a finite square well with U0 =...
An electron is bound in the ground state of a finite square well with U0 = 73 eV. (a) How much energy is required to free the electron from the well if the ground-state energy is 2.6 eV? eV (b) If this transition is accomplished through the absorption of one photon of light, what is the maximum wavelength of that photon? m
An electron with total energy E = 0.1 eV is trappped in a finite square well...
An electron with total energy E = 0.1 eV is trappped in a finite square well of height 20 eV, except for the region 0 < x < 2 nm. What is the penetration depth into the classically forbbidden region x<0?
1. An electron in a finite well An electron is in a finite square well that is 20 eV deep and 0.2...
1. An electron in a finite well An electron is in a finite square well that is 20 eV deep and 0.25 nm wide. You may use all results from class/textbook without re-deriving therm A. (2 pts) By graphing both sides of the quantization condition like we did in class, determine how many bound energy eigenstates exist for this well. Don't forget that there are two quantization conditions, one for the even solutions, and one for the odd solutions! B....
[Finite potential well] Consider a symmetric square well potential of a finite depth, i.e., V(x) =...
[Finite potential well] Consider a symmetric square well potential of a finite depth, i.e., V(x) = 0 inside the well, V(x) = V outside the well. NOTE: for a general discontinuous potential the boundary conditions are the continuity of both the wave function and its first derivative at the point(s) of the discontinuity of the potential y (x_)=y(x),y'(x_)=y'(x4) (i) What are the functional forms of the solutions for y(x) inside and outside the well? (ii) What are the explicit continuity...
9.5 An electron is located in a spherical well having a radius R=3 nm. The depth of this potential 9.5 well is Vo. Find the bound states energies for Vo 0.5 ev. An electron is located in a sp...
9.5
An electron is located in a spherical well having a radius R=3 nm. The depth of this potential 9.5 well is Vo. Find the bound states energies for Vo 0.5 ev.
An electron is located in a spherical well having a radius R=3 nm. The depth of this potential 9.5 well is Vo. Find the bound states energies for Vo 0.5 ev.
0 Figure 2: The potential barrier setup for Problem 4 4. (10 points) "Burrowing a hole...
0 Figure 2: The potential barrier setup for Problem 4 4. (10 points) "Burrowing a hole in the wall" Some particles of mass m and energy E move from the left to the potential barrier shown in Figure 2 below 0 <0 Uo 20 U(x) where Uo is some positive value (a) (5 points) Write the Time-Independent Schrödinger equations and the physically acceptable general solutions for the wave function (x) in regions I and II as labeled in Figure 2...
Consider a particle of mass in a 10 finite potential well of height V. the domain...
Consider a particle of mass in a 10 finite potential well of height V. the domain – a < x < a. a) Show that solutions for – a < x < a take the form on (x) = A cos(knx) for odd n, and on (x) = A sin(knx) for even n. . Show a) Match the boundary conditions at x = a to prove that cos(ka) = Bk where k is the wave vector for -a < x...
1. An electron in a finite well An electron is in a finite square well that is 20 eV deep and 0.25 nm wide. You may use all results from class/textbook without re-deriving therm A. (2 pts) By graphing both sides of the quantization condition like we did in class, determine how many bound energy eigenstates exist for this well. Don't forget that there are two quantization conditions, one for the even solutions, and one for the odd solutions! B....
[Finite potential well] Consider a symmetric square well potential of a finite depth, i.e., V(x) = 0 inside the well, V(x) = V outside the well. NOTE: for a general discontinuous potential the boundary conditions are the continuity of both the wave function and its first derivative at the point(s) of the discontinuity of the potential y (x_)=y(x),y'(x_)=y'(x4) (i) What are the functional forms of the solutions for y(x) inside and outside the well? (ii) What are the explicit continuity...
9.5
An electron is located in a spherical well having a radius R=3 nm. The depth of this potential 9.5 well is Vo. Find the bound states energies for Vo 0.5 ev.
An electron is located in a spherical well having a radius R=3 nm. The depth of this potential 9.5 well is Vo. Find the bound states energies for Vo 0.5 ev.
0 Figure 2: The potential barrier setup for Problem 4 4. (10 points) "Burrowing a hole in the wall" Some particles of mass m and energy E move from the left to the potential barrier shown in Figure 2 below 0 <0 Uo 20 U(x) where Uo is some positive value (a) (5 points) Write the Time-Independent Schrödinger equations and the physically acceptable general solutions for the wave function (x) in regions I and II as labeled in Figure 2...
Consider a particle of mass in a 10 finite potential well of height V. the domain – a < x < a. a) Show that solutions for – a < x < a take the form on (x) = A cos(knx) for odd n, and on (x) = A sin(knx) for even n. . Show a) Match the boundary conditions at x = a to prove that cos(ka) = Bk where k is the wave vector for -a < x...
