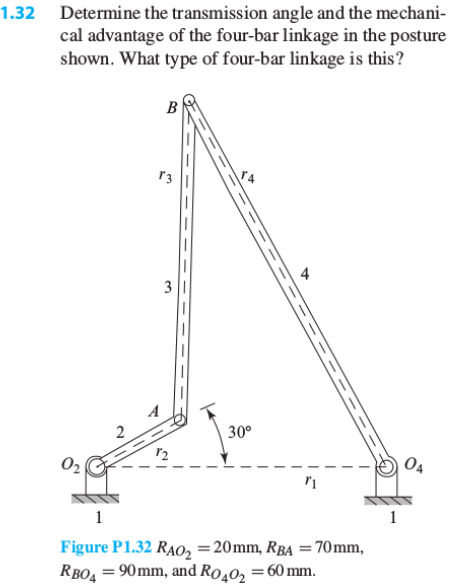

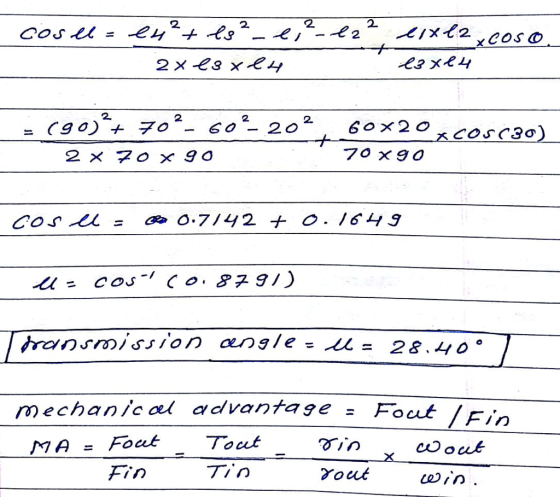

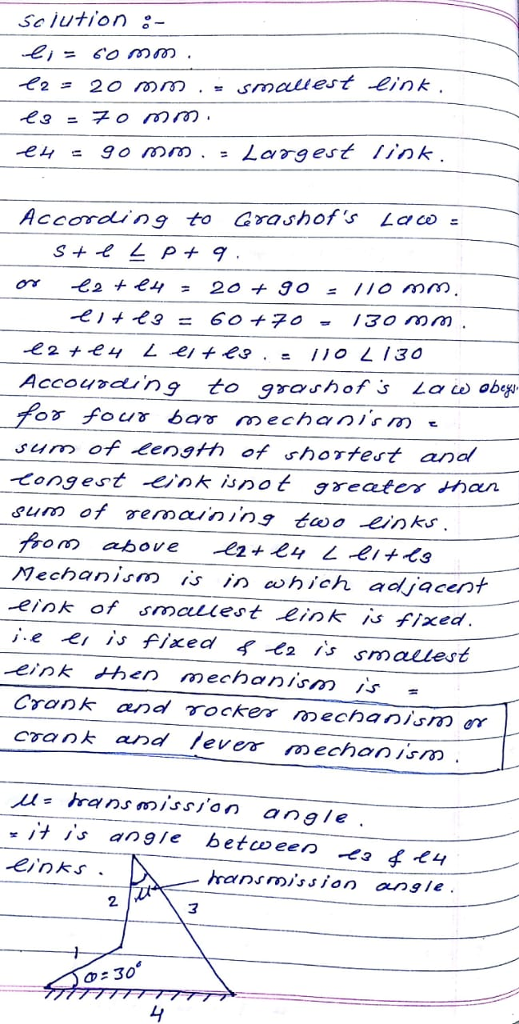

1.32 Determine the transmission angle and the mechani cal advantage of the four-bar linkage in the...
For the four bar linkage mechanism shown in the figure, determine all angles,the maximum and minimum...
For the four bar linkage mechanism shown in the
figure, determine all angles,the maximum and minimum transmission
angles,the sweep angle, and the angular velocities of elements AB
and O4B, if element O2A rotates at 3 rad/a CCW
Problem 1. For the four-bar linkage mechanism shown in the figure, determine all angles, the maximum and minimum transmission angles, the sweep angle, and the angular velocities of elements AB and O.B, if element O, A rotates at 3 rad/s CCW. 10" 03...
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Dete...
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Determine: I) Angular velocities of link 3 2) Angular velocities of link 4 3) Velocity of point P 0.356 0.950 / 0.785 0.544 o: VBA 43 VA 02 04
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Determine: I) Angular velocities of link 3 2) Angular velocities of link 4 3) Velocity of point...
Problem 1. For the four-bar linkage mechanism shown in the figure, determine all angles, the maximum...
Problem 1. For the four-bar linkage mechanism shown in the figure, determine all angles, the maximum and minimum transmission angles, the sweep angle, and the angular velocities of elements AB and 04B, if element O2A rotates at 3 rad/s CCW. B 10" B 03 26" А 13 3 A 12 / 2 4 74 ф 04 10" 8" 8" 02 AC 02 6" 24" 404
Q3. 1 Figure Q3 For the four bar linkage shown in Figure Q3, assume the diagram...
Q3. 1 Figure Q3 For the four bar linkage shown in Figure Q3, assume the diagram is drawn to scale and that crank link 2 has a length of 0.2m and an angular velocity of 20rad/s clockwise driven by an input torque of 5Nm. a) Find the positions with respect to the crank origin at A of the instant centre of velocity between the coupler link 3 and the ground link 1 and between the crank link 2 and the...
Figure 8 (c) Figure 9 illustrates a four-bar linkage mechanism that is used to operate a...
Figure 8 (c) Figure 9 illustrates a four-bar linkage mechanism that is used to operate a washing system on a vegetable harvesting line. The mechanism consists of a crank OA which moves in a limited arc and an L-shaped connecting rod AB which tilts a large bucket of water DB onto the vegetables. The crank rotates with a constant angular velocity wOA = 4x rad/s. For the instant shown with the crank vertical and the angle 8 = 30° determine...
matics: Chapter 4- Kinematics of Rigid Bodies Example Problem 4.3-5 Consider the four-bar linkage shown is...
matics: Chapter 4- Kinematics of Rigid Bodies Example Problem 4.3-5 Consider the four-bar linkage shown is being 4 rads, determine the velocity of point p BC and the angular velocity of link AB at in instant shown. driven with an angular velo of AB at the P on 30 cm 30 cm 4 rads Given: 50 cm ,
plz solve the last two parts c and d Q3. The four bar linkage mechanism as...
plz solve the last two parts c and d
Q3. The four bar linkage mechanism as shown in Figure 3 has two hydraulic cylinders controlling the motion of the connecting rods A and C so that they can only move in the vertical direction. At this instance, the distance y is 150 mm, A has an upwards velocity of 4 m/s and C has a downwards velocity of 3 m/s. Using a carefully drawn scaled velocity and acceleration diagram, (scale:...
yes, which the data for the experiment is given in the pictures Problem #1 Use this...
yes, which the data for the experiment is given in the
pictures
Problem #1 Use this data to calculate Ksp of Ca(OH)2. The Ca(OH) used was 15.0 ml, titrated with 0.05M HCI DATA TABLE: TITRATION OF THE SUPERNATANT LIQUID Trial 1 Trial 2 Data Volume of CaOH, solution, mL (supernatant liquid) Initial buret reading, mL Final buret reading, mL Volume of HCl required for titration, mL Equivalence point (mL) Average Kop Problem #2 R PPPPPP LABORATORY REPORT YOU MUST SHOW...
Chapter overview 1. Reasons for international trade Resources reasons Economic reasons Other reasons 2. Difference between...
Chapter overview 1. Reasons for international trade Resources reasons Economic reasons Other reasons 2. Difference between international trade and domestic trade More complex context More difficult and risky Higher management skills required 3. Basic concept s relating to international trade Visible trade & invisible trade Favorable trade & unfavorable trade General trade system & special trade system Volume of international trade & quantum of international trade Commodity composition of international trade Geographical composition of international trade Degree / ratio of...
Amazon to Competition: We Will Crush You! Amazon to Employees: We Will Churn You! Globally, Amazon...
Amazon to Competition: We Will Crush You! Amazon to Employees: We Will Churn You! Globally, Amazon is one of the largest and most successful companies in any industry. Technological innovation has contributed to its success, as has its employee acquisition practices, which are exceptionally high. The question is what has allowed this company to thrive and maintain its success? This activity is important because it shows how companies like Amazon hire based on personality and individual differences. Such companies place...
For the four bar linkage mechanism shown in the
figure, determine all angles,the maximum and minimum transmission
angles,the sweep angle, and the angular velocities of elements AB
and O4B, if element O2A rotates at 3 rad/a CCW
Problem 1. For the four-bar linkage mechanism shown in the figure, determine all angles, the maximum and minimum transmission angles, the sweep angle, and the angular velocities of elements AB and O.B, if element O, A rotates at 3 rad/s CCW. 10" 03...
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Determine: I) Angular velocities of link 3 2) Angular velocities of link 4 3) Velocity of point P 0.356 0.950 / 0.785 0.544 o: VBA 43 VA 02 04
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Determine: I) Angular velocities of link 3 2) Angular velocities of link 4 3) Velocity of point...
Problem 1. For the four-bar linkage mechanism shown in the figure, determine all angles, the maximum and minimum transmission angles, the sweep angle, and the angular velocities of elements AB and 04B, if element O2A rotates at 3 rad/s CCW. B 10" B 03 26" А 13 3 A 12 / 2 4 74 ф 04 10" 8" 8" 02 AC 02 6" 24" 404
Q3. 1 Figure Q3 For the four bar linkage shown in Figure Q3, assume the diagram is drawn to scale and that crank link 2 has a length of 0.2m and an angular velocity of 20rad/s clockwise driven by an input torque of 5Nm. a) Find the positions with respect to the crank origin at A of the instant centre of velocity between the coupler link 3 and the ground link 1 and between the crank link 2 and the...
Figure 8 (c) Figure 9 illustrates a four-bar linkage mechanism that is used to operate a washing system on a vegetable harvesting line. The mechanism consists of a crank OA which moves in a limited arc and an L-shaped connecting rod AB which tilts a large bucket of water DB onto the vegetables. The crank rotates with a constant angular velocity wOA = 4x rad/s. For the instant shown with the crank vertical and the angle 8 = 30° determine...
matics: Chapter 4- Kinematics of Rigid Bodies Example Problem 4.3-5 Consider the four-bar linkage shown is being 4 rads, determine the velocity of point p BC and the angular velocity of link AB at in instant shown. driven with an angular velo of AB at the P on 30 cm 30 cm 4 rads Given: 50 cm ,
plz solve the last two parts c and d
Q3. The four bar linkage mechanism as shown in Figure 3 has two hydraulic cylinders controlling the motion of the connecting rods A and C so that they can only move in the vertical direction. At this instance, the distance y is 150 mm, A has an upwards velocity of 4 m/s and C has a downwards velocity of 3 m/s. Using a carefully drawn scaled velocity and acceleration diagram, (scale:...
yes, which the data for the experiment is given in the
pictures
Problem #1 Use this data to calculate Ksp of Ca(OH)2. The Ca(OH) used was 15.0 ml, titrated with 0.05M HCI DATA TABLE: TITRATION OF THE SUPERNATANT LIQUID Trial 1 Trial 2 Data Volume of CaOH, solution, mL (supernatant liquid) Initial buret reading, mL Final buret reading, mL Volume of HCl required for titration, mL Equivalence point (mL) Average Kop Problem #2 R PPPPPP LABORATORY REPORT YOU MUST SHOW...
