Rankine Theory: An 11-ft-high frictionless wall retains a backfill with = 117 pcf, ’ =...

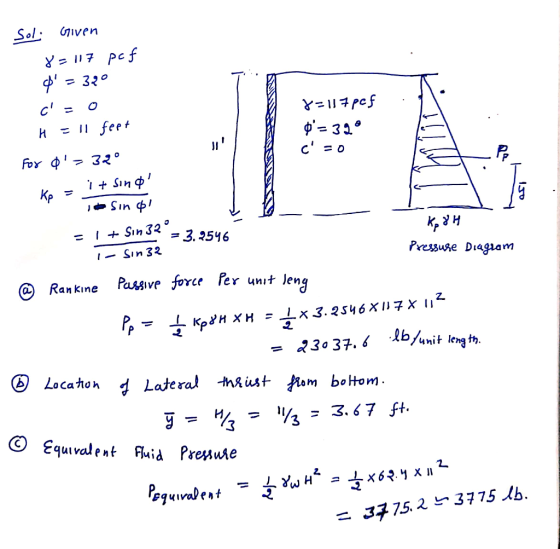

Rankine Theory: An 11-ft-high frictionless wall retains a backfill with = 117 pcf, ’ = 32˚ and c’ = 0. (a) Calculate the Rankine passive force per unit length of wall; (b) Estimate the location of the lateral thrust measured from the bottom of the wall; and (c) Calculate the equivalent fluid pressure for this problem,
Homework Answers
PS: For further help feel
free to contact and please upvote if you like the answer.
Add Answer to:
Rankine Theory: An 11-ft-high frictionless wall retains a
backfill with = 117 pcf, ’ =...
