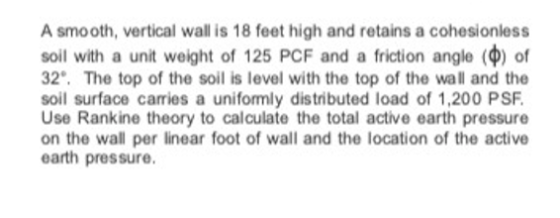

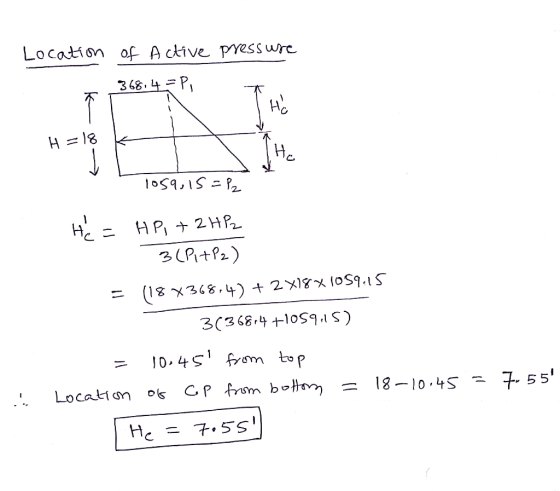

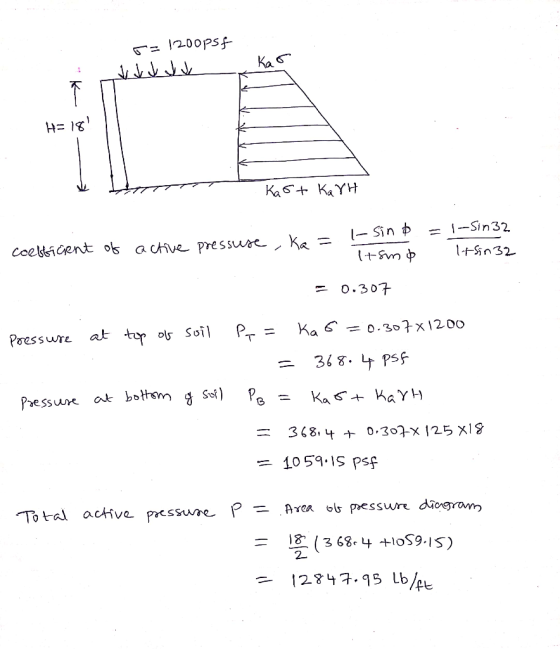

A smooth, vertical wall is 18 feet high and retains a cohesionless soil with a unit...
A retaining wall with a smooth vertical back has to retain a backfill of cohesionless soil...
A retaining wall with a smooth vertical back has to retain a backfill of cohesionless soil upto a height f St above ground level. The.coil has a void ratio of 0.83 and the specific gravity of soil solids is 2.68.The water table is located at a depth of 2m below the top of the backfill. The soil above the water table is 20% saturated. The angle of internal friction of the soil above and below water table is 32 and...
Rankine Theory: An 11-ft-high frictionless wall retains a backfill with = 117 pcf, ’ =...
Rankine Theory: An 11-ft-high frictionless wall retains a backfill with = 117 pcf, ’ = 32˚ and c’ = 0. (a) Calculate the Rankine passive force per unit length of wall; (b) Estimate the location of the lateral thrust measured from the bottom of the wall; and (c) Calculate the equivalent fluid pressure for this problem,
You have to review the design of a cantilevered concrete retaining wall designed for the height a...
You have to review the design of a cantilevered concrete retaining wall designed for the height and soil as shown in the figure. Please check the design and provide your recommendation for the following situation: - 200 psf Surcharge load on top of the backfill material Lean clay at foundation same soil for backfill Dry unit weight of soil Cohesion/adhesion of the clay/concrete Bearing capacity of the soil Active earth pressure coefficient Ignore the effect of ground water table Unit...
2. The water level behind the wall described in problem 1 rises to an elevation I...
2. The water level behind the wall described in problem 1 rises to an elevation I m below the crest. The submerged unit weight of the sand is 10 kN/m'. If the deformation condition for the active Rankine state is satisfied, what is the resultant pressure that the earth and water exert against the wall? At what height above the base does the resultant of the earth and water pressures act? 1. A wall with a smooth vertical back 3...
Sove for part 1 CV 5263 HW 1 (2018-19) Name: Problem 2: Lateral Earth Pressure Theories...
Sove for part 1
CV 5263 HW 1 (2018-19) Name: Problem 2: Lateral Earth Pressure Theories For both part 1 and part 2 determine: Magnitude of active resultant force per length of wall Location (height) of the active resultant force from the base of wall Direction (angle above horizontal) of the active resultant force Horizontal component of the active resultant force per length of wall Vertical component of the active resultant force per length of wall . Part 1: Coulomb...
Solve part 2, CV 5263 HW 1 (2018-19) Name: Problem 2: Lateral Earth Pressure Theories For...
Solve part 2,
CV 5263 HW 1 (2018-19) Name: Problem 2: Lateral Earth Pressure Theories For both part 1 and part 2 determine: e Magnitude of active resultant force per length of wall e Location (height) of the active resultant force from the base of wall Direction (angle above horizontal) of the active resultant force Horizontal component of the active resultant force per length of wall Vertical component of the active resultant force per length of wall . Part 1:...
Problem 2 (60 points) A gravity wall with granular backfill and inclined surface is shown in...
Problem 2 (60 points) A gravity wall with granular backfill and inclined surface is shown in Fig. 2. The friction angles between the backfill and the wall (8) -20°, and the soil and base of the wall (n) - 15'. The adhesion between the soil and the base of the wall (C)-110 psf. (B-5 ft) Je=50 2 ft inclination angle H 15 ft Gravity Wall Granular backfill 0=320 y = 115 pcf y = 150 pcf Base Soil Ca =...
16.1 A 15 ft high vertical wall retains an overconsolidated soil where OC 1.5, c' :...
16.1 A 15 ft high vertical wall retains an overconsolidated soil where OC 1.5, c' : O, ? , 33, and -115.0 lb/ft3. Determine the magnitude and location of the thrust on the wall, assuming that the soil is at rest.
A smooth vertical retaining wall, 5 m high, retains a granular backfill whose angle of internal...
A smooth vertical retaining wall, 5 m high, retains a granular backfill whose angle of internal friction is equal to 30o. Assume the unit weight of the backfill to be 18.5 kN/m3. For a backfill slope i = 0, 10, 15, 20, and 25o, determine KAfor each case.
help please A square footing is founded at 3-ft depth below ground surface as shown in...
help please
A square footing is founded at 3-ft depth below ground surface as shown in Fig1, The factored axial load acting on the square footing is 140 kips, Determine the size of the footing (B x B) if the Factor of Safety (F.S.) is 3.0. Ground surface ЗА B-? Silty Sand Fig.1 A 68-ft long pre-stressed concrete pile with square cross section (14 inch) is driven into the soil profile shown in Fig. 2. Compute the ultimate compressive load...
A retaining wall with a smooth vertical back has to retain a backfill of cohesionless soil upto a height f St above ground level. The.coil has a void ratio of 0.83 and the specific gravity of soil solids is 2.68.The water table is located at a depth of 2m below the top of the backfill. The soil above the water table is 20% saturated. The angle of internal friction of the soil above and below water table is 32 and...
You have to review the design of a cantilevered concrete retaining wall designed for the height and soil as shown in the figure. Please check the design and provide your recommendation for the following situation: - 200 psf Surcharge load on top of the backfill material Lean clay at foundation same soil for backfill Dry unit weight of soil Cohesion/adhesion of the clay/concrete Bearing capacity of the soil Active earth pressure coefficient Ignore the effect of ground water table Unit...
2. The water level behind the wall described in problem 1 rises to an elevation I m below the crest. The submerged unit weight of the sand is 10 kN/m'. If the deformation condition for the active Rankine state is satisfied, what is the resultant pressure that the earth and water exert against the wall? At what height above the base does the resultant of the earth and water pressures act? 1. A wall with a smooth vertical back 3...
Sove for part 1
CV 5263 HW 1 (2018-19) Name: Problem 2: Lateral Earth Pressure Theories For both part 1 and part 2 determine: Magnitude of active resultant force per length of wall Location (height) of the active resultant force from the base of wall Direction (angle above horizontal) of the active resultant force Horizontal component of the active resultant force per length of wall Vertical component of the active resultant force per length of wall . Part 1: Coulomb...
Solve part 2,
CV 5263 HW 1 (2018-19) Name: Problem 2: Lateral Earth Pressure Theories For both part 1 and part 2 determine: e Magnitude of active resultant force per length of wall e Location (height) of the active resultant force from the base of wall Direction (angle above horizontal) of the active resultant force Horizontal component of the active resultant force per length of wall Vertical component of the active resultant force per length of wall . Part 1:...
Problem 2 (60 points) A gravity wall with granular backfill and inclined surface is shown in Fig. 2. The friction angles between the backfill and the wall (8) -20°, and the soil and base of the wall (n) - 15'. The adhesion between the soil and the base of the wall (C)-110 psf. (B-5 ft) Je=50 2 ft inclination angle H 15 ft Gravity Wall Granular backfill 0=320 y = 115 pcf y = 150 pcf Base Soil Ca =...
16.1 A 15 ft high vertical wall retains an overconsolidated soil where OC 1.5, c' : O, ? , 33, and -115.0 lb/ft3. Determine the magnitude and location of the thrust on the wall, assuming that the soil is at rest.
help please
A square footing is founded at 3-ft depth below ground surface as shown in Fig1, The factored axial load acting on the square footing is 140 kips, Determine the size of the footing (B x B) if the Factor of Safety (F.S.) is 3.0. Ground surface ЗА B-? Silty Sand Fig.1 A 68-ft long pre-stressed concrete pile with square cross section (14 inch) is driven into the soil profile shown in Fig. 2. Compute the ultimate compressive load...
