A smooth vertical retaining wall, 5 m high, retains a granular backfill whose angle of internal...

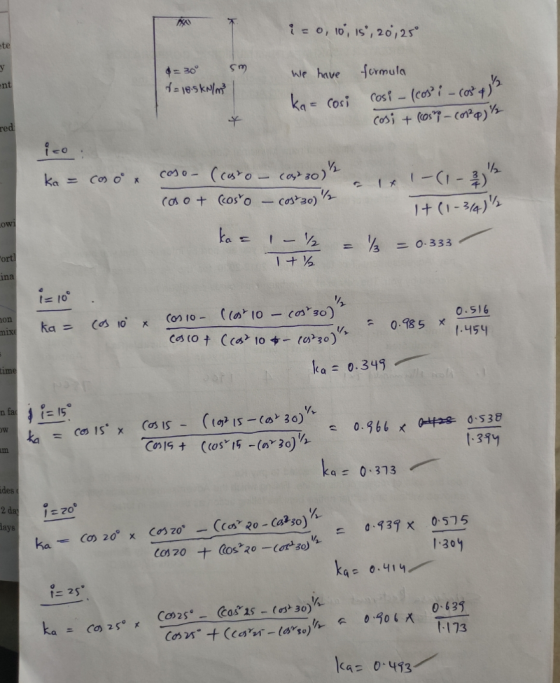

A smooth vertical retaining wall, 5 m high, retains a granular backfill whose angle of internal friction is equal to 30o. Assume the unit weight of the backfill to be 18.5 kN/m3. For a backfill slope i = 0, 10, 15, 20, and 25o, determine KAfor each case.
Homework Answers
Add Answer to:
A smooth vertical retaining wall, 5 m high, retains a granular
backfill whose angle of internal...
A smooth vertical retaining wall, 3m high, pushes against a granular backfill whose angle of internal...
A smooth vertical retaining wall, 3m high, pushes against a granular backfill whose angle of internal friction is 30o. The backfill is sloped at 10 o. Assume the unit weight of the backfill is 17.6 kN/m3, determine the passive resistance Pp using the trial wedge method. Compare the results using Rankine’s method and comment on any differences.
Figure 15.45 shows a gravity retaining wall retaining a granular (c' = 0) backfill. The same soil is present at the bottom of the wall and on the left. The unit weight and the friction angle of the backfill are 18.5 kN/m3 and 35°, respectively. The unit w
Figure 15.45 shows a gravity retaining wall retaining a granular (c' = 0) backfill. The same soil is present at the bottom of the wall and on the left. The unit weight and the friction angle of the backfill are 18.5 kN/m3 and 35°, respectively. The unit weight of concrete is 24.0 kN/m3. Determine the factors of safety with respect to overturning, sliding, and bearing capacity failure. Use Rankine earth pressure theory.
A 4m high, vertical retaining wall supports Silty SAND backfill with a horizontal surface. There is...
A 4m high, vertical retaining wall supports Silty SAND backfill with a horizontal surface. There is a hydrostatic horizontal water table at 1 m below the ground surface. The soil has bulk unit weight = 20 kN/m3, effective cohesion=5 kPa, and friction angle= 30o. What is the value of the water force on the wall? At what distance above the base of the wall does it act?
A retaining wall with a smooth vertical back has to retain a backfill of cohesionless soil...
A retaining wall with a smooth vertical back has to retain a backfill of cohesionless soil upto a height f St above ground level. The.coil has a void ratio of 0.83 and the specific gravity of soil solids is 2.68.The water table is located at a depth of 2m below the top of the backfill. The soil above the water table is 20% saturated. The angle of internal friction of the soil above and below water table is 32 and...
A smooth, vertical wall is 18 feet high and retains a cohesionless soil with a unit...
A smooth, vertical wall is 18 feet high and retains a cohesionless soil with a unit weight of 125 PCF and a friction angle ( t) of 32 The top of the soil is level with the top of the wall and the soil surface carries a uniformly distributed load of 1,200 PSF Use Rankine theory to calculate the total active earth pressure on the wall per linear foot of wall and the location of the active earth pressure.
17.7 A reinforced earth retaining wall (Figure 17.35) is to be 10 m high. Here, Backfill:...
17.7 A reinforced earth retaining wall (Figure 17.35) is to be 10 m high. Here, Backfill: unit weight, Y = 16 kN/m and soil fric- tion angle, $i = 34° Reinforcement: vertical spacing, Sy = 1 m; horizontal spacing, Sy = 1.25 m; width of rein- forcement = 120 mm; f = 260 MN/m²; 0,= 25°; factor of safety against tie pullout = 3; and factor of safety against tie breaking = 3 Determine: a. The required thickness of ties...
Reinforced concrete cantilever retaining wall has a cohesionless backfill soil (o' 380) with unit weight of 17 kN/m...
Reinforced concrete cantilever retaining wall has a cohesionless backfill soil (o' 380) with unit weight of 17 kN/m (above GWT) and 20 kN/m (saturated). The resisting moment about the toe due to the self-weight of concrete is 100kN 10 kN/m2 0.4m 2.6 m- 3.9m GWT 2.7m 0.4m 7concrete 23.5 kN/m3 4.0m
Reinforced concrete cantilever retaining wall has a cohesionless backfill soil (o' 380) with unit weight of 17 kN/m (above GWT) and 20 kN/m (saturated). The resisting moment about the...
a) A cantilever retaining wall is constructed to retain the earth in order to create a...
a) A cantilever retaining wall is constructed to retain the earth in order to create a change of elevation. The stability aspect of a retaining wall is important to prevent any failure of the structure. Referring to Figure 2, check the stability of the cantilever retaining wall against: (i) Sliding (ii) Rotation (ii) Bearing failure (iv) Short conclusion on the stability of the wall [5 marks] [4 marks] [3 marks [2 marks] 0.5 m 4.0 m 0.8 m 1.2 m...
fondation engineering si unit (8 marks) 4. A vertical retaining wall (shown in the figure below)...
fondation engineering si unit
(8 marks) 4. A vertical retaining wall (shown in the figure below) is 8 m high with horizontal backfill. the properties of the backfill are as shown on the figure. Determine a. the Rankine active force per unit length of the wall before the occurrence of the tensile crack. Yw 9.81 kN/m3. b. The location of the Rankine active force. qs 20 kN/㎡ 5 m 2 Sandy Clay 3 m Sand
RCD3601/101/0/2019 QUESTION 8 Figura o shows the section through a neonased reinforced concrete cantilever retaining wall...
RCD3601/101/0/2019 QUESTION 8 Figura o shows the section through a neonased reinforced concrete cantilever retaining wall that will be situated on a property boundary. Grade 30/19 concrete and high tensile steel reinforcement is to be The backfill behind the wall is sloping at an angle of 15º measured from the horizontal and is subjected to an imposed load of 2.5 kN/m². A geotechnical report gave the following soil parameters: • Unit weight of soil (V) = 17 kN/m • Angle...
A retaining wall with a smooth vertical back has to retain a backfill of cohesionless soil upto a height f St above ground level. The.coil has a void ratio of 0.83 and the specific gravity of soil solids is 2.68.The water table is located at a depth of 2m below the top of the backfill. The soil above the water table is 20% saturated. The angle of internal friction of the soil above and below water table is 32 and...
A smooth, vertical wall is 18 feet high and retains a cohesionless soil with a unit weight of 125 PCF and a friction angle ( t) of 32 The top of the soil is level with the top of the wall and the soil surface carries a uniformly distributed load of 1,200 PSF Use Rankine theory to calculate the total active earth pressure on the wall per linear foot of wall and the location of the active earth pressure.
17.7 A reinforced earth retaining wall (Figure 17.35) is to be 10 m high. Here, Backfill: unit weight, Y = 16 kN/m and soil fric- tion angle, $i = 34° Reinforcement: vertical spacing, Sy = 1 m; horizontal spacing, Sy = 1.25 m; width of rein- forcement = 120 mm; f = 260 MN/m²; 0,= 25°; factor of safety against tie pullout = 3; and factor of safety against tie breaking = 3 Determine: a. The required thickness of ties...
Reinforced concrete cantilever retaining wall has a cohesionless backfill soil (o' 380) with unit weight of 17 kN/m (above GWT) and 20 kN/m (saturated). The resisting moment about the toe due to the self-weight of concrete is 100kN 10 kN/m2 0.4m 2.6 m- 3.9m GWT 2.7m 0.4m 7concrete 23.5 kN/m3 4.0m
Reinforced concrete cantilever retaining wall has a cohesionless backfill soil (o' 380) with unit weight of 17 kN/m (above GWT) and 20 kN/m (saturated). The resisting moment about the...
a) A cantilever retaining wall is constructed to retain the earth in order to create a change of elevation. The stability aspect of a retaining wall is important to prevent any failure of the structure. Referring to Figure 2, check the stability of the cantilever retaining wall against: (i) Sliding (ii) Rotation (ii) Bearing failure (iv) Short conclusion on the stability of the wall [5 marks] [4 marks] [3 marks [2 marks] 0.5 m 4.0 m 0.8 m 1.2 m...
fondation engineering si unit
(8 marks) 4. A vertical retaining wall (shown in the figure below) is 8 m high with horizontal backfill. the properties of the backfill are as shown on the figure. Determine a. the Rankine active force per unit length of the wall before the occurrence of the tensile crack. Yw 9.81 kN/m3. b. The location of the Rankine active force. qs 20 kN/㎡ 5 m 2 Sandy Clay 3 m Sand
RCD3601/101/0/2019 QUESTION 8 Figura o shows the section through a neonased reinforced concrete cantilever retaining wall that will be situated on a property boundary. Grade 30/19 concrete and high tensile steel reinforcement is to be The backfill behind the wall is sloping at an angle of 15º measured from the horizontal and is subjected to an imposed load of 2.5 kN/m². A geotechnical report gave the following soil parameters: • Unit weight of soil (V) = 17 kN/m • Angle...
