A smooth vertical retaining wall, 3m high, pushes against a granular backfill whose angle of internal...

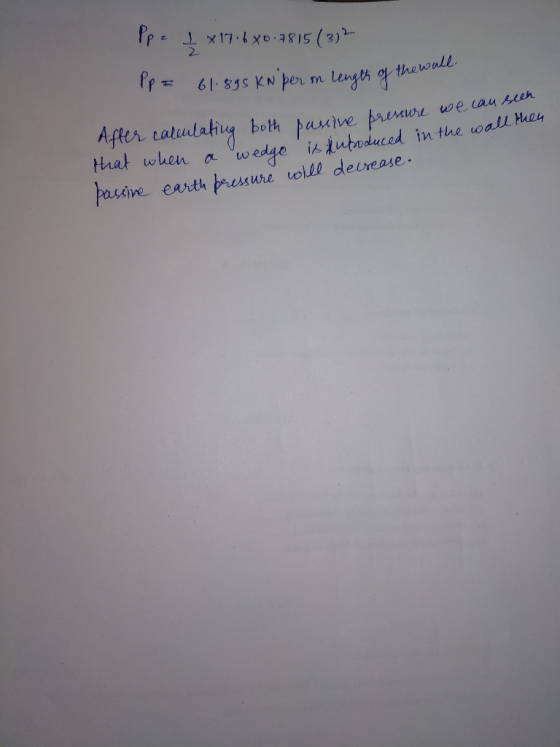

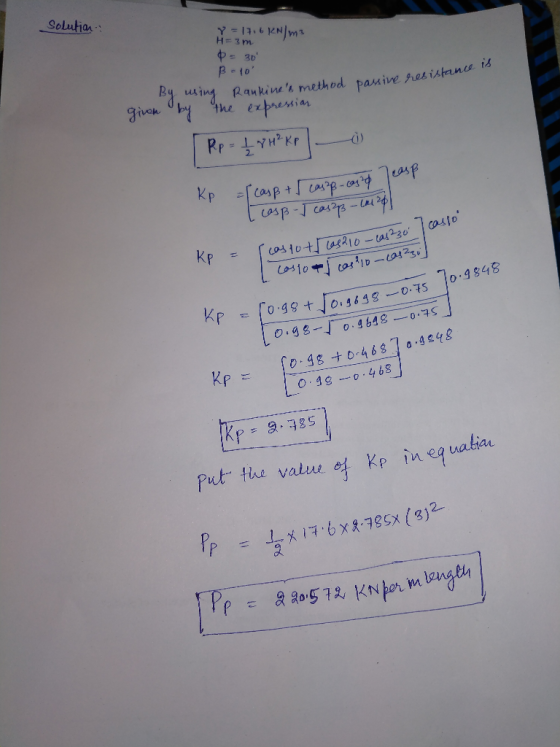

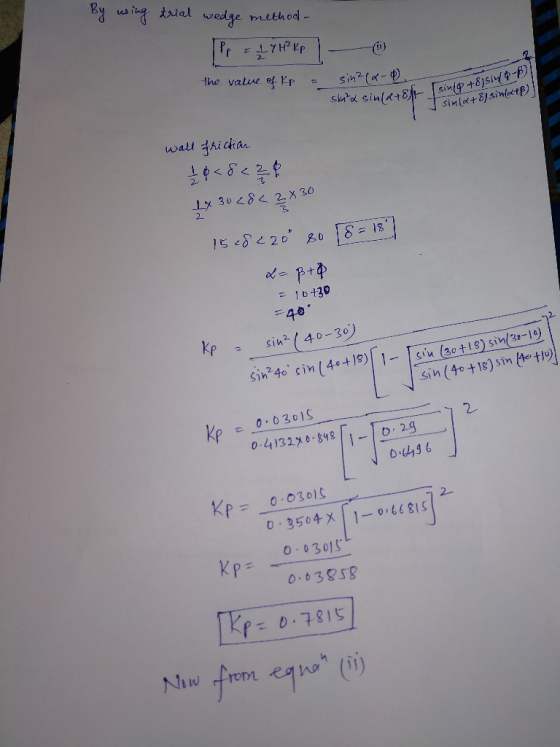

A smooth vertical retaining wall, 3m high, pushes against a granular backfill whose angle of internal friction is 30o. The backfill is sloped at 10 o. Assume the unit weight of the backfill is 17.6 kN/m3, determine the passive resistance Pp using the trial wedge method. Compare the results using Rankine’s method and comment on any differences.
Homework Answers
Add Answer to:
A smooth vertical retaining wall, 3m high, pushes against a
granular backfill whose angle of internal...
A smooth vertical retaining wall, 5 m high, retains a granular backfill whose angle of internal...
A smooth vertical retaining wall, 5 m high, retains a granular backfill whose angle of internal friction is equal to 30o. Assume the unit weight of the backfill to be 18.5 kN/m3. For a backfill slope i = 0, 10, 15, 20, and 25o, determine KAfor each case.
A 4m high, vertical retaining wall supports Silty SAND backfill with a horizontal surface. There is...
A 4m high, vertical retaining wall supports Silty SAND backfill with a horizontal surface. There is a hydrostatic horizontal water table at 1 m below the ground surface. The soil has bulk unit weight = 20 kN/m3, effective cohesion=5 kPa, and friction angle= 30o. What is the value of the water force on the wall? At what distance above the base of the wall does it act?
Figure 15.45 shows a gravity retaining wall retaining a granular (c' = 0) backfill. The same soil is present at the bottom of the wall and on the left. The unit weight and the friction angle of the backfill are 18.5 kN/m3 and 35°, respectively. The unit w
Figure 15.45 shows a gravity retaining wall retaining a granular (c' = 0) backfill. The same soil is present at the bottom of the wall and on the left. The unit weight and the friction angle of the backfill are 18.5 kN/m3 and 35°, respectively. The unit weight of concrete is 24.0 kN/m3. Determine the factors of safety with respect to overturning, sliding, and bearing capacity failure. Use Rankine earth pressure theory.
A retaining wall with a smooth vertical back has to retain a backfill of cohesionless soil...
A retaining wall with a smooth vertical back has to retain a backfill of cohesionless soil upto a height f St above ground level. The.coil has a void ratio of 0.83 and the specific gravity of soil solids is 2.68.The water table is located at a depth of 2m below the top of the backfill. The soil above the water table is 20% saturated. The angle of internal friction of the soil above and below water table is 32 and...
6-12 Use Coulomb's method to determine the magnitude and direction of the total lateral force against...
6-12 Use Coulomb's method to determine the magnitude and direction of the total lateral force against the retaining wall of problem 6-5. Assume the friction angle between the wall and the soil to be 2/3*phi. Make one trial only, using an assumed failure surface at an angle of 60 degrees from horizontal. Problem 6-5 is: Use Rankine's method to determine the magnitude and location of the resultant active force against a retaining wall 6 m high. There is a water...
A retaining wall with a smooth vertical back has to retain a backfill of cohesionless soil upto a height f St above ground level. The.coil has a void ratio of 0.83 and the specific gravity of soil solids is 2.68.The water table is located at a depth of 2m below the top of the backfill. The soil above the water table is 20% saturated. The angle of internal friction of the soil above and below water table is 32 and...
