Question

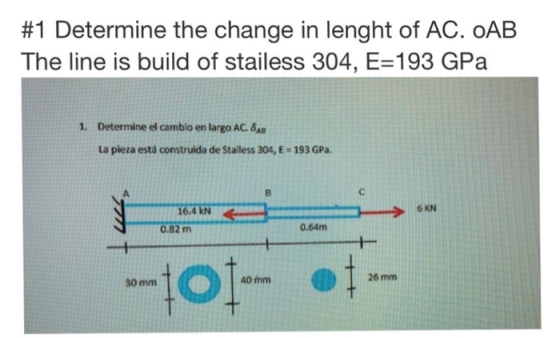

#1 Determine the change in lenght of AC. OAB The line is build of stailess 304, E=193 GPa 1. Determine el cambio en largo AC. 88 La pieza está construida de Stalless 304, E = 193 GPa. 16,4 kN 0.82 m 0.64m 26 mm 30 mm --101- of

Answer 1

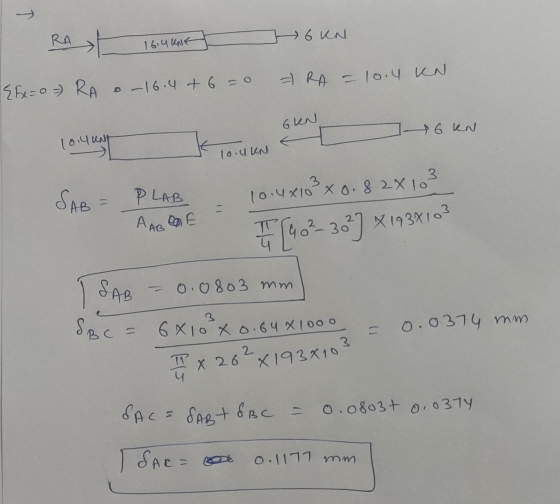

RA 1644n6 KN RA - 10.4 KN Ehe=0 RA . – 16.4 + 6 = 0 6 KN 46 KN 10.4 UNH 10.4 KN SAB = PLAB 10.4x10² x 0. 82X 103 AAROE 1402-38] X 193X10? ISAB = 0.0803 mm SBC = 6x10²x0.64 X1000 = 0.0374 mm. I x 26²x193x103 SAC = SART&BC = 0.0803t 0.0374 ISAC = 0.1177 mm
