solve 10.38 10.38 Find the current ix in the following ideal transformer r 20 2Ω 1:3...

Question

Question

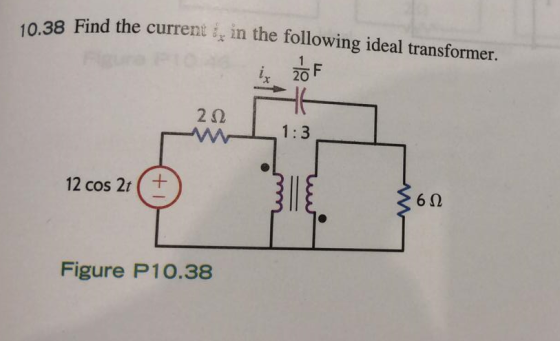

10.38 Find the current ix in the following ideal transformer r 20 2Ω 1:3 12 cos 2t + 6 Q Figure P10.38

solve 10.38

engineering Electrical-Engineering

Answer 1

Answer #1

1:3 uire redol eation ar neda yーレ2 3 2시

Answer 2

Similar Homework Help Questions

Problem E1.2.6 (20 points) Consider the magntically coupled circuit that involves an ideal transformer as depicted...

Problem E1.2.6 (20 points) Consider the magntically coupled circuit that involves an ideal transformer as depicted in Figure E1.2.6. The sinusoidal voltage source frequency is 20 x 103 (rad/sec). The load connected to the secondary winding (RHS of the ideal transformer) consists of a variable resistor R in series with a variable capacitor C. (a) Find the values of R and C for maximum power transfer from the voltage source in the primary winding. (b) What is the maximum average...
2. For the ideal transformer in the figure below, find the amplitudes and phase angles of...

2. For the ideal transformer in the figure below, find the amplitudes and phase angles of V1, V2, 11, and 12. 10 k12 0.5 H 10:1 330 10.cos(100t) V 5000 uF
For Problems 13 to 14: Figure shows an ideal transformer. Vi = 100 cos(8t), N, =...

For Problems 13 to 14: Figure shows an ideal transformer. Vi = 100 cos(8t), N, = 40, N2 = 8, R, = 422 NE Problem [13] <5 points> Calculate the magnitude of the flux Q . Problem [14] <5 points> Calculate the magnitude of the current I, .

Using the superposition principle, find it in the circuit given below, where R=6 . Please report...

Using the superposition principle, find it in the circuit given below, where R=6 . Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. F ix 10 cos(2t + 109) A ( 20cos(2t -60°) V The component of the current due to the voltage source is is ) A. cos(2+0 COS(2+ The component of the current due to the current source is 12 )) A The...
4) Find the current I1 and 12 in this ideal transformer circuit below -j24 Ω j10Ω...

4) Find the current I1 and 12 in this ideal transformer circuit below -j24 Ω j10Ω 16Ω 5 20°A
Solve for the current flowing through the 8 Ω resistor in the following figure. 2Ω 4Ω...

Solve for the current flowing through the 8 Ω resistor in the following figure. 2Ω 4Ω 18o 5 V 8Ω +3 V

4. (10.6) Find the output voltage (as a phasor) in the circuit below. j1 Ω 2Ω...

4. (10.6) Find the output voltage (as a phasor) in the circuit below. j1 Ω 2Ω W 2020° 192 5/20 5. (10.42) Find the currents and voltages (as phasors) in the circuit below containing an ideal transformer. WW th ot 20 7602 20200 & 10 6. (10.43) Find the voltage (as phasor) in the circuit below containing an ideal transformer. 2:1 2:1 rün 402 W W of 22 2020 -120 lllll j622 lo 7. If Li - 30 mH, L2...
L4' : Find 11,12 and Vi in the following circuit. 4Ω 2Ω 3 A 6Ω 4...

L4' : Find 11,12 and Vi in the following circuit. 4Ω 2Ω 3 A 6Ω 4 6Ω 40 1, 6Ω 2Ω 4Ω An ammeter model consists of an ideal ammeter in series with a 202 resisto m resistor R as shown below. The al 5
For Problems 13 to 14: Figure shows an ideal transformer. V = 100 cos(8t), N, =...

For Problems 13 to 14: Figure shows an ideal transformer. V = 100 cos(8t), N, = 40, N, = 8, R2 = 412 VAR Problem [13] <5 points> Calculate the magnitude of the flux Q . Problem [14] <5 points> Calculate the magnitude of the current 1, ·

roblem 5i Consider the circuit with an ideal transformer shown in Figure 5. 1:2 820 16...

roblem 5i Consider the circuit with an ideal transformer shown in Figure 5. 1:2 820 16 ? V. 2 Figure 5. Ideal transformer circuit Submit the Following in the Online Quiz 20 points : Real and imaginary parts of l 12 1A 20 points: Real and imaginary parts of V, VV 5.a : Determine the numerical value of the phasor current 1, in rectangular form 5.b : Determine the numerical value of the phasor voltage 1z in rectangular form.
