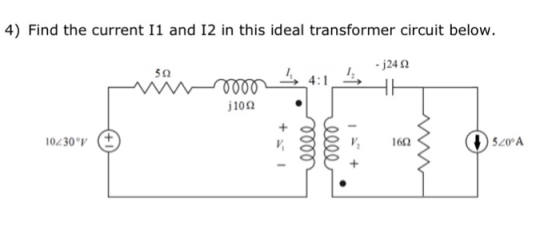

4) Find the current I1 and 12 in this ideal transformer circuit below -j24 Ω j10Ω...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

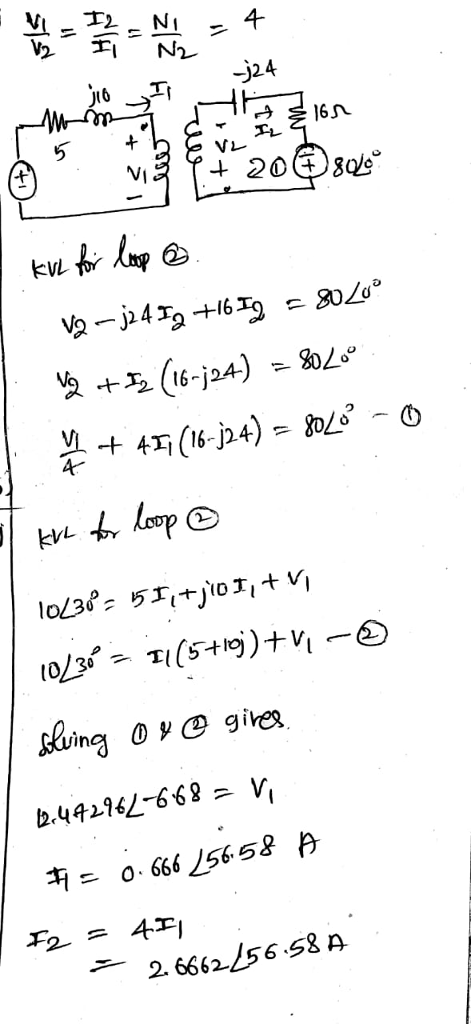

24 kvl 2 6662 156 S8 A

Answer 2

Similar Homework Help Questions

xample v2, i1, 12, p1, and p2 if the transformer is not ideal and what is...

xample v2, i1, 12, p1, and p2 if the transformer is not ideal and what is type of this transformer? n, 10 n2 = 5 v, 220v 12 72 n=2 i1 27.5 A P1 = 6050w P2 = 6000 w. Pi =? Slide 10 rical Engineering Umm Al-Qura University xample v2, i1, i2, p1, and p2 if the transformer is not ideal and what is e type of this transformer? n, = 10 12 v, = 220v n, r_-50 w...
4. (10.6) Find the output voltage (as a phasor) in the circuit below. j1 Ω 2Ω...

4. (10.6) Find the output voltage (as a phasor) in the circuit below. j1 Ω 2Ω W 2020° 192 5/20 5. (10.42) Find the currents and voltages (as phasors) in the circuit below containing an ideal transformer. WW th ot 20 7602 20200 & 10 6. (10.43) Find the voltage (as phasor) in the circuit below containing an ideal transformer. 2:1 2:1 rün 402 W W of 22 2020 -120 lllll j622 lo 7. If Li - 30 mH, L2...
4. (15 pts) For the ideal transformer, find the phasor expression for I1 and V1. Vs-...

4. (15 pts) For the ideal transformer, find the phasor expression for I1 and V1. Vs- 15 k /30 volts. 6 1.5k 6k -j15 11V1 V2 12 ideal

Palred Quiz) 3 For ideal transformer as shown in figure P.3, determine: a. The currents I1,...

Palred Quiz) 3 For ideal transformer as shown in figure P.3, determine: a. The currents I1, I2 and I3! b. The primary and secondary voltage Vu V, Vg and Va C. The complex power supplied by the source! d. The effective power dissipated by the load impedance, Zioad 812-20 Ω 1:3 18 Ω Zload 40200 v ( 45 Figure P.3 Ideal Transformer Circuit
5. (10 Points) Using ideal op-amp assumptions, find Vout. 10Ω 4 Ω 6 Ω + Ε...

5. (10 Points) Using ideal op-amp assumptions, find Vout. 10Ω 4 Ω 6 Ω + Ε 3V 8 Ω 16Ω Vout 12 Ω
Electrical Engineering Ideal Transformer Question 4. You are given the circuit shown below. Please note the...

Electrical Engineering Ideal Transformer Question 4. You are given the circuit shown below. Please note the polarities of the currents and voltages at the ideal transformer. The source voltage is 10V RMS. 21 j11 1 1:4 j10N 400 W ell ell + + 1020 -j112 1 a) Write your voltage and current relationships for the transformer. b) Create a Thevenin equivalent circuit for everything to the left of the dashed line shown in the schematic. Provide the open circuit voltage...

(1 point) In the circuit below, i1 = -2 A, i2 = 8 A, and v1...

(1 point) In the circuit below, i1 = -2 A, i2 = 8 A, and v1 = -2 V. Use nodal analysis to find vx and iy in the circuit below i1 8Ω 15 Ω 36 Ω 2 iy y 14 Ω 20 Ω ν1 24 Ω 10 Ω i2 40 Ω 35 Ω 12 Ω 16 Ω 0.4Vx 2013 Paul Hummel CC BY NC SAΑ
Problem E1.2.6 (20 points) Consider the magntically coupled circuit that involves an ideal transformer as depicted...

Problem E1.2.6 (20 points) Consider the magntically coupled circuit that involves an ideal transformer as depicted in Figure E1.2.6. The sinusoidal voltage source frequency is 20 x 103 (rad/sec). The load connected to the secondary winding (RHS of the ideal transformer) consists of a variable resistor R in series with a variable capacitor C. (a) Find the values of R and C for maximum power transfer from the voltage source in the primary winding. (b) What is the maximum average...
Find the Rab for the circuit shown below: 20 Ω 8Ω 5 Ω Rab 18 Ω...

Find the Rab for the circuit shown below: 20 Ω 8Ω 5 Ω Rab 18 Ω 20 Ω S 12 NNN 99 2 Ω Calculate the mesh currents if and i2 shown in the circuit below: 2 Ω 9Ω Q 8V (1) 12V 4 Ω 3 Ω

For the circuit shown 11-20 μΑ, 12-2 μ A, R,-5000 Ω. RL-200 Ω, VDDP-12 V and...

For the circuit shown 11-20 μΑ, 12-2 μ A, R,-5000 Ω. RL-200 Ω, VDDP-12 V and VDDN-12 V and the OPAMP is ideal and you notice there is negative feedback. VoUT due to I1 mV OUT due to I,- mV VoUT due to both I1 and 12 mV R1 (121 12 RL (RL) The relative tolerance for this problem is 1 %.
