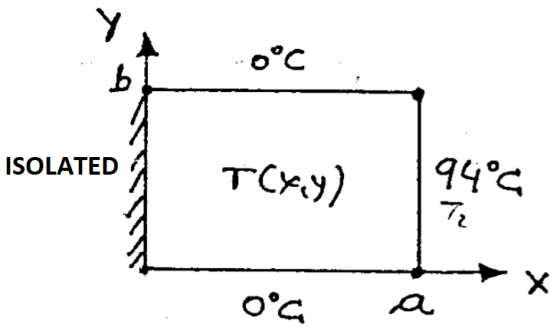

A rectangular metal plate, whose loss of heat is minimal, has

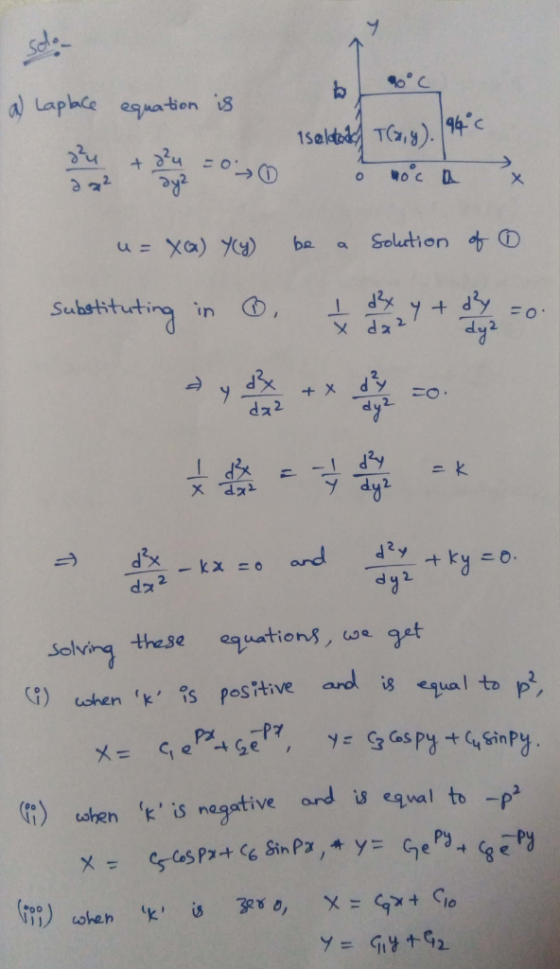

the indicated boundary conditions. Starting from the LAPLACE
equation and with all the respective analysis to obtain all its
analytical expressions.
a) Obtain an analytical expression for the distribution of
temperatures in the plate.

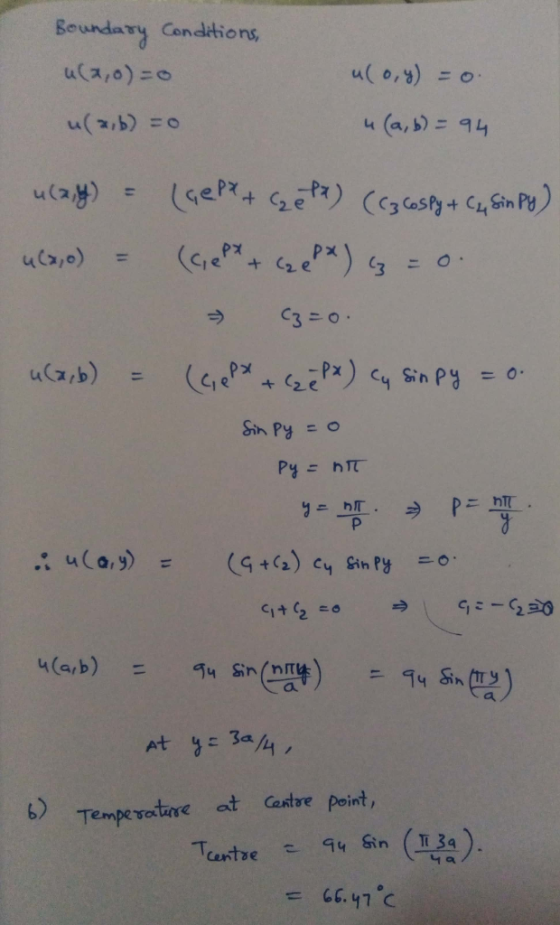

b) How much is the temperature at the center point
for:
Homework Answers
