A two dimensional rectangular plate is subjected to prescribed temperature boundary conditions; T1 on three sides...

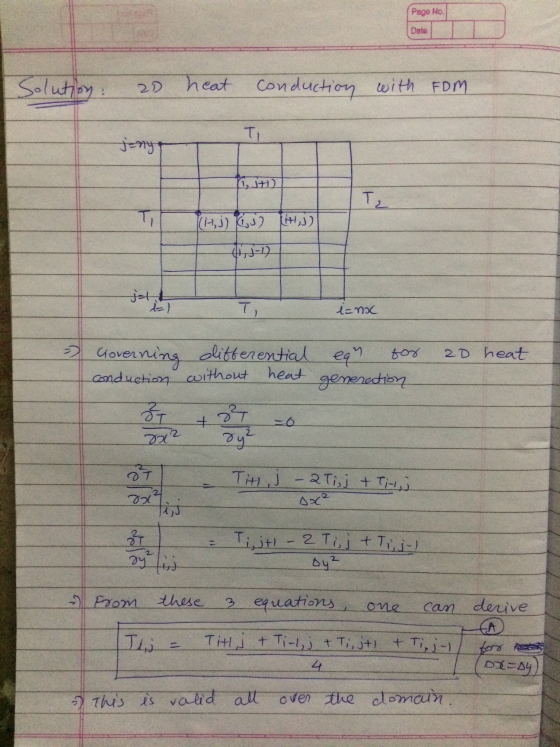

A two dimensional rectangular plate is subjected to prescribed temperature boundary conditions; T1 on three sides and T2 at the right side. (a) Solving the differential conduction equation and applying the boundary conditions derive an expression for the temperature distribution in the plate. (b) Derive the finite difference equation for interior nodes.
Homework Answers
Add Answer to:
A two dimensional rectangular plate is subjected to prescribed
temperature boundary conditions; T1 on three sides...
A two-dimensional rectangular plate is subjected to prescribed boundary conditions. Using the results of the exact...
A two-dimensional rectangular plate is subjected to prescribed boundary conditions. Using the results of the exact solution for the heat equation presented in Sec- tion 4.2, calculate the temperatures along the mid-plane of the plate (x m at y 0.25, 0.5, and 0.75 m by considering the first five nonzero terms of the infinite series. Assess the error resulting from using only the first three terms of the infinite series y (m) T2-1 50°C T1 = 50°C T 50°C r...
Consider two-dimensional steady-state heat conduction in a rectangular region of cross-section 2L by 3L subject to...
Consider two-dimensional steady-state heat conduction in a
rectangular region of cross-section 2L by 3L subject to boundary
conditions shown below. By using a mesh size deltax = deltay = L,
write the finite difference equations for this problem, and
calculate the node temperatures T1, T2, T3 and T4.
2 4 3 yL dee itc ft u esu
A rectangular metal plate, whose loss of heat is minimal, has the indicated boundary conditions. Starting...
A rectangular metal plate, whose loss of heat is minimal, has
the indicated boundary conditions. Starting from the LAPLACE
equation and with all the respective analysis to obtain all its
analytical expressions.
a) Obtain an analytical expression for the distribution of
temperatures in the plate.
b) How much is the temperature at the center point
for:
b ? |
formulate complete PDE problems (specify the equation, space domain, time interval, boundary, and initial conditions) for...
formulate complete PDE problems (specify the equation, space domain, time interval, boundary, and initial conditions) for the following model situations: a) Conduction heat transfer occurs in a thin rod of length L with insulated side walls. Temperature is initially constant T(0) = T0. We are asked to find the temperature distribution in the time period 0 < t < t1, during which the left end of the rod is kept at the temperature T0, and the right end is subject...
Solve the problem using the Finite-Difference Method. use these conditions: L=2m, h1 = 20 and h2 ...
solve the problem using the Finite-Difference Method. use these
conditions: L=2m, h1 = 20 and h2 = 10
A flat plate (k-1 W/m-K, p 2 kg/m3, c 0.7 kJ/kg-K) separates two fluids with different temperatures and convection coefficients. Heat conduction in the plate can be considered one-dimensional. The initial temperature of the plate is uniform and equal to 30 °C. a) Select the problem parameters using the table below. b) Cover the domain with a grid and write the finite...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
You will need to use program like Matlab. The upper and lower sides of the rectangular aluminum block(L-10mm, D-3mm)...
You will need to use program like Matlab.
The upper and lower sides of the rectangular aluminum block(L-10mm, D-3mm) are insulated as shown below. The left and right sides have temperature boundary conditions and convective boundary conditions, respectively. Surface temperature T 100 C, Outside te Heat transfer coefficent h 120W/(m2k) mperatureT -20 C Alumium thermal conductivity K-220 W ( Specific heat C-896J/ (kg K) k), density p 2707kg/m3, Assuming the aluminum block is a two-dimensional shape, calculate the temperature on...
The upper and lower sides of the rectangular aluminum block L-10mm, D 3mm) are insulated as shown below. The left and r...
The upper and lower sides of the rectangular aluminum block L-10mm, D 3mm) are insulated as shown below. The left and right sides have temperature boundary conditions and convective boundary conditions, respectively Surface temperature T 100 C, Outside temperature T-20 C Heat transfer coefficent h 120W/(m2 k) Alumium thermal conductivity K-220 W/(m k), density p-2707kg/m Specific heat C896J/(kg K) Assuming the aluminum block is a two-dimensional shape, calculate the temperature on the plane(x-y) as follows. 1) Calculate the temperature of...
QUESTION FOUR Consider the base plate of an 900-W household iron with a thickness of L-0.6...
QUESTION FOUR Consider the base plate of an 900-W household iron with a thickness of L-0.6 cm, base area of A-160 cm2, and the thermal conductivity of k-60 W/m.K. The inner surface of the base plate is subjected to uniform heat flux generated by the resistance heaters inside. When stea dy operating itions are reached, the outer surface temperature of the plate is measured to be 112 C. Disregarding any heat loss through the upper part of the iron, (a)...
A rectangular lamina of width a and height b is sandwiched between two slabs of ice, so that the lower and upper sides, of width a, are at a temperature Θ 0, The other two sides are thermally isolat...
A rectangular lamina of width a and height b is sandwiched between two slabs of ice, so that the lower and upper sides, of width a, are at a temperature Θ 0, The other two sides are thermally isolated. Fix coordinates so that the origin below is the lower left corner, as shown in the figure се се Model this situation as a temperature e(x, y,t) that satisfies the two-dimensional diffusion equation with thermal diffusivity D, namely ot together with...
A two-dimensional rectangular plate is subjected to prescribed boundary conditions. Using the results of the exact solution for the heat equation presented in Sec- tion 4.2, calculate the temperatures along the mid-plane of the plate (x m at y 0.25, 0.5, and 0.75 m by considering the first five nonzero terms of the infinite series. Assess the error resulting from using only the first three terms of the infinite series y (m) T2-1 50°C T1 = 50°C T 50°C r...
Consider two-dimensional steady-state heat conduction in a
rectangular region of cross-section 2L by 3L subject to boundary
conditions shown below. By using a mesh size deltax = deltay = L,
write the finite difference equations for this problem, and
calculate the node temperatures T1, T2, T3 and T4.
2 4 3 yL dee itc ft u esu
A rectangular metal plate, whose loss of heat is minimal, has
the indicated boundary conditions. Starting from the LAPLACE
equation and with all the respective analysis to obtain all its
analytical expressions.
a) Obtain an analytical expression for the distribution of
temperatures in the plate.
b) How much is the temperature at the center point
for:
b ? |
solve the problem using the Finite-Difference Method. use these
conditions: L=2m, h1 = 20 and h2 = 10
A flat plate (k-1 W/m-K, p 2 kg/m3, c 0.7 kJ/kg-K) separates two fluids with different temperatures and convection coefficients. Heat conduction in the plate can be considered one-dimensional. The initial temperature of the plate is uniform and equal to 30 °C. a) Select the problem parameters using the table below. b) Cover the domain with a grid and write the finite...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
You will need to use program like Matlab.
The upper and lower sides of the rectangular aluminum block(L-10mm, D-3mm) are insulated as shown below. The left and right sides have temperature boundary conditions and convective boundary conditions, respectively. Surface temperature T 100 C, Outside te Heat transfer coefficent h 120W/(m2k) mperatureT -20 C Alumium thermal conductivity K-220 W ( Specific heat C-896J/ (kg K) k), density p 2707kg/m3, Assuming the aluminum block is a two-dimensional shape, calculate the temperature on...
The upper and lower sides of the rectangular aluminum block L-10mm, D 3mm) are insulated as shown below. The left and right sides have temperature boundary conditions and convective boundary conditions, respectively Surface temperature T 100 C, Outside temperature T-20 C Heat transfer coefficent h 120W/(m2 k) Alumium thermal conductivity K-220 W/(m k), density p-2707kg/m Specific heat C896J/(kg K) Assuming the aluminum block is a two-dimensional shape, calculate the temperature on the plane(x-y) as follows. 1) Calculate the temperature of...
QUESTION FOUR Consider the base plate of an 900-W household iron with a thickness of L-0.6 cm, base area of A-160 cm2, and the thermal conductivity of k-60 W/m.K. The inner surface of the base plate is subjected to uniform heat flux generated by the resistance heaters inside. When stea dy operating itions are reached, the outer surface temperature of the plate is measured to be 112 C. Disregarding any heat loss through the upper part of the iron, (a)...
A rectangular lamina of width a and height b is sandwiched between two slabs of ice, so that the lower and upper sides, of width a, are at a temperature Θ 0, The other two sides are thermally isolated. Fix coordinates so that the origin below is the lower left corner, as shown in the figure се се Model this situation as a temperature e(x, y,t) that satisfies the two-dimensional diffusion equation with thermal diffusivity D, namely ot together with...
