Question

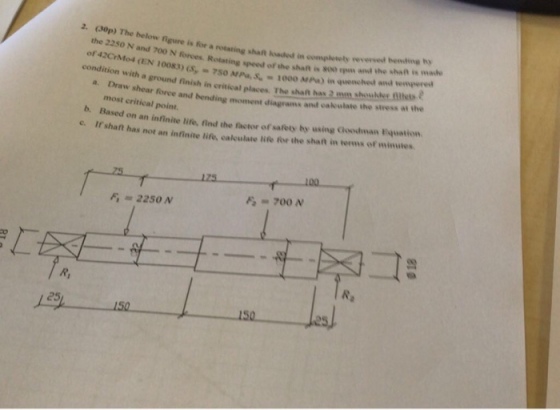

fgure is for a rotating shaft kuadoud in completely veverset benutinge y the 2250 N and 700 N forces of 42CrMod Retating speed of the shat is 8O0 pan and the shat is mace Mo4 (EN 10083) s-750MPaS-1000 pa) in quenchest and of the a ground finish in critical places The shat has 2 om shoukler tilets a. Draw shear force and bending most critical point. monient diagrams and eakulate·he stress as vive b. c. Ifshaft has Based on an infinite li fe, find the factor of safety by using Geodnman Eiquation not an infinite life, calculate life for the shaft in terns of miutes = 700 N R, i50 12
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

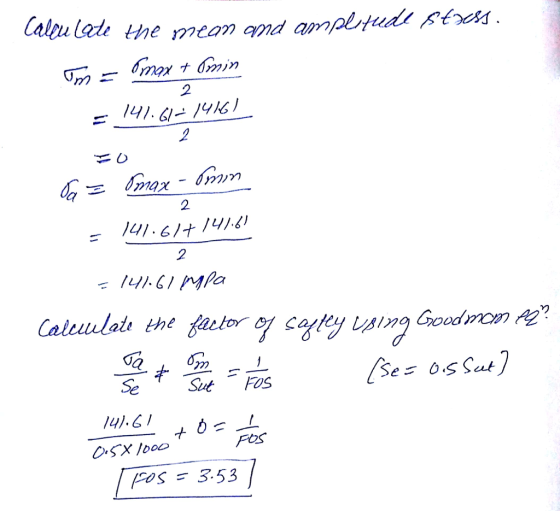

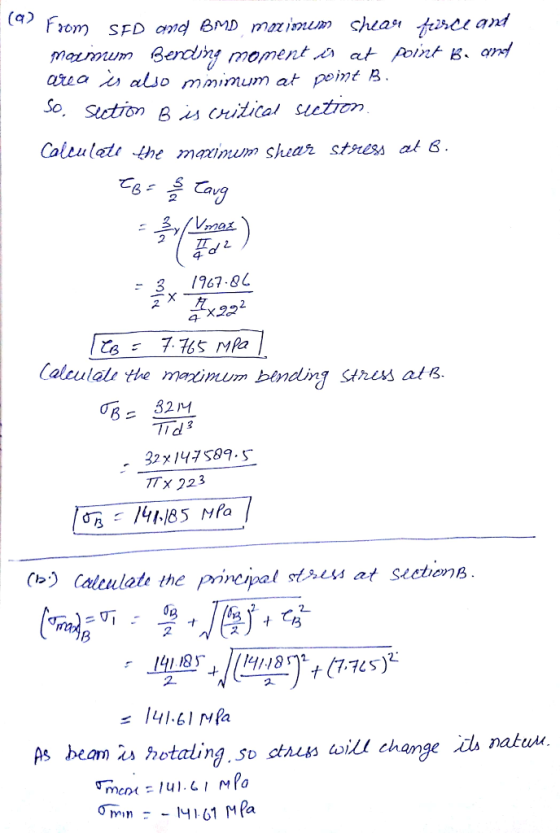

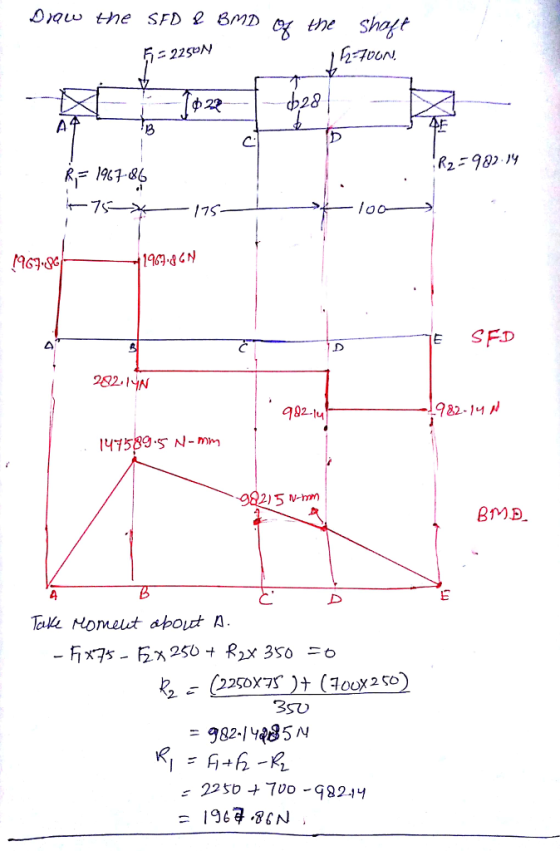

0 0
Add a comment
Know the answer?
Add Answer to:
fgure is for a rotating shaft kuadoud in completely veverset benutinge y the 2250 N and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A rotating shaft is made of AISI 1035 CD steel is subjected to an axial load of 710N

    A rotating shaft is made of AISI 1035 CD steel is subjected to an axial load of 710N, a fluctuating torque load from 60 to 120 N.m, and a completely reversed bending moment of 160N.m. The shaft has a diameter of 30mm, and operates at T=250°C, and has a life reliability of 95%. Note that the fatigue stress-concentration factor for bending Kfb is 1.49 and that for torque Kft is 2.65..1. Draw the Yield (Langer) line 2. Modified Goodman line. 3. Calculate...
