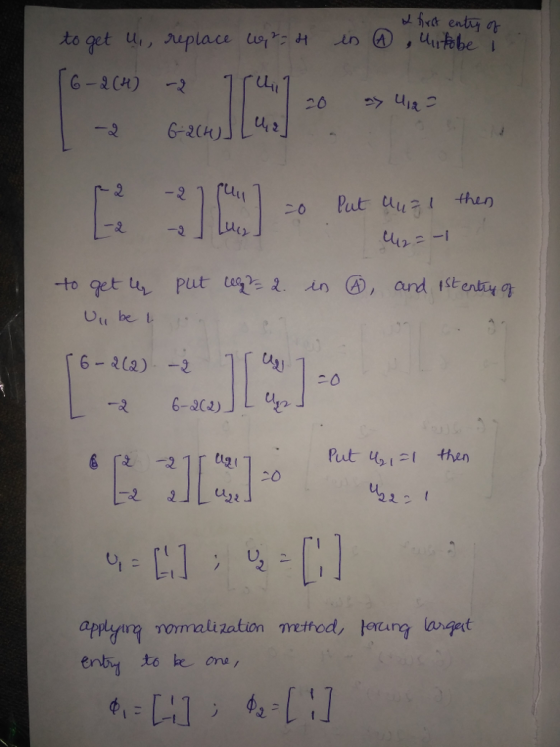

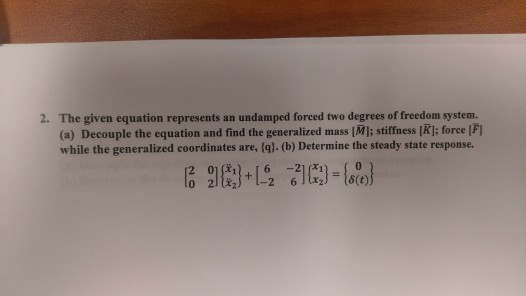

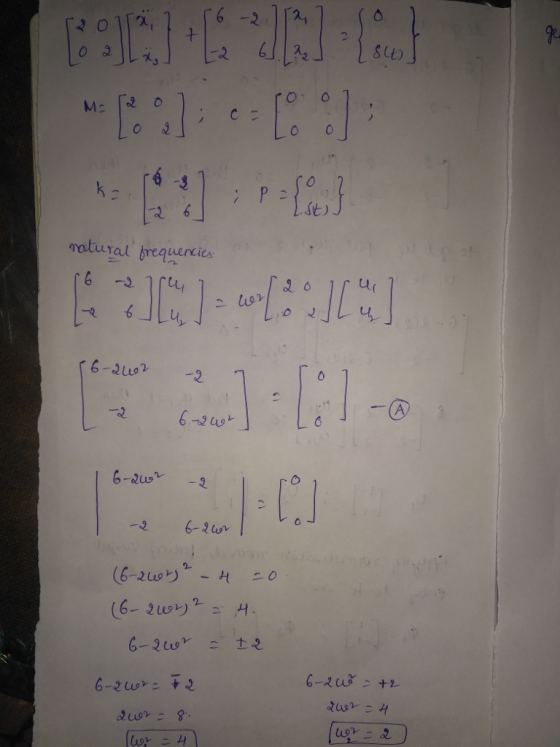

![The given equation represents an undamped forced two degrees of freedom system. (a) Decouple the equation and find the generalized mass [Ml; stiffiess [K]; force |F) while the generalized coordinates are, (a).(b) Determine the steady state response. ,6 -21 (31 2.](http://img.homeworklib.com/questions/d4d955b0-951e-11eb-be8c-0bb5b4029303.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
vibrations
The given equation represents an undamped forced two degrees of freedom system. (a) Decouple the...
09. For the two degrees of freedom system shown in Figure 4, determine the steady state response ...
09. For the two degrees of freedom system shown in Figure 4, determine the steady state response of the system due to a sinusoidal force Fi() 10sin10r applied to the mass block whose displacement isn. Given m = 10 kg, k = 1000N rn and the equations of motion of the system are -지 3m
09. For the two degrees of freedom system shown in Figure 4, determine the steady state response of the system due to a sinusoidal force...
2. The equation of motion for an undamped forced vibration system is given as, * +...
2. The equation of motion for an undamped forced vibration system is given as, * + 169x = 40t Determine the response by Convolution Integral method
Mechanics of Machines and Vibrations Single Degree of Freedom- Forced Damped Vibration Problem 15...
Mechanics of Machines and Vibrations Single Degree of Freedom- Forced Damped Vibration Problem 15 A vehicle of mass 1,500 kg is placed on a vibrating platform to test the condition of its shock absorbers. The platform vibrates with y 3sin40t mm and it is found that the relative amplitude of steady state of the vehicle is 3 mm. If the equivalent stiffness of the suspension is ke 310° N/m, determine the following:- i. Damping ratio, ii. Equivalent damping constant of...
Spring mass damper system with forced response, the forced system given by the equation For damping...
Spring mass damper system with forced response, the forced system given by the equation For damping factor:E-0.1 ; mass; m-| kg: stiffness of spring; k-100 Nm; f-| 00 N; ω Zun; initial condition: x (0)-2 cms; r(0) = 0. fsincot Task Marks 1. Write down the reduced equation into 2first orderns Hand written equations differential equations 2. Rearrange equation (1) with the following generalized equation 250, x+osinor calculations 3. Calculate the value of c calculations Hand calculations 4. Using the...
1.- Starting from the differential equation for a 1-degree of freedom system with mass M, damping...
1.- Starting from the differential equation for a 1-degree of freedom system with mass M, damping c and spring stiffness k: a.- Show that the particular solution for the equation with an applied force fo cos(ot), i.e., Mä+ci+kx=f, cos(or) can be expressed as x )= A cos(ot) + A, sin(or) and find the values of A, and A, that solve the differential equation in terms of M, c, k and fo. 5 points. b. Use the result from part a...
Homework 7: Undamped, 2-DOF System 1. A system with two masses of which the origins are...
Homework 7: Undamped, 2-DOF System 1. A system with two masses of which the origins are at the SEPs is shown in Figure 1. The mass of m2 is acted by the external force of f(t). Assume that the cable between the two springs, k2 and k3 is not stretchable. Solve the following problems (a) Draw free-body diagrams for the two masses and derive their EOMs (b) Represent the EOMs in a matrix fornm (c) Find the undamped, natural frequencies...
QUESTION 31 Forced Undamped system, Find the general response amplitude at the chosen time for the...
QUESTION 31 Forced Undamped system, Find the general response amplitude at the chosen time for the given system parameters: m= 2 kg k = 200 N/m • Initial Conditions: Xo = 0.005 m to = 0.5 • Initial amplitude of the external force, 10 N • Excitation's frequency w 4 rad/sec m Find x(t) t = 10 sec, x(t = 10) = Take Test: Test Part-2 VULUTUIN Find the response amplitude at the chosen time for the given system parameters:...
Question Four (a) Determine the response x() for the undamped system subjected to the force F...
Question Four (a) Determine the response x() for the undamped system subjected to the force F as shown below and given by: ts 0.1s F(t) =-600t +120 0.1 <t s 0.2 s t> 0.2s 600t 0 The mass is initially at rest with x 0 at time 1 0. (b) Find the displacement of the mass at 1 0.25 s. k 75 N/m 0.75 kg F), N 1, S 0.2 0.1
Question Four (a) Determine the response x() for the...
04: Derive the differential equation governing the motion of the one degree-of-freedom system by using Newton's...
04: Derive the differential equation governing the motion of the one degree-of-freedom system by using Newton's method. Use the generalized coordinates shown in figure (5) (bar moment of inertia, 1-2 ml) Slender bar of mass m Figure (5)
Problem 2 (25 points): Consider an undamped single-degree-of-freedom system with k = 10 N/m, 41 =...
Problem 2 (25 points): Consider an undamped single-degree-of-freedom system with k = 10 N/m, 41 = 10 N 92 = 8N, and m = 10 kg subjected to the harmonic force f(t) = qı sin(vt) + 92 cos(vt), v = 1 rad/ sec. Assume zero initial conditions (0) = 0 and c(0) = 0. Derive and plot the analytical solution of the displacement of the system. mm m = f(t) WWWWWWWW No friction Problem 2 Problem 3 (30 points): Using...
09. For the two degrees of freedom system shown in Figure 4, determine the steady state response of the system due to a sinusoidal force Fi() 10sin10r applied to the mass block whose displacement isn. Given m = 10 kg, k = 1000N rn and the equations of motion of the system are -지 3m
09. For the two degrees of freedom system shown in Figure 4, determine the steady state response of the system due to a sinusoidal force...
2. The equation of motion for an undamped forced vibration system is given as, * + 169x = 40t Determine the response by Convolution Integral method
Mechanics of Machines and Vibrations Single Degree of Freedom- Forced Damped Vibration Problem 15 A vehicle of mass 1,500 kg is placed on a vibrating platform to test the condition of its shock absorbers. The platform vibrates with y 3sin40t mm and it is found that the relative amplitude of steady state of the vehicle is 3 mm. If the equivalent stiffness of the suspension is ke 310° N/m, determine the following:- i. Damping ratio, ii. Equivalent damping constant of...
Spring mass damper system with forced response, the forced system given by the equation For damping factor:E-0.1 ; mass; m-| kg: stiffness of spring; k-100 Nm; f-| 00 N; ω Zun; initial condition: x (0)-2 cms; r(0) = 0. fsincot Task Marks 1. Write down the reduced equation into 2first orderns Hand written equations differential equations 2. Rearrange equation (1) with the following generalized equation 250, x+osinor calculations 3. Calculate the value of c calculations Hand calculations 4. Using the...
1.- Starting from the differential equation for a 1-degree of freedom system with mass M, damping c and spring stiffness k: a.- Show that the particular solution for the equation with an applied force fo cos(ot), i.e., Mä+ci+kx=f, cos(or) can be expressed as x )= A cos(ot) + A, sin(or) and find the values of A, and A, that solve the differential equation in terms of M, c, k and fo. 5 points. b. Use the result from part a...
Homework 7: Undamped, 2-DOF System 1. A system with two masses of which the origins are at the SEPs is shown in Figure 1. The mass of m2 is acted by the external force of f(t). Assume that the cable between the two springs, k2 and k3 is not stretchable. Solve the following problems (a) Draw free-body diagrams for the two masses and derive their EOMs (b) Represent the EOMs in a matrix fornm (c) Find the undamped, natural frequencies...
QUESTION 31 Forced Undamped system, Find the general response amplitude at the chosen time for the given system parameters: m= 2 kg k = 200 N/m • Initial Conditions: Xo = 0.005 m to = 0.5 • Initial amplitude of the external force, 10 N • Excitation's frequency w 4 rad/sec m Find x(t) t = 10 sec, x(t = 10) = Take Test: Test Part-2 VULUTUIN Find the response amplitude at the chosen time for the given system parameters:...
Question Four (a) Determine the response x() for the undamped system subjected to the force F as shown below and given by: ts 0.1s F(t) =-600t +120 0.1 <t s 0.2 s t> 0.2s 600t 0 The mass is initially at rest with x 0 at time 1 0. (b) Find the displacement of the mass at 1 0.25 s. k 75 N/m 0.75 kg F), N 1, S 0.2 0.1
Question Four (a) Determine the response x() for the...
04: Derive the differential equation governing the motion of the one degree-of-freedom system by using Newton's method. Use the generalized coordinates shown in figure (5) (bar moment of inertia, 1-2 ml) Slender bar of mass m Figure (5)
Problem 2 (25 points): Consider an undamped single-degree-of-freedom system with k = 10 N/m, 41 = 10 N 92 = 8N, and m = 10 kg subjected to the harmonic force f(t) = qı sin(vt) + 92 cos(vt), v = 1 rad/ sec. Assume zero initial conditions (0) = 0 and c(0) = 0. Derive and plot the analytical solution of the displacement of the system. mm m = f(t) WWWWWWWW No friction Problem 2 Problem 3 (30 points): Using...
