measure the voltage and current in the load resistor

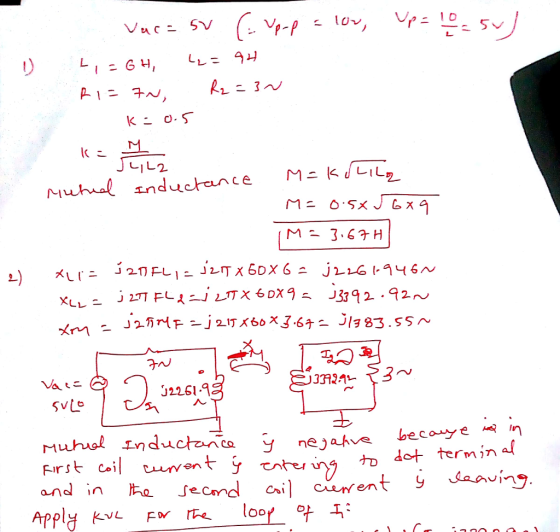

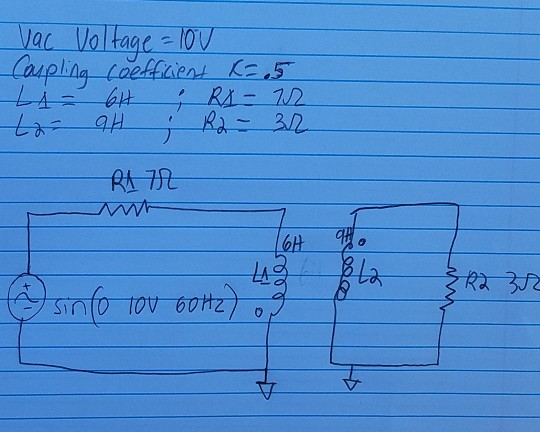

Question 1: Based on the coupling coefficient and the inductance values of the transformer, what is the mutual inductance?

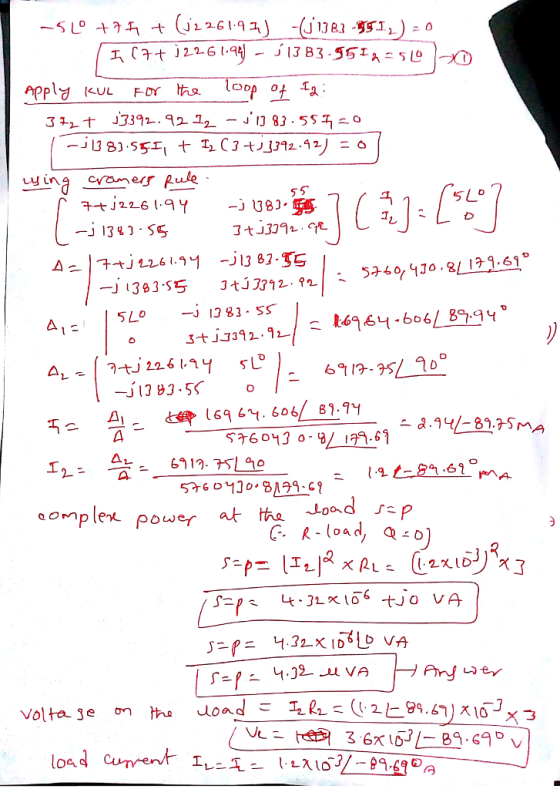

Question 2: What is complex power at the load
impedance?
measure the voltage and current in the load resistor Question 1: Based on the coupling coefficient...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
2. A resistor R and inductor L are connected in series with an AC voltage source with frequency fand maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejo), find expressions for Z and Ø. Write your answers in terms of the variables R, L, and o(= 21f). b. If the voltage source is described by the phasor V = Voejut, and the...
Figure 2 shows a power supply circuit comprising a transformer coupling the mains voltage on the left to the full-wave rectifier circuit on the right. It is given that the mains voltage (Vmains) is 230 V RMS, the mains frequency (fin) is 50 Hz, the transformer T1 has a ratio of 9:1, the load resistance (RL) is 1 k. and the capacitance of the capacitor (C) is 470 uF. a. Calculate the following: 1. the transformer AC output RMS voltage...
1. For the circuit shown in figure P-01, determine a. Coupling coefficient of coupled inductors! b. The voltage, Vx as shown in the circuit! C. Energy stored inside the coupled inductors! ML 2Ω Figure P-01 2. For the ideal transformer circuit shown in figure P-02, determine a. Primary and secondary currents, Ii and I2! b. Primary and secondary voltages, Yi and V2! C. Complex power supplied by the source 1, 2Ω 1:2 6090V ms svo 12Ω Figure P-02
1. For...
PLEASE SO PART C, THANK YOU WILL RATE.
A single-phase transformer with a 5:1 turns ratio is connected to a 600 V voltage source on the primary side, and a 5 Ω resistor on the secondary. A current of 22 amps of current is measured to flow through the 5 Ω resistor on the secondary side. The real power flowing into the transformer primary is measured at 2500 W. You can neglect Lm and Rc (the magnetizing inductance and core...
(20pts) Assume a three-phase load of(120+j40) MVA is supplied at rated voltage of69 kV generation source through the below network. The three-phase 138/69 kV transformer has a se impedance of (5.06+ 23.7a equivalent on the high voltage side. The distribution feeder that connects the load has a series impedance ofJ4 Ω. Using perunítanalysis with SB키00MVA, 2. determine: (a) The voltage (kV) and the current (A) at the generation source terminal (b) The total complex power provided by the generation source....
20. The voltage and current in an electrical load is given by v(t) = 100 cos(wt + 15°) and i(t) = 2 cos(wt – 15°). The reactive power Q in the load is 21. An electrical load absorbs an average power of 8kW at a leading power factor of 0.8. The reactive power in the load is 22. A balanced Y-connected load with an impedance of 104–30°N? per phase is supplied by a balanced A-connected source with Va = 208/30°V...
1.6 load not in a three phase system) is rated at 50 KVA with a power factor of 0.8 lagging. A what is the power factor angle? 1.7. For a balanced three phase system, if the wye connected load has impedance 50+20j, determine the total (a single load, complex power of the load if 120225° V rms (ignore the line impedance). 1.8 An ideal transformer has a tuns ratio (N2/NI) of 6, if the magnitude of the primary port (port...
3. If the voltage and current (both are rms values) supplied to a circuit or load by a source are Varm) = 460?0° V, Is(m)-1414L-45° A. Determine the a) the power supplied by the source which is dissipated as heat or energy in the circuit, b) the power stored in the reactive components and c) the power factor angle and power factor 4. An ideal transformer is rated to deliver 460 KVA at 380 V to a customer T Customer's...
EMM2802 MAYIJUNE 2016 QUESTION B A single phase transformer has a high voltage to low voltage ratio of 10. The following parameters are referred to low voltage side, with a supply of 200V. Equvalent Impedance referred to low woltage side Zev 0.1+jo.s a Load impedance referred to low voltage side R-4000 X-2310 Magnetizing Branch referred to low voltage side Draw an approximate equivalent circut with the given parameters and determine the following: 81 The magnetizing current (), the core loss...
