An oscillation LC circuit with a 10 mHsuperconducting inductor has angular frequency 1000 s^-1. What is...

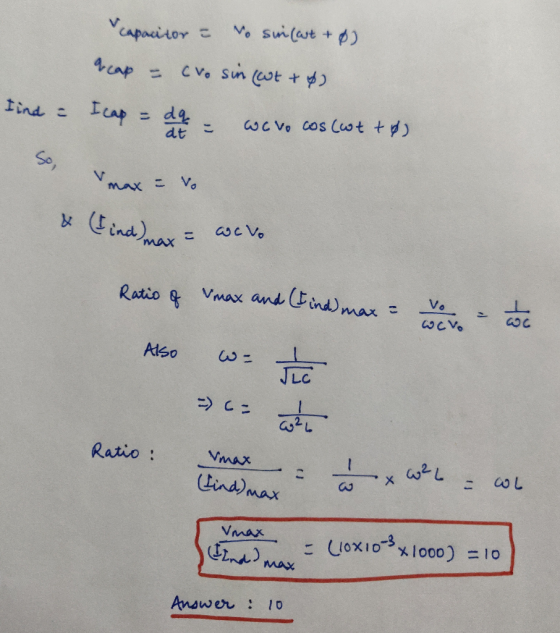

An oscillation LC circuit with a 10 mHsuperconducting inductor has angular frequency 1000 s^-1. What is the ratio of the maximum voltage on the capacitor over the maximum current in the inductor?
Homework Answers
Add Answer to:
An oscillation LC circuit with a 10 mHsuperconducting inductor
has angular frequency 1000 s^-1. What is...
The frequency of oscillation of the LC circuit in the figure is 200 kHz. At time...
The frequency of oscillation of the LC circuit in the figure is 200 kHz. At time t = 0 the upper capacitor plate has its maximum positive charge. Select ALL correct statements, e.g., enter AC. At t = 2.5 mu s, the charge on the lower plate has its maximum positive value. At t = 2.5 mu s, the energy is completely stored in the inductor. At t = 1.25 mu s, the charge on the lower plate has its...
a charged capacitor is connected to an ideal inductur LC circuit with a frequency of oscillation...
a charged capacitor is connected to an ideal inductur LC circuit with a frequency of oscillation t=1.6HZ at time t=0 the capacitor fully charged at a given instant later charge on the capacitor is measured to be 5.0uC and the current in the circuit is equal to 75uA. what is the maximum charge of the capacitor?
Chapter 31, Problem 002 The frequency of oscillation of a certain LC circuit is 261 kHz....
Chapter 31, Problem 002 The frequency of oscillation of a certain LC circuit is 261 kHz. At time t = 0, plate A of the capacitor has maximum positive charge. At what earliest time t > Owill (a) plate A again have maximum positive charge, (b) the other plate of the capacitor have maximum positive charge, and (c) the inductor have maximum magnetic field? (a) Number Units (b) Number Units (c) Number Units
The frequency of oscillation of the LC circuit in the figure is 200 kHz. At time t=0 the upper capacitor plate has...
The frequency of oscillation of the LC circuit in the figure is 200 kHz. At time t=0 the upper capacitor plate has its maximum positive charge. Select True or False for all statements. At t 2.50 us, the current is zero. At t-5.00 us, the current is maximum. At t 1.25 us, half the energy is stored in the capacitor, half in the inductor. At t-1.25 us, the charge on the lower plate has its maximum positive value. At t...
An LC circuit is built with an inductor L = 9.40 mH and a capacitor C...
An LC circuit is built with an inductor L = 9.40 mH and a capacitor C = 17.9 pF. If the capacitor voltage has its maximum value of V = 4.49 V at t = 0 s, what is the inductor current if the capacitor is fully discharged?
An LC circuit is built with an inductor L = 5.40 mH and a capacitor C...
An LC circuit is built with an inductor L = 5.40 mH and a capacitor C = 73.0 pF. If the capacitor voltage has its maximum value of V = 4.46 V at t = 0 s, what is the inductor current if the capacitor is fully discharged?
An LC circuit is built with an inductor L = 7.40 mH and a capacitor C...
An LC circuit is built with an inductor L = 7.40 mH and a capacitor C = 51.3 pF. If the capacitor voltage has its maximum value of V = 2.40 V at t = 0 s, what is the inductor current if the capacitor is fully discharged?
The frequency of oscillation of the LC circuit in the figure is 200 kHz. At time...
The frequency of oscillation of the LC circuit in the figure is 200 kHz. At time t=0 the upper capacitor plate has its maximum positive charge. Select True or False for all statements. HH will с At t=5.00 us, the charge on the lower plate has its maximum positive value. OA: Truel OB: False At t=5.00 us, the energy is completely stored in the capacitor. OA: Truell OB: False At t=1.25 us, the charge on the lower plate has its...
An LC circuit has a resonance frequency of If the inductor in the circuit has a...
An LC circuit has a resonance frequency of If the inductor in the circuit has a value of what is the capacitance of the circuit? 3.0kHz.
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s...
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s , ω2= 710 rad/s and ω3= 455 rad/s . Take R = 170 Ω , L = 0.935 H and C = 2.40 μF . What is the phase angle of the source voltage with respect to the current when ω = 1000 rad/s? 2. A series R–L–C circuit of R = 150 Ω , L = 0.915 H and C = 2.05 μF...
The frequency of oscillation of the LC circuit in the figure is 200 kHz. At time t = 0 the upper capacitor plate has its maximum positive charge. Select ALL correct statements, e.g., enter AC. At t = 2.5 mu s, the charge on the lower plate has its maximum positive value. At t = 2.5 mu s, the energy is completely stored in the inductor. At t = 1.25 mu s, the charge on the lower plate has its...
Chapter 31, Problem 002 The frequency of oscillation of a certain LC circuit is 261 kHz. At time t = 0, plate A of the capacitor has maximum positive charge. At what earliest time t > Owill (a) plate A again have maximum positive charge, (b) the other plate of the capacitor have maximum positive charge, and (c) the inductor have maximum magnetic field? (a) Number Units (b) Number Units (c) Number Units
The frequency of oscillation of the LC circuit in the figure is 200 kHz. At time t=0 the upper capacitor plate has its maximum positive charge. Select True or False for all statements. At t 2.50 us, the current is zero. At t-5.00 us, the current is maximum. At t 1.25 us, half the energy is stored in the capacitor, half in the inductor. At t-1.25 us, the charge on the lower plate has its maximum positive value. At t...
The frequency of oscillation of the LC circuit in the figure is 200 kHz. At time t=0 the upper capacitor plate has its maximum positive charge. Select True or False for all statements. HH will с At t=5.00 us, the charge on the lower plate has its maximum positive value. OA: Truel OB: False At t=5.00 us, the energy is completely stored in the capacitor. OA: Truell OB: False At t=1.25 us, the charge on the lower plate has its...
