♡ (le:1.8) We now attach two output terminals to the circuit from problem 13. The resulting circuit is shown in in Figure 1.4We now attach two output terminals to the circuit from problem 13. The resulting circuit is shown in in Figure 1.40. (a) What is the voltage between the terminals G and H ? (b) What current flows from G to H ? (c) If we connect a wire from G to H, what current flows through the wire and what is the voltage between G and H ?

0 0
Add a comment Improve this question Transcribed image text
Answer #1

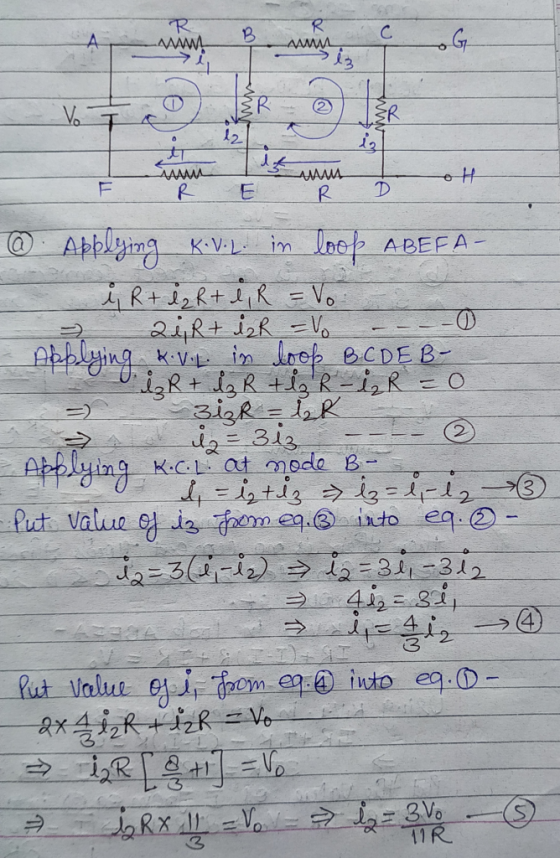

MAAM HMMM @ Applying K.V.1. in loop A BEFA - ů R + lz R + e, R = Vo - 21; R + d2R = Vo -- --0) Applying xovil in loop B C D EZvo HIR - blz 11 R som eq. - Bivon = big = ls - Vo Voltage between G and H. = Voltage between C&D = іх = V0 XR TIR - Vo b. th

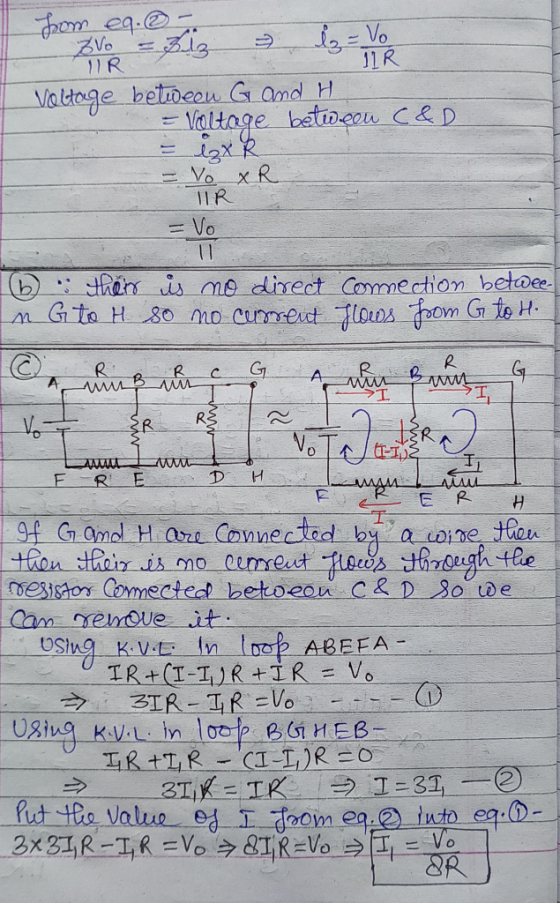

Since G and H are directly connected by a conducting wire whose resistance is zero (R=0).So voltage between G and H-

V=I, XR = I1 X0 = 0v
