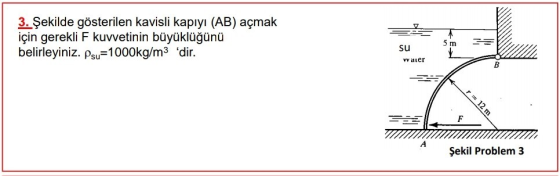

Find the magnitude of the force F required to open the
curved door (AB) shown in the figure
P water = 1000 g/m3

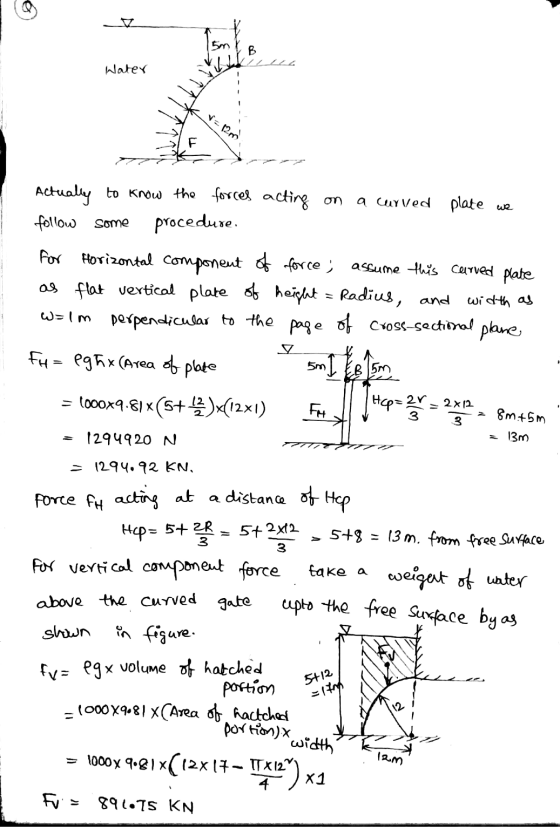

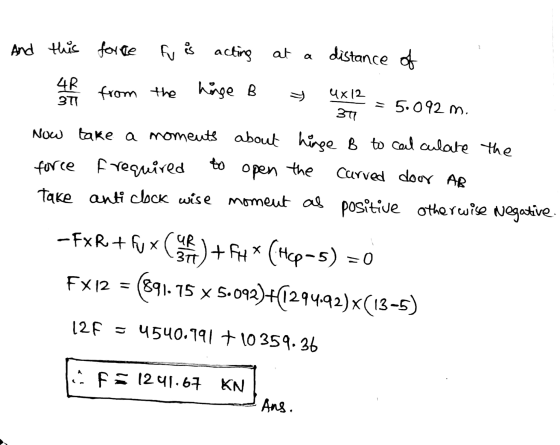

Homework Answers
If
you like the solution please give me your rating.Thank you
sir/madam.
Add Answer to:
Find the magnitude of the force F required to open the
curved door (AB) shown in...
4) Determine the magnitude of the resultant force the water exerts on the curved wall AB....
4) Determine the magnitude of the resultant force the water exerts on the curved wall AB. The wall is 2 m wide. Draw the pressure prism in scale with AutoCAD 4 m 45° 45°
3. (Points-8) A submarine is 30.5 m below the water surface as shown in the figure below. Find th...
3. (Points-8) A submarine is 30.5 m below the water surface as shown in the figure below. Find the minimum force (F) required to open the circular hatch (door) when applied as shown. The tore applied perpendicular to the hatch as shown in the figure. The pressure inside the submarine is eq atmospheric pressure. Take density of water to be 1000 kg/m,-9.8 m/s and Pam - 100 kPa Water Surface atm 30.5 m circle of radius R with centroid at...
In opening a door, a 57.3 N force is applied as shown in the figure below....
In opening a door, a 57.3 N force is applied as shown in the figure below. Find the torque produced by this force with respect to point O. (Let r-0.880 m and θ-68.5.) magnitude direction clockwise
Problem 2 A concrete dam has a curved surface and restrain water (p=1000kg/m3) at a depth...
Problem 2 A concrete dam has a curved surface and restrain water (p=1000kg/m3) at a depth H=2 m. The trace of the surface is a parabola described by the equation: z= 0.2x2 . dam 1- Determine the gage pressure distribution in the water 2- Determine the magnitude of the pressure force F acting on the curved dam surface per unit width (dimension normal to the page) of the gate. [Solution: F=45,780 N] 3-Determine the angle of that force relative to...
Q2) Gate AB in the Figure 2 is semicircular. Find the total hydrostatic force and its line of action on the gate. (10 m...
Q2) Gate AB in the Figure 2 is semicircular. Find the total hydrostatic force and its line of action on the gate. (10 marks) Y-9790 N/m3 Note: for the centroid and moment of inertial of the semicircle refer to Appendix L in your text book 5 m Water Gate: 3 m Side view Figure 2
Q2) Gate AB in the Figure 2 is semicircular. Find the total hydrostatic force and its line of action on the gate. (10 marks) Y-9790...
The inclined pole is subjected to a 5 kN magnitude force vector F acting from point...
The inclined pole is subjected to a 5 kN magnitude force vector F acting from point B towards point C. (a) Determine the angle that exists between B (1,5,6) m the force vector F and the pole AB (b) Determine the magnitude of the component of the force vector F that acts parallel to the pole AB (c) Determine the magnitude of the component of the force vector that acts perpendicular to the pole AbB C (4, 3, 0) m...
please answer all these questions Archimedes Principle - Upward Tension Additional Force As shown in the...
please answer all these questions
Archimedes Principle - Upward Tension Additional Force As shown in the above figure, a solid object has a density of 1200 kg/m3 and a volume of 7.80x10^-5 m3. It is lowered on a string into water and completely submerged without touching the container. The density of water is 1000 kg/m3. Keep 3 decimal places in all answers. (Don't use scientific notations.) Without the string, would the solid object sink in water or float in water?...
Archimedes Principle - Downward Push Additional Force As shown in the above figure, a solid block...
Archimedes Principle - Downward Push Additional Force As shown in the above figure, a solid block with a mass of 6.00 kg and a density of 790.00 kg/m^3 kg/m3 floats quietly in water (density of watser = 1000 kg/m3.) (a) Calculate the total volume (in m3) of the block. Keep 4 decimal places in all answers. (Don't use scientific notations.) Enter a number Submit (5 attempts remaining) Draw a force diagram (as practice, no submission) including all the forces on...
5J A person applies a force of magnitude F as shown to the axle of a...
5J A person applies a force of magnitude F as shown to the axle of a uniform disc with mass Mand radius R (such that the force is applied at the center of mass of the disc). The ground has a coefficient of static friction of 0.500 and a coefficient of kinetic friction of 0.400. a) Below a critical F, the disc rolls without slipping. Find this critical F in terms of M, R, and g. F b) Calculate the...
A force F with a magnitude 280 ib is applied as shown. Determine 1 The projection...
A force F with a magnitude 280 ib is applied as shown. Determine 1 The projection of F along line OA The moment about point A 2 The moment about line BR 3. 8 in 6 in F 10 in 280 1b 13 in 7 in R
A force F with a magnitude 280 ib is applied as shown. Determine 1 The projection of F along line OA The moment about point A 2 The moment about line BR 3....
4) Determine the magnitude of the resultant force the water exerts on the curved wall AB. The wall is 2 m wide. Draw the pressure prism in scale with AutoCAD 4 m 45° 45°
3. (Points-8) A submarine is 30.5 m below the water surface as shown in the figure below. Find the minimum force (F) required to open the circular hatch (door) when applied as shown. The tore applied perpendicular to the hatch as shown in the figure. The pressure inside the submarine is eq atmospheric pressure. Take density of water to be 1000 kg/m,-9.8 m/s and Pam - 100 kPa Water Surface atm 30.5 m circle of radius R with centroid at...
In opening a door, a 57.3 N force is applied as shown in the figure below. Find the torque produced by this force with respect to point O. (Let r-0.880 m and θ-68.5.) magnitude direction clockwise
Problem 2 A concrete dam has a curved surface and restrain water (p=1000kg/m3) at a depth H=2 m. The trace of the surface is a parabola described by the equation: z= 0.2x2 . dam 1- Determine the gage pressure distribution in the water 2- Determine the magnitude of the pressure force F acting on the curved dam surface per unit width (dimension normal to the page) of the gate. [Solution: F=45,780 N] 3-Determine the angle of that force relative to...
Q2) Gate AB in the Figure 2 is semicircular. Find the total hydrostatic force and its line of action on the gate. (10 marks) Y-9790 N/m3 Note: for the centroid and moment of inertial of the semicircle refer to Appendix L in your text book 5 m Water Gate: 3 m Side view Figure 2
Q2) Gate AB in the Figure 2 is semicircular. Find the total hydrostatic force and its line of action on the gate. (10 marks) Y-9790...
The inclined pole is subjected to a 5 kN magnitude force vector F acting from point B towards point C. (a) Determine the angle that exists between B (1,5,6) m the force vector F and the pole AB (b) Determine the magnitude of the component of the force vector F that acts parallel to the pole AB (c) Determine the magnitude of the component of the force vector that acts perpendicular to the pole AbB C (4, 3, 0) m...
please answer all these questions
Archimedes Principle - Upward Tension Additional Force As shown in the above figure, a solid object has a density of 1200 kg/m3 and a volume of 7.80x10^-5 m3. It is lowered on a string into water and completely submerged without touching the container. The density of water is 1000 kg/m3. Keep 3 decimal places in all answers. (Don't use scientific notations.) Without the string, would the solid object sink in water or float in water?...
Archimedes Principle - Downward Push Additional Force As shown in the above figure, a solid block with a mass of 6.00 kg and a density of 790.00 kg/m^3 kg/m3 floats quietly in water (density of watser = 1000 kg/m3.) (a) Calculate the total volume (in m3) of the block. Keep 4 decimal places in all answers. (Don't use scientific notations.) Enter a number Submit (5 attempts remaining) Draw a force diagram (as practice, no submission) including all the forces on...
5J A person applies a force of magnitude F as shown to the axle of a uniform disc with mass Mand radius R (such that the force is applied at the center of mass of the disc). The ground has a coefficient of static friction of 0.500 and a coefficient of kinetic friction of 0.400. a) Below a critical F, the disc rolls without slipping. Find this critical F in terms of M, R, and g. F b) Calculate the...
A force F with a magnitude 280 ib is applied as shown. Determine 1 The projection of F along line OA The moment about point A 2 The moment about line BR 3. 8 in 6 in F 10 in 280 1b 13 in 7 in R
A force F with a magnitude 280 ib is applied as shown. Determine 1 The projection of F along line OA The moment about point A 2 The moment about line BR 3....
