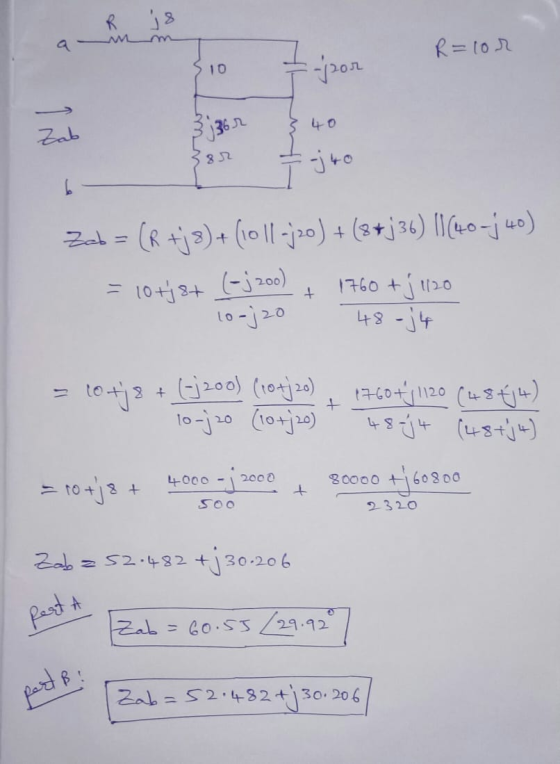

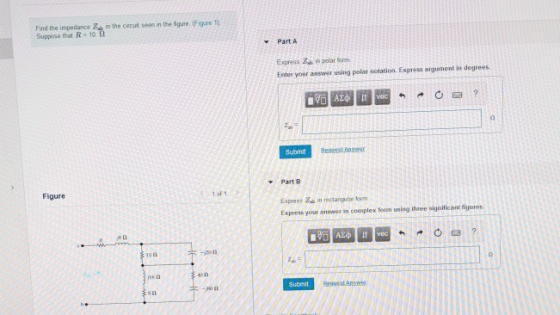

Find the impedance in the cecu seen in the figure (Figure 11 Suppose that R= 10...
P 14.66 Part A Reflect the resistances and voltage sources to the left-hand side of the...
P 14.66 Part A Reflect the resistances and voltage sources to the left-hand side of the circuit shown in the figure and solve for the current I (Figure 1) Enter your answer using polar notation. Express argument in degrees. vec 4 φαν Α I Request Answer Submit Figure 1 of 1 Part B Repeat with the dot moved to the top of the right-hand coll. Enter your answer using polar notation. Express argument in degrees. Π ΑΣΦ vec ? 25/...
The expressions for the steady-state voltage and current at the terminals of the circuit seen in...
The expressions for the steady-state voltage and current at the terminals of the circuit seen in the figure are Ug-320 cos(5000nt + 71°)V g-4 sin(5000t 121°) A (Figure 1) Part A What is the impedance seen by the source? Enter your answer using polar notation. Express argument in degrees Submit Request Answer Part B By how many microseconds is the current out of phase with the voltage? Express your answer with the appropriate units. 7 Circuit
Problem 9.14 2 of 13 Review I Constants The expressions for the steady-state voltage and current...
Problem 9.14 2 of 13 Review I Constants The expressions for the steady-state voltage and current at the terminals of the circuit seen in the figure are g 350 cos(5000xt85°) V, ig=8 sin(5000rt 108°) A (Figure 1) Part A What is the impedance seen by the source? Express your answer in ohms to three significant figures using polar notation. Express argument in degrees. VA D T vec Z=43.75 27 Ω Previous Answers Request Answer Submit Incorrect; Try Again; 3 attempts...
Problem 1 Part A A balanced three-phase circuit has the following characteristics: • Y-Y connected; •...
Problem 1 Part A A balanced three-phase circuit has the following characteristics: • Y-Y connected; • The line voltage at the source, Vab, is 90/32-60° V: • The phase sequence is positive • The line impedance is 3+2/; . The load impedance is 37–328 /¢. Calculate the phase voltage at the a terminal of the source. Express your answer in volts to three significant figures. Enter your answer using angle notation. Express argument in degrees. View Available Hints) VAX vec...
Part A A delta-connected source delivers shown in (Figure 1). The rms line-to-line voltage at the...
Part A A delta-connected source delivers shown in (Figure 1). The rms line-to-line voltage at the source is Vbrms = 440 V The load impedance is Zg-10-J5 power to a delta-connected load, as Find LaA Enter your answer using polar notation. Express argument in degrees X5五返仮IXI rzB (X)* X-10n Submit Previous Answers Request Answer Figure < 1of1 Incorrect: Ty Again; 3 attempts remaining: no points deducted 0.5 +j05 Part B 0.5ザ0.5 Find VAB Enter your answer using polar notation. Express...
Part A) Specify the magnitude and phase angle of the line current IaA. Enter your answer...
Part A) Specify the magnitude and phase angle of the line
current IaA.
Enter your answer using polar notation. Express argument in
degrees.
Part B
Specify the magnitude and phase angle of the line current
IbB.
Enter your answer using polar notation. Express argument in
degrees.
Part C
Specify the magnitude and phase angle of the line current
IcC.
Enter your answer using polar notation. Express argument in
degrees.
Part D
Specify the magnitude and phase angle of the line...
The parameters in the circuit shown in the figure are Ri = 0.1 Ω ala =0.8...
The parameters in the circuit shown in the figure are Ri = 0.1 Ω ala =0.8 Ω, R2 = 24 Ω, wla = 32 Ω, and VL = 200 +jo V (Figure 1) ▼ Part A Calculate the phasor voltage V Enter your answer using polar notation. Express argument in degrees Figure < 1of1 Submit Request Answer Part B Connect a capacitor in parallel with the inductor, hold Vi, constant, and adjust the capacitor until the magnitude of is a...
18 P 5.47 18 of19 Part A Consider the circuit shown in (Figure 1). Find the...
18
P 5.47 18 of19 Part A Consider the circuit shown in (Figure 1). Find the phasor for the voltage Enter your answer using polar notation. Express argument in degrees Figure 1 of 1 Submit Part B Find th๑ phasor for the current through the resistor. Enter your answer using polar notation. Express argument in degrees I H 0.5 cos(1o0r) Submit I need all the parts please Part C and a detailed explination Fidh phesor or the how to plot...
The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit shown in...
The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit shown in A I į 480, kVAI 1 08 pf Q Tap image to zoom is 1900 V.At this voltage, the load is absorbing 480 kVA at 0.8 pf lag Part A Use VAN as the reference and express Ina in polar form. Enter your answer using polar notation. Express argument in degrees. Submit Request Answer Part B Calculate the complex power associated with the ideal...
Problem 9.35 Review | Cor Part A Find the value of Z in the circuit seen...
Problem 9.35 Review | Cor Part A Find the value of Z in the circuit seen in the figure if V = 119-40i V. In = 33+191 A and V = 144+28i V (Figure 1) Express your answer in complex form. VO AED 1 vec Submit Request Answer < Return to Assignment Provide Feedback Figure 1 of 1 > 2012 12 12 16 22 V -100
P 14.66 Part A Reflect the resistances and voltage sources to the left-hand side of the circuit shown in the figure and solve for the current I (Figure 1) Enter your answer using polar notation. Express argument in degrees. vec 4 φαν Α I Request Answer Submit Figure 1 of 1 Part B Repeat with the dot moved to the top of the right-hand coll. Enter your answer using polar notation. Express argument in degrees. Π ΑΣΦ vec ? 25/...
The expressions for the steady-state voltage and current at the terminals of the circuit seen in the figure are Ug-320 cos(5000nt + 71°)V g-4 sin(5000t 121°) A (Figure 1) Part A What is the impedance seen by the source? Enter your answer using polar notation. Express argument in degrees Submit Request Answer Part B By how many microseconds is the current out of phase with the voltage? Express your answer with the appropriate units. 7 Circuit
Problem 9.14 2 of 13 Review I Constants The expressions for the steady-state voltage and current at the terminals of the circuit seen in the figure are g 350 cos(5000xt85°) V, ig=8 sin(5000rt 108°) A (Figure 1) Part A What is the impedance seen by the source? Express your answer in ohms to three significant figures using polar notation. Express argument in degrees. VA D T vec Z=43.75 27 Ω Previous Answers Request Answer Submit Incorrect; Try Again; 3 attempts...
Problem 1 Part A A balanced three-phase circuit has the following characteristics: • Y-Y connected; • The line voltage at the source, Vab, is 90/32-60° V: • The phase sequence is positive • The line impedance is 3+2/; . The load impedance is 37–328 /¢. Calculate the phase voltage at the a terminal of the source. Express your answer in volts to three significant figures. Enter your answer using angle notation. Express argument in degrees. View Available Hints) VAX vec...
Part A A delta-connected source delivers shown in (Figure 1). The rms line-to-line voltage at the source is Vbrms = 440 V The load impedance is Zg-10-J5 power to a delta-connected load, as Find LaA Enter your answer using polar notation. Express argument in degrees X5五返仮IXI rzB (X)* X-10n Submit Previous Answers Request Answer Figure < 1of1 Incorrect: Ty Again; 3 attempts remaining: no points deducted 0.5 +j05 Part B 0.5ザ0.5 Find VAB Enter your answer using polar notation. Express...
Part A) Specify the magnitude and phase angle of the line
current IaA.
Enter your answer using polar notation. Express argument in
degrees.
Part B
Specify the magnitude and phase angle of the line current
IbB.
Enter your answer using polar notation. Express argument in
degrees.
Part C
Specify the magnitude and phase angle of the line current
IcC.
Enter your answer using polar notation. Express argument in
degrees.
Part D
Specify the magnitude and phase angle of the line...
The parameters in the circuit shown in the figure are Ri = 0.1 Ω ala =0.8 Ω, R2 = 24 Ω, wla = 32 Ω, and VL = 200 +jo V (Figure 1) ▼ Part A Calculate the phasor voltage V Enter your answer using polar notation. Express argument in degrees Figure < 1of1 Submit Request Answer Part B Connect a capacitor in parallel with the inductor, hold Vi, constant, and adjust the capacitor until the magnitude of is a...
18
P 5.47 18 of19 Part A Consider the circuit shown in (Figure 1). Find the phasor for the voltage Enter your answer using polar notation. Express argument in degrees Figure 1 of 1 Submit Part B Find th๑ phasor for the current through the resistor. Enter your answer using polar notation. Express argument in degrees I H 0.5 cos(1o0r) Submit I need all the parts please Part C and a detailed explination Fidh phesor or the how to plot...
The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit shown in A I į 480, kVAI 1 08 pf Q Tap image to zoom is 1900 V.At this voltage, the load is absorbing 480 kVA at 0.8 pf lag Part A Use VAN as the reference and express Ina in polar form. Enter your answer using polar notation. Express argument in degrees. Submit Request Answer Part B Calculate the complex power associated with the ideal...
Problem 9.35 Review | Cor Part A Find the value of Z in the circuit seen in the figure if V = 119-40i V. In = 33+191 A and V = 144+28i V (Figure 1) Express your answer in complex form. VO AED 1 vec Submit Request Answer < Return to Assignment Provide Feedback Figure 1 of 1 > 2012 12 12 16 22 V -100
