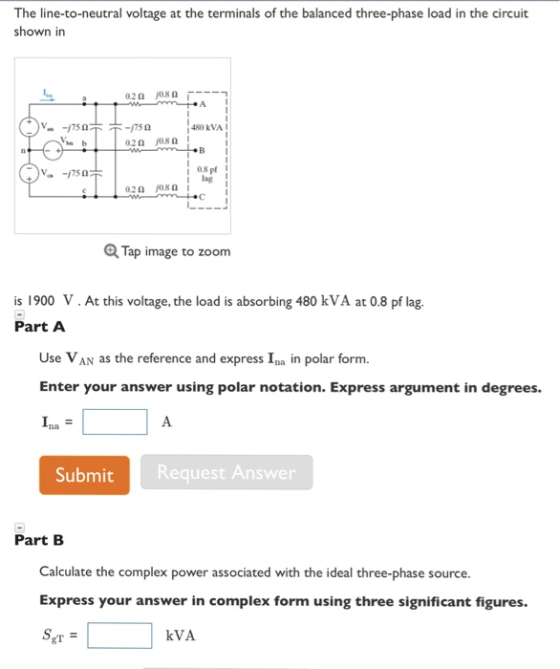

The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit shown in...
Problem 3: The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit...
Problem 3: The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit shown in Fig. 3 is 1200V. At this voltage, the load is absorbing 500kVA at 0.96 pf lag. a) Use Van as the reference and express Ina in the polar form. b) Calculate the complex power associated with the ideal three-phase source. c) Check that the total average power delivered equals the total average power absorbed. d) Check that the total magnetizing reactive power...
2. The line voltage VAB at the terminals of a balanced three-phase A-connected load is 4000<0°...
2. The line voltage VAB at the terminals of a balanced three-phase A-connected load is 4000<0° V. The line current is laA is 60.200 A. Determine the following; a. all the load currents (if the sequence is positive (abcabec.... (3 pts) b. all the load currents (if the sequence is negative (acbacb..... (3 pts) c. per-phase impedance of the load (3 pts)
1. The phase voltage at the terminals of a balanced three-phase Y-connected load has an amplitude...
1. The phase voltage at the terminals of a balanced three-phase Y-connected load has an amplitude of 120V. The load has an impedance of 39 + j28Ω per phase. It is fed from a line having an impedance of 0.8 + j1.5 Ω per phase. The Y-connected source at the sending end of the line has an internal impedance of 0.2 + j0.5 Ω per phase. Calculate: a) The three line currents b) The three-phase voltages at the load c) ...
P 5.103 A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL 440 V...
P 5.103 A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 05-11 inductance in series with a 30Ω resistance. Assume that the phase of Van is zero. Part A Pl Find the line-to-neutral voltage phasor Van Enter your answer using polar notation. Express argument in degrees. 이미? Subrmit X Incorrect, Try Again; 5 attempts remaining Part B...
The following three-phase, balanced loads are connected across a three-phase, Y-connected 60 Hz source with a...
The following three-phase, balanced loads are connected across a three-phase, Y-connected 60 Hz source with a line-to-line voltage of 480 V. The loads are described below: • Load 1: ∆-connected, total three-phase apparent power is 30 kVA at 0.95 power factor lagging. • Load 2: ∆-connected, total three-phase active power is 20 kW at 0.7 power factor lagging. • Load 3: Y-connected, phase current is 30 A, and power factor is 0.9 pf leading. (a) Calculate the total complex power...
A three-phase load of 15 kVA with a PF of 0.8 lagging is connected in parallel...
A three-phase load of 15 kVA with a PF of 0.8 lagging is connected in parallel with a three-phase load of 36 kW at 0.6 PF leading. The line-line voltage is 2000V. a) Find the total complex power and power factor. Is it inductive or capacitive? b) How much kVAR is needed to make the PF unity? c) What is the magnitude of the current going into the total load?
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
Item 6 A three-phase supples 17 kVA with a power factor of 0.75 lagging to a...
Item 6 A three-phase supples 17 kVA with a power factor of 0.75 lagging to a sequence Y-connected source Part A parallel combination of a Y-connected load and a ? connected load The Y-connected load uses 12 kVA at a power factor of 0 6 lagging and has an a-phase current of 122-30 A Find the complex power per phase of the ?-connected load Enter your answer using polar notation. Express argument in degrees. VA Submit Part B Find the...
per phase. The line feeds a balanced delta-connected load, which absorbs a total complex power of...
per phase. The line feeds a balanced delta-connected load, which absorbs a total complex power of 12 + 15 kVA. The line voltage at the load end has A three-phase line has an impedance of 1 + 3 a magnitude of 220 V. References eBook & Resources Section Break Difficulty: Medium Learning Objective: Understanding and analyzing power in balanced three-phase circuits. value: 10.00 points Required information Find the source power factor. The source power factor pf = 327.88.

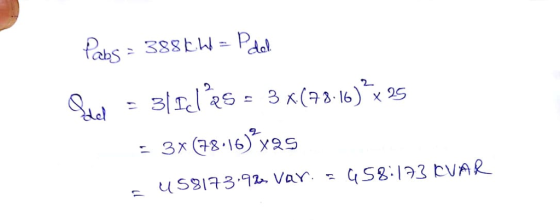

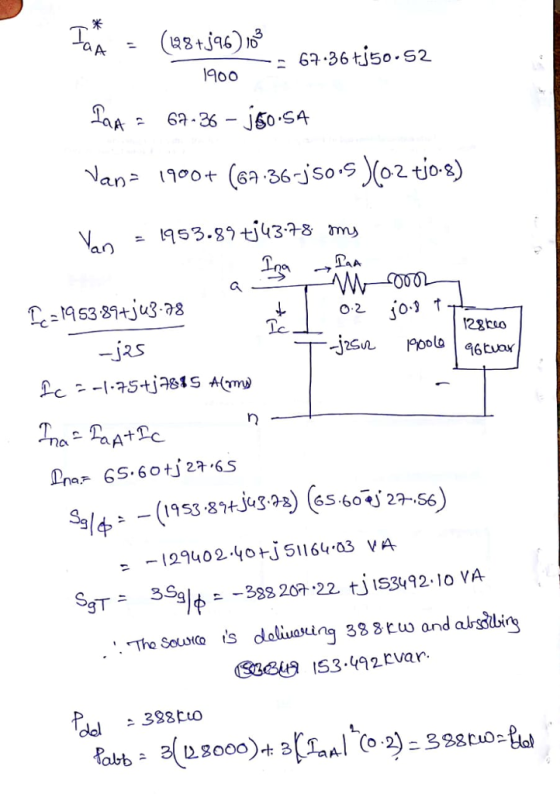

Problem 3: The line-to-neutral voltage at the terminals of the balanced three-phase load in the circuit shown in Fig. 3 is 1200V. At this voltage, the load is absorbing 500kVA at 0.96 pf lag. a) Use Van as the reference and express Ina in the polar form. b) Calculate the complex power associated with the ideal three-phase source. c) Check that the total average power delivered equals the total average power absorbed. d) Check that the total magnetizing reactive power...
2. The line voltage VAB at the terminals of a balanced three-phase A-connected load is 4000<0° V. The line current is laA is 60.200 A. Determine the following; a. all the load currents (if the sequence is positive (abcabec.... (3 pts) b. all the load currents (if the sequence is negative (acbacb..... (3 pts) c. per-phase impedance of the load (3 pts)
P 5.103 A balanced positive-sequence wye-connected 60-Hz three-phase source has line-to-line voltages of VL 440 V rms. This source is connected to a balanced wye-connected load. Each phase of the load consists of a 05-11 inductance in series with a 30Ω resistance. Assume that the phase of Van is zero. Part A Pl Find the line-to-neutral voltage phasor Van Enter your answer using polar notation. Express argument in degrees. 이미? Subrmit X Incorrect, Try Again; 5 attempts remaining Part B...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
Item 6 A three-phase supples 17 kVA with a power factor of 0.75 lagging to a sequence Y-connected source Part A parallel combination of a Y-connected load and a ? connected load The Y-connected load uses 12 kVA at a power factor of 0 6 lagging and has an a-phase current of 122-30 A Find the complex power per phase of the ?-connected load Enter your answer using polar notation. Express argument in degrees. VA Submit Part B Find the...
per phase. The line feeds a balanced delta-connected load, which absorbs a total complex power of 12 + 15 kVA. The line voltage at the load end has A three-phase line has an impedance of 1 + 3 a magnitude of 220 V. References eBook & Resources Section Break Difficulty: Medium Learning Objective: Understanding and analyzing power in balanced three-phase circuits. value: 10.00 points Required information Find the source power factor. The source power factor pf = 327.88.
