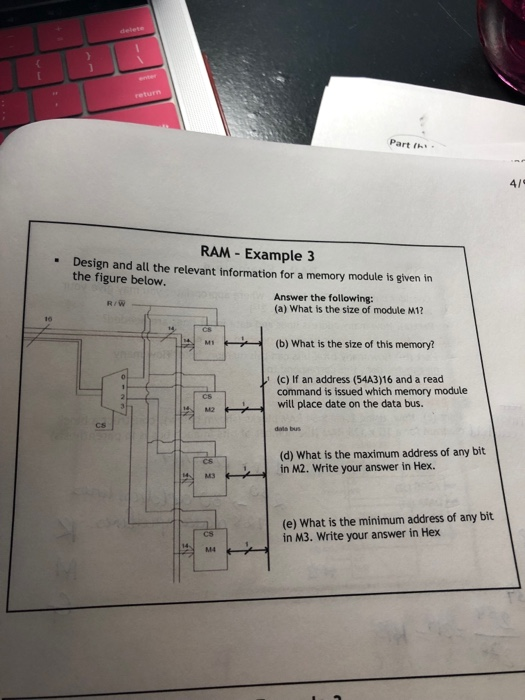

Part RAM - Example 3 Design and all the relevant information for a memory module is...
Consider 512Kx8bits dynamic RAM chips where the memory access time is 2/3 of the memory cycle...
Consider 512Kx8bits dynamic RAM chips where the memory access time is 2/3 of the memory cycle time. These chips have an Address Bus, a bi-directional Data Bus, a Read/Write control line and a Chip Select line. (a) Draw the diagram of a memory organization that will contain 4 megabytes, will have a 32-bit bi-directional data bus and will yield one word (32-bits) every access time if words are read from consecutive memory locations (in bursts). Clearly show and explain the...
can you explain the solution step by step? I don't understand any.. 3. [Memory Design] Build a 2K*16 bit ROM using any number of lK*8 bit ROMs The block you use to represent 2K* 16 ROM should hav...
can you explain the solution step by step?
I don't understand any..
3. [Memory Design] Build a 2K*16 bit ROM using any number of lK*8 bit ROMs The block you use to represent 2K* 16 ROM should have a 11-bit wide address input, a chip-select (CS) input, and a 8-bit wide data output. (Hint: A[9:0]: 10-bit address input, CS: a 1-bit chip-select input, Dout[7:0]: 8-bit data output.) 10 A[9:0] 1K X8 8 Dout 7:0 ROM CS 1 Ans: A19:0 49이...
5 Pages No. 4 Points Design ques tion . (19 points) 6. 4bits RAM memory chips...
5 Pages No. 4 Points Design ques tion . (19 points) 6. 4bits RAM memory chips to design tempt we use some 2K * In a computer, a 2K 8bits main memory module. Using the bit expansion method to expand er the the capacity of storage . nts) Answer the questions as follows : (1) How many 2K*4bits memory chips should be used? (4 pointsl are (2) How many address lines and data lines are there in memory system. (4...
Problem #1 (25 points) Address Space, Memory Consider a hypothetical 18-bit processor called HYP18 with all...
Problem #1 (25 points) Address Space, Memory Consider a hypothetical 18-bit processor called HYP18 with all registers, including PC and SP, being 18 bits long. The smallest addressable unit in memory is an 8-bit byte. A. (4 points) What is the size of HYP18's address space in bytes and KB? How many address lines does HYP18 require? Address space: Bytes Address space: KB (KiloBytes). Address bus lines: B. (6 points) Assume that first quarter of the address space is dedicated...
Given a computer with 16-bit data bus and 20-bit address bus, what is the maximum memory...
Given a computer with 16-bit data bus and 20-bit address bus,
what is the maximum memory capacity? Design the memory using the
128k × 8 memory chip shown below.
zy Unwersityof North Cao Git Immersion Indwidua welcome tothe UNC Ch x Individual Assgrment 3 x C file:///C/Users/brute/Dow nloads/HW3.pd Apps Web Authentication Welcome to Moodle Welcome to the Canv Zy Home zyBooks Hw3.pdf Address Chip select Read/Write' 128K x 8 Dot RAM Ask me anything 654 PM 3/14/2017
Please write down the solution in detail. 3. (20 pts) Given two 32-bit byte-addressable machines, M1,...
Please write down the solution in detail.
3. (20 pts) Given two 32-bit byte-addressable machines, M1, and M2, with Mų follow- ing Big Endian and M2 following Small Endian format, it is found that the data Oxabcd1234 (a 32-bit hex number) and Oxffee5678 are returned from the memory when the address 0x00201028 and 0x0020102c are given, respectively, for a read- word operation from both machines. What will you get from memory if you issue a read for (a) a halfword...
A computer system has a 20-bit address bus and can address an 8-bit wide memory. The...
A computer system has a 20-bit address bus and can address an 8-bit wide memory. The memory of this computer system contains 64 Kbytes of ROM and 256 Kbytes of RAM. The ROM and RAM form a contiguous block of memory starting at address 0. What is the maximum number of addressable memory locations can this computer system address? Give your answer in power of 2. Draw a memory map for the computer system. Indicate the starting and ending addresses...
Explain your reasoning for the following: a) Assume that the 4 x 3 memory given in...
Explain your reasoning for the following: a) Assume that the 4 x 3 memory given in the text book is available in a single chip. How many of these chips are needed to implement a 16x12 memory system? What is the total number of D FFs used for this memory system? b) Find the number of cells in a memory chip that has capacity of 32 Kilobits and is organized as 16-bit cells. How many address and data pins does...
Exercise 1. What is the size of the memory for the microprocessor if it has 24-bit...
Exercise 1. What is the size of the memory for the microprocessor if it has 24-bit address lines (bus)? Furthermore, give the starting address and the last address of the memory. 2. List the operation modes of the ARM Cortex-M3. 3. What is the function of register R13? Register R14? Register R15? 4. On an ARM Cortex-M3, in any given mode, how many registers does a programmer see at one time? 5. Which bits of the ARM Cortex-M3 status registers...
Memory Design Problem: Problem Specifications: Ram chips have 28 pins The computer needs 2M addresses of...
Memory Design Problem: Problem Specifications: Ram chips have 28 pins The computer needs 2M addresses of 16 bits per address As usual, need V+, GND, R/W, Chip-Select A)Determine the best organization. Explain/justify your answer and show all your work. B) Draw a schematic diagram of your solution.
can you explain the solution step by step?
I don't understand any..
3. [Memory Design] Build a 2K*16 bit ROM using any number of lK*8 bit ROMs The block you use to represent 2K* 16 ROM should have a 11-bit wide address input, a chip-select (CS) input, and a 8-bit wide data output. (Hint: A[9:0]: 10-bit address input, CS: a 1-bit chip-select input, Dout[7:0]: 8-bit data output.) 10 A[9:0] 1K X8 8 Dout 7:0 ROM CS 1 Ans: A19:0 49이...
5 Pages No. 4 Points Design ques tion . (19 points) 6. 4bits RAM memory chips to design tempt we use some 2K * In a computer, a 2K 8bits main memory module. Using the bit expansion method to expand er the the capacity of storage . nts) Answer the questions as follows : (1) How many 2K*4bits memory chips should be used? (4 pointsl are (2) How many address lines and data lines are there in memory system. (4...
Problem #1 (25 points) Address Space, Memory Consider a hypothetical 18-bit processor called HYP18 with all registers, including PC and SP, being 18 bits long. The smallest addressable unit in memory is an 8-bit byte. A. (4 points) What is the size of HYP18's address space in bytes and KB? How many address lines does HYP18 require? Address space: Bytes Address space: KB (KiloBytes). Address bus lines: B. (6 points) Assume that first quarter of the address space is dedicated...
Given a computer with 16-bit data bus and 20-bit address bus,
what is the maximum memory capacity? Design the memory using the
128k × 8 memory chip shown below.
zy Unwersityof North Cao Git Immersion Indwidua welcome tothe UNC Ch x Individual Assgrment 3 x C file:///C/Users/brute/Dow nloads/HW3.pd Apps Web Authentication Welcome to Moodle Welcome to the Canv Zy Home zyBooks Hw3.pdf Address Chip select Read/Write' 128K x 8 Dot RAM Ask me anything 654 PM 3/14/2017
Please write down the solution in detail.
3. (20 pts) Given two 32-bit byte-addressable machines, M1, and M2, with Mų follow- ing Big Endian and M2 following Small Endian format, it is found that the data Oxabcd1234 (a 32-bit hex number) and Oxffee5678 are returned from the memory when the address 0x00201028 and 0x0020102c are given, respectively, for a read- word operation from both machines. What will you get from memory if you issue a read for (a) a halfword...
Exercise 1. What is the size of the memory for the microprocessor if it has 24-bit address lines (bus)? Furthermore, give the starting address and the last address of the memory. 2. List the operation modes of the ARM Cortex-M3. 3. What is the function of register R13? Register R14? Register R15? 4. On an ARM Cortex-M3, in any given mode, how many registers does a programmer see at one time? 5. Which bits of the ARM Cortex-M3 status registers...
