Homework Answers
Add Answer to:

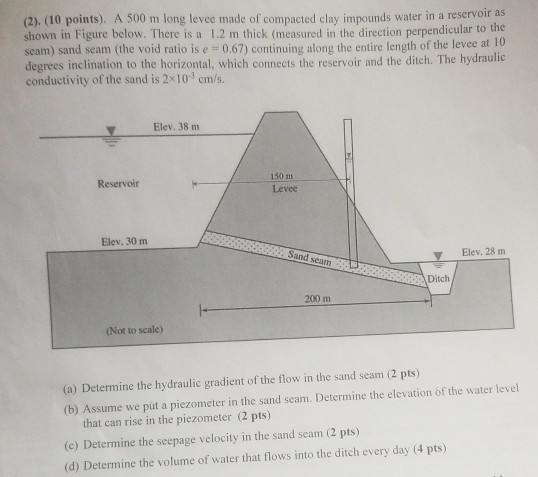

(2). (10 points). A 500 m long levee made of compacted clay impounds water in a...
The cross section of a levee that is 750 m long and is underlain by a...
The cross section of a levee that is 750 m long and is underlain by a 2-m-thick 3/ permeable sand layer. The hydraulic conductivity of the sand layer is 3.2m/day. (5 marks) Determine the quantity of water which flows into the ditch in m'/day Elv, 160 m Levee Elv. 150 m 2 m Sand Ditch 125 m Calculate the factor of safety against downstream heave with H 4/ = 12m, H2 2m and D 8m (5 marks) Sheet pile H2...
2. (15 points) The following figure shows a clay layer under an earth-filled dam with a...
2. (15 points) The following figure shows a clay layer under an earth-filled dam with a reservoir on the right side and a pond on the left side of the dam. (1) (10 points) Determine the seepage loss through the clay layer when hydraulic conductivity K = 10-4 m/s, H = 20 m, L = 50 m, and b = 10m. (2) (5 points) A chemical company suddenly dumps a conservative chemical substance into the reservoir. Assuming that the chemical...
Question 2 The soil profile at a level site consists of a 3-m thick layer of...
Question 2 The soil profile at a level site consists of a 3-m thick layer of sandy clay, overlaying an 8-m thick layer of loose sand, overlaying stiff gravelly clays that extend to depths greater than 20 m. The water table is at a depth of 2 m and the ground water is initially hydrostatic. The total unit weight of the upper sandy clay, above or below the water table, is 18 kN/m3. The total unit weight of the loose...
The figure below shows the soil profile conditions below a 5-m deep pond. Water is seeping directly downward und...
The figure below shows the soil profile conditions below a 5-m deep pond. Water is seeping directly downward under steady-state conditions through the clay layer into underlying gravel. Assume the elevation datum at the top of the gravel layer and that the hydrostatic ground water table is also found in the top of the gravel and its position does not change with time or amount of flow. For these flow conditions, calculate the following: a. b. c. d. e. f....
A 2-m thick of compacted soil of unit weight 20 kN/m3 will be placed on the top of the ground surface. Δσ y...
A 2-m thick of compacted soil of unit weight 20 kN/m3 will be placed on the top of the ground surface. Δσ y 14.0 kN/m3 3.0 m Sand Y 17.5 kN/m3 2.0 m 3.0m A Soft clay y= 13.5 kN/m3 6.0 m Medium clay y=15.0 kN/m3 B 4.0 m Bedrock a) Before placing the compacted soil, what are the overconsolidation ratios (OCR) for point A and B? b) When placing the compacted soil, what external load Ag would be? c)...
2. A cylindrical sample of soil is confined in a rigid-wall permeameter and measures 10 cm...
2. A cylindrical sample of soil is confined in a rigid-wall permeameter and measures 10 cm in diameter and 20 cm in length. The axis of the cylindrical sample lies in a horizontal plane. They hydraulic head at the left end of the specimen is controlled by a reservoir; the water surface in the reservoir is exactly 100 cm above the horizontal axis of the cylindrical soil sample and remains at 100 cm through a system that automatically adds water...
(b) Water flows under gravity through a pipeline connecting two reservoirs as shown in Figure 2....
(b) Water flows under gravity through a pipeline connecting two reservoirs as shown in Figure 2. The pipeline consists of 2 km of pipe diameter 400 mm and sand roughness equivalent 0.03 mm followed by an abrupt change to 3 km of 500 mm diameter pipe of sand roughness equivalent 0.08 mm. The pipe discharges as a free jet into a reservoir. The difference in elevation between the water surface of the upstream reservoir and the discharging jet is 21...
D Question 2 1 pts Hot and cold water pipes 8 m long run parallel to...
D Question 2 1 pts Hot and cold water pipes 8 m long run parallel to each other in a thick concrete layer. The diameters of both pipes are 7 cm, and the distance between the centerlines of the pipes is 37 cm. The surface temperatures of the hot and cold pipes are 54°C and 14°C, respectively. Taking the thermal conductivity of the concrete to be k = 0.75 W/m • °C, determine the rate of heat transfer in Watts...
The cross section of a levee that is 750 m long and is underlain by a 2-m-thick 3/ permeable sand layer. The hydraulic conductivity of the sand layer is 3.2m/day. (5 marks) Determine the quantity of water which flows into the ditch in m'/day Elv, 160 m Levee Elv. 150 m 2 m Sand Ditch 125 m Calculate the factor of safety against downstream heave with H 4/ = 12m, H2 2m and D 8m (5 marks) Sheet pile H2...
2. (15 points) The following figure shows a clay layer under an earth-filled dam with a reservoir on the right side and a pond on the left side of the dam. (1) (10 points) Determine the seepage loss through the clay layer when hydraulic conductivity K = 10-4 m/s, H = 20 m, L = 50 m, and b = 10m. (2) (5 points) A chemical company suddenly dumps a conservative chemical substance into the reservoir. Assuming that the chemical...
Question 2 The soil profile at a level site consists of a 3-m thick layer of sandy clay, overlaying an 8-m thick layer of loose sand, overlaying stiff gravelly clays that extend to depths greater than 20 m. The water table is at a depth of 2 m and the ground water is initially hydrostatic. The total unit weight of the upper sandy clay, above or below the water table, is 18 kN/m3. The total unit weight of the loose...
The figure below shows the soil profile conditions below a 5-m deep pond. Water is seeping directly downward under steady-state conditions through the clay layer into underlying gravel. Assume the elevation datum at the top of the gravel layer and that the hydrostatic ground water table is also found in the top of the gravel and its position does not change with time or amount of flow. For these flow conditions, calculate the following: a. b. c. d. e. f....
A 2-m thick of compacted soil of unit weight 20 kN/m3 will be placed on the top of the ground surface. Δσ y 14.0 kN/m3 3.0 m Sand Y 17.5 kN/m3 2.0 m 3.0m A Soft clay y= 13.5 kN/m3 6.0 m Medium clay y=15.0 kN/m3 B 4.0 m Bedrock a) Before placing the compacted soil, what are the overconsolidation ratios (OCR) for point A and B? b) When placing the compacted soil, what external load Ag would be? c)...
(b) Water flows under gravity through a pipeline connecting two reservoirs as shown in Figure 2. The pipeline consists of 2 km of pipe diameter 400 mm and sand roughness equivalent 0.03 mm followed by an abrupt change to 3 km of 500 mm diameter pipe of sand roughness equivalent 0.08 mm. The pipe discharges as a free jet into a reservoir. The difference in elevation between the water surface of the upstream reservoir and the discharging jet is 21...
D Question 2 1 pts Hot and cold water pipes 8 m long run parallel to each other in a thick concrete layer. The diameters of both pipes are 7 cm, and the distance between the centerlines of the pipes is 37 cm. The surface temperatures of the hot and cold pipes are 54°C and 14°C, respectively. Taking the thermal conductivity of the concrete to be k = 0.75 W/m • °C, determine the rate of heat transfer in Watts...
Most questions answered within 3 hours.
-
