Homework Answers
Add Answer to:

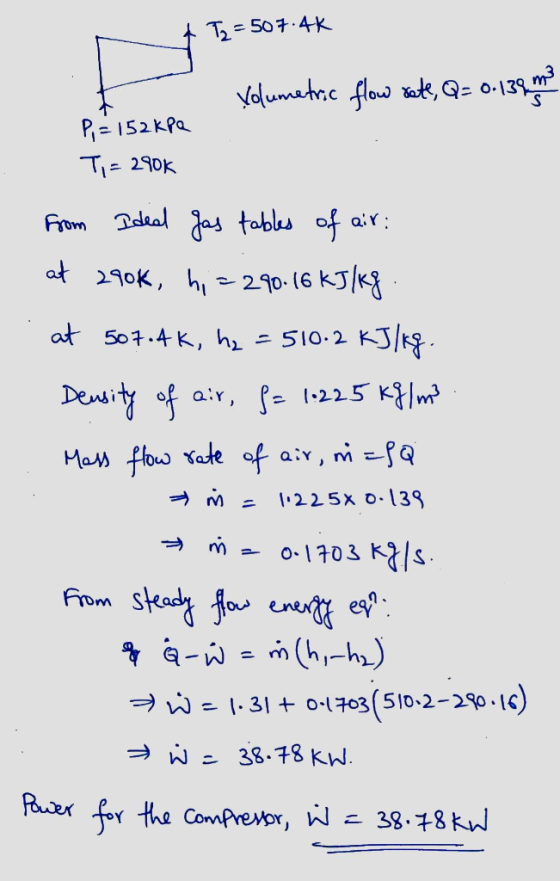

Air enters a compressor at 152 kPa and 290 K and exits at a temperature of...
Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature...
Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature of 290 K, and with a mass flow rate of 0.72 kg/s. At the exit, the pressure is 700 kPa and the temperature is 450 K. Heat transfer from the compressor to its surroundings occurs at a rate of 3 kW. Kinetic and potential energy changes can be ignored. Determine the power input to the compressor, in kW. Assume that the air is an...
Problem 2 20) Air enters a compressor operating at steady state at 280 K and exits...
Problem 2 20) Air enters a compressor operating at steady state at 280 K and exits at a higher pressure and a higher temperature of 1020 K. Specitic heat at constant pressure for air is a constant and equal to 1.003 kJkg K. The mass flow rate is 01 kg's. If the compressor consumes electric power 77 kW Neglect kinetic and potential energy effects and assume air is ideal gas. Find (1) The rate of heat transfer between the compressor...
A compressor is used to steadily compress Air which enters the compressor at a pressure of...
A compressor is used to steadily compress Air which enters the compressor at a pressure of 220 kPa, a temperature of 320 K, and a velocity of 8 m/s through an inlet with area of 0.13 m². The air exits the compressor at a pressure of 770 kPa, temperature is 490 K, and a of velocity is 4 m/s. The compressor consumes 430 kW of power. Assuming variable specific heats, find: A) The heat transfer during this process. B) The...
Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K, with...
Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K, with a volumetric flow rate of 7.5 m3/s. The compressor pressure ratio is 10. The turbine inlet temperature is 1400 K. Determine the following: The thermal efficiency of the cycle The back work ratio The net power developed in kW
P1) (50 points) - Air is compressed steadily by a 7.5-kW compressor. Air enters a compressor...
P1) (50 points) - Air is compressed steadily by a 7.5-kW compressor. Air enters a compressor at a pressure of 100 kPa, a temperature of 290 K and a velocity of 6 m/s through an inlet with an area of 0.005 m2. At the exit, the pressure is 700 kPa, the temperature 480 K and the velocity is 2 m/s. Determine: a) heat transfer that takes place between the compressor and the surrounding medium at 290 K, in kW and...
Air enters the compressor of an ideal Brayton refrigeration cycle at 140 kPa, 270 K, and...
Air enters the compressor of an ideal Brayton refrigeration cycle at 140 kPa, 270 K, and is compressed to 420 kPa. At the turbine inlet, the temperature is 320 K and the volumetric flow rate is 0.4 m3/s. Determine (a) the mass flow rate, in kg/s (b) the net power input, in kW (c) the refrigerating capacity, in kW (d) the coefficient of performance Round answers to 3 significant digits.
2. Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K,...
2. Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K, with a volumetnc flow rate of 20 m'/s. The turbine inlet temperature is 1500 K. For compressor pressure ratios of 20 find a) the heat addition and rejection in kW b) the net power developed, in kW c) the thermal efficiency of the cycle d) the back work ratio.
A compressor works on a pressure of 105 kPa and temperature 300 K in a Brayton...
A compressor works on a pressure of 105 kPa and temperature 300 K in a Brayton cycle and has an efficiency of 45%. The exhaust temperature is 700 K. Find the pressure ratio and the specific heat addition by the combustion for this cycle. The inlet pressure of an air compressor is 100 kPa, with temperature 290 K, and brings it to 600 kPa, after which the air is cooled in an intercooler to 330K by heat transfer to the...
Air enters the compressor of a cold air-standard Brayton cycle at 100 kpa, 300 k, with...
Air enters the compressor of a cold air-standard Brayton cycle at 100 kpa, 300 k, with a mass flow rate of 6 kg/s. the compressor pressure ratio is 10, and the turbine inlet temperature is 1400 K. For k = 1.4, calculate a. The thermal efficiency of the cycle b. The back work ratio c. The net power developed, in kW d. Reconsider the above with an ideal regenerator.
A centrifugal air compressor used in a gas turbine receives air at 100 kPa and 300...
A centrifugal air compressor used in a gas turbine receives air at 100 kPa and 300 K and discharges it at 400 kPa and 500 K. The velocity of the compressor's outgoing air is 100 m / s. Ignoring the speed at the compressor inlet. Determine the power required to drive the compressor, in kW, if the mass flow is 15 kg / s. Take the Cp of air equal to 1 kJ / (kg K) and assume that there...
Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature of 290 K, and with a mass flow rate of 0.72 kg/s. At the exit, the pressure is 700 kPa and the temperature is 450 K. Heat transfer from the compressor to its surroundings occurs at a rate of 3 kW. Kinetic and potential energy changes can be ignored. Determine the power input to the compressor, in kW. Assume that the air is an...
Problem 2 20) Air enters a compressor operating at steady state at 280 K and exits at a higher pressure and a higher temperature of 1020 K. Specitic heat at constant pressure for air is a constant and equal to 1.003 kJkg K. The mass flow rate is 01 kg's. If the compressor consumes electric power 77 kW Neglect kinetic and potential energy effects and assume air is ideal gas. Find (1) The rate of heat transfer between the compressor...
A compressor is used to steadily compress Air which enters the compressor at a pressure of 220 kPa, a temperature of 320 K, and a velocity of 8 m/s through an inlet with area of 0.13 m². The air exits the compressor at a pressure of 770 kPa, temperature is 490 K, and a of velocity is 4 m/s. The compressor consumes 430 kW of power. Assuming variable specific heats, find: A) The heat transfer during this process. B) The...
P1) (50 points) - Air is compressed steadily by a 7.5-kW compressor. Air enters a compressor at a pressure of 100 kPa, a temperature of 290 K and a velocity of 6 m/s through an inlet with an area of 0.005 m2. At the exit, the pressure is 700 kPa, the temperature 480 K and the velocity is 2 m/s. Determine: a) heat transfer that takes place between the compressor and the surrounding medium at 290 K, in kW and...
2. Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K, with a volumetnc flow rate of 20 m'/s. The turbine inlet temperature is 1500 K. For compressor pressure ratios of 20 find a) the heat addition and rejection in kW b) the net power developed, in kW c) the thermal efficiency of the cycle d) the back work ratio.
Air enters the compressor of a cold air-standard Brayton cycle at 100 kpa, 300 k, with a mass flow rate of 6 kg/s. the compressor pressure ratio is 10, and the turbine inlet temperature is 1400 K. For k = 1.4, calculate a. The thermal efficiency of the cycle b. The back work ratio c. The net power developed, in kW d. Reconsider the above with an ideal regenerator.
