4. Create the Routh table and find the number of R.H.P poles, L.H.P poles and jo...

Question

Question

4. Create the Routh table and find the number of R.H.P poles, L.H.P poles and jo axis poles using Routh Hurwitz criterion. 56

engineering Electrical-Engineering

Answer 1

Answer #1

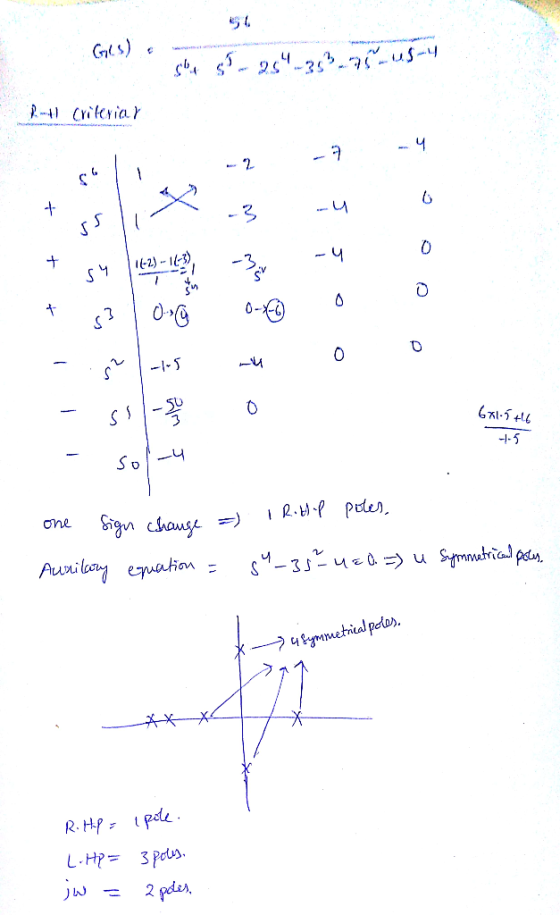

a shu si 25-35% 75 us-4 2-1 Criteria y 76 - 2 -3 au o - SS 0 6x1-5H6 7-5 Roll Poles, one Sign change =) Aunitary equation =

Answer 2

Similar Homework Help Questions

2. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in...

2. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in the Figure lie in the left half-plane, in the right half-plane, and on the jw-axis. R(s) C(s) 507 s* + 3s +102 + 30s +169 S
17. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in...

17. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in Figure P6.5 lie in the left half-plane, in the right half- plane, and on the jw-axis. R(S) + C(s) 507 $++ 333 + 10s- +30s + 169 S
Consider the unity feedback system shown below with 20 G(s)- R(s) + Es) C(s) Using Routh-Hurwitz...

Consider the unity feedback system shown below with 20 G(s)- R(s) + Es) C(s) Using Routh-Hurwitz criterion, determine where the closed-loop poles are located (i.e., right half-plane, left half-plane, jo-axis)

(20 pts) System Design Using Routh-Hurwitz Criterion: one of the reasons we learn Routh-Hurwitz C...

(20 pts) System Design Using Routh-Hurwitz Criterion: one of the reasons we learn Routh-Hurwitz Criterion is that it can help us select the system parameters to make the system stable. In this problem, we will go over this process. Considering a system with the following transfer function: 1. s +2 G(s) = s4 +5s3 2s2 +s + K 1.1 Work out the Routh-Hurwitz table. Note in this case, you will have the unknown parameter K in the table. 1.2 Based...
please do all step clean and neat Apply Routh-Hurwitz criterion to determine whether the given control...

please do all step clean and neat Apply Routh-Hurwitz criterion to determine whether the given control system is stable or unstable? b) Tell how many poles of the closed loop transfer function lie in the right half-plane. left half-plane, and on the jo-axis? Justify your answer. a Cis) R(s) +4s-3 .4p832+ 20 15
2. Applying the Routh-Hurwitz criterion can obtain the number of the roots of f (s) 0...

2. Applying the Routh-Hurwitz criterion can obtain the number of the roots of f (s) 0 with a positive real part. The Routh-Hurwitz criterion can also be applied to find that how many roots have a real part greater than -a. This principle is exercised in this problem Given a characteristic equation: f(s) 3 4s2 3s10 0 Eq(1) By substituting sı = s + α (i.e., s = sı-α) into Eq (1) and apply the Routh-Hurwitz criterion on f(s) 0,...

control systems 1) Using Routh Hurwitz Stability Criteria, determine whether the following system of equation is...

control systems 1) Using Routh Hurwitz Stability Criteria, determine whether the following system of equation is stable or not. a) S4+253+3S2+45+5=0 2) Using the Routh Hurwitz stability criterion, determine the range of K for stability of the following characteristic equation. a) s4+2s8+(4+K)s2+9s+25=0 3)Sketch the root-locus of the following systems a) G(s)H(s) = s(s+1)(s+2) b) G(s)H(s) = 52(8+3.6) K(5+1)
R(s) Ts(s) 140 s4 +12s3 39s2 48s 140 Experiment 1 For the system shown in preliminarily: In Matla...

I need matlab code R(s) Ts(s) 140 s4 +12s3 39s2 48s 140 Experiment 1 For the system shown in preliminarily: In Matlab, write instructions to create the closed-loop transfer function. Using Matlab find the location of poles for this transfer function (use pzmap Matlab command) Using Routh-Hurwitz criterion principals (preliminarily task) justify the locations of complex (pure imaginary with no real) poles a) b) c) d) Plot the step response for this system e) Considering the location of the poles...
Problem 1: Routh-Hutwitz criterion For each of the following system, determine how many poles are located...

Problem 1: Routh-Hutwitz criterion For each of the following system, determine how many poles are located in the OLHP and ORHP, and on the jw axis.I 10 100 ss + 6,3 + 5,7 + 8s + 20 s + 8 (c) G(s)-ss-f + 3.352 +3s-2

PROBLEM 1 Consider the transfer function T(S) =s5 +2s4 + 2s3 + 4s2 + s + 2 a) Using the Routh-Hurwitz method, determine whether the system is stable. If it is not stable, how many poles are in the...

PROBLEM 1 Consider the transfer function T(S) =s5 +2s4 + 2s3 + 4s2 + s + 2 a) Using the Routh-Hurwitz method, determine whether the system is stable. If it is not stable, how many poles are in the right-half plane? b) Using MATLAB, compute the poles of T(s) and verify the result in part a) c) Plot the unit step response and discuss the results. (Report should include: Code, Figure 1.Unit step response, answers and conclusion) PROBLEM 1 Consider...
