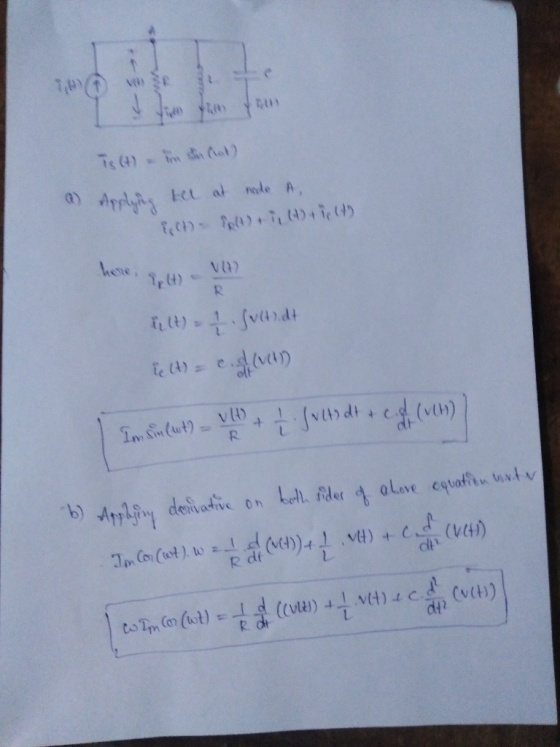

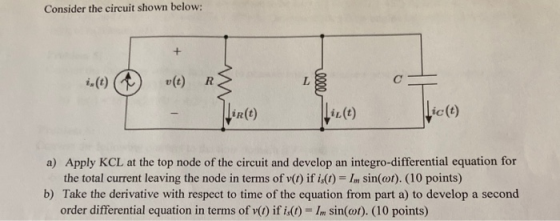

Consider the circuit shown below: 1.(1) vt) R$ Lic(t) a) Apply KCL at the top node...
please answer C,D,E
Consider the electrical circuit shown in Fig.1. Assume switch S remain at position 1 for longer time and at t = 0 the switch is moved to position 2 from position 1. t=0 4 ΚΩ 1S v(t) i(t) m А 2 12 V 100 uF 8 ΚΩ Fig.3 Diagram for Q2 a) What is the initial capacitor voltage v(0-), before it move to position 2 [20 marks) b) Soon after the switch is moved to position 2...
8.43 The initial conditions for the circuit shown in Figure P8.43 are i(0) = 1 = 1 A, v(0) = V. = 2 V. FIGURE P8.43 w 40 a. Write a node equation at node a by summing the currents leaving node a fort 20. Find di(0)/dt. b. Write a node equation at node b by summing the currents leaving node b for t 2 0. c. Find the differential equation in i(t) and find the roots of the characteristic...
1. For the circuit shown below, we wish to find v(t) for t>0. 1 1 a. Find the governing equation for the voltage v using KCL at the top node using the following definitions: a = 0,W, = dr. This will get you a governing equation in the same form as that derived for the case we did in class where the R, L, and C were in series. b. What is the particular solution in this case? c. If...
Consider a causal LTI system implemented as the RL circuit shown below. In this circuit, v(t) is the input voltage. The current i(t) is considered the system output. i(t) R L wwwm v(t) (a) Find the differential equation relating v(t) and i(t). (b) Determine the frequency response of this system (H(jw)). (c) Determine the output it) if v(t) = sin(t), R=10 and L=1. (d) Sketch Bode plot of H (jw) for R=10 and L=1. (e) Determine if the system is...
Learning Goal: To use the node-voltage method to solve circuits that contain resistors and independent sources. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. You should review KCL and the definition of an essential node before beginning. In this tutorial, you will use the node-voltage method to find the current through the voltage source, io , and the voltage drop across the 5 kN resistor, vo, for the circuit...
tants Part A Consider the circuit shown in (Figure 1). Write the KCL equation at the essential node labeled g Express your answer in terms of some or all of the variables i1, i2,iz, i4, is, is. I. Figure 1 of 1 ΑΣφ vec R1b Submit Request Answer Rs Provide Feedback No V2 R6 R4 1s
Problem 3 In the circuit shown below: a. Write a node equation at node 1 by summing the currents leaving node 1. b. Write a node equation at node 2 by summing the currents leaving node 2. c. Find Vj and V2 by solving the two node equations. d. Find the currents Iri, IR2, IR3, IR4, Is. e. Find the power absorbed by R1, R2, R3, R1, and power released by Vs and I.. IR1 R1 w 2k IR2 V2...
R1 fR2) fC1) For the circuit shown below: In terms of Vo, RI, R2 CI, t, and s what is the time domain equation for V at node l? In terms of Vo, RI,R2, C1,t, and s what is the s-domain equation for V at node 1? In terms of Vo, R1, R2, C1, t, and s what is the equation for τ? If the voltage at time-0 is 7 V R 1-1 kQ, R2-1 kΩ and C 1-3 μF...
For the circuit shown below: Preview In terms of Vo, R1, R2, R3, R4 C1, t, and s what is the time domain equation for the voltage at node out? Preview and s what is the s-domain equation the voltage at node out? In terms of Vo, RI, R2, R3,R4, C1, t, Preview and s what is the equation for τ? In terms ofVo, RI, R2, R3, R4, Cl, t, Ifthe voltage V1 at time-0 is 3 V RI=4 kQ,...
1. Use Laplace Transforms to determine the function modeling the current in an RLC circuit with L 10 Henries, R 20 ohms, C = 0.02 Farads, the initial charge is Q(0) = 0, the initial current is I(0) = 0, there is an electromotive force forcing the RLC circuit via the voltage function E(t) letting the current alternate naturally through the circuit. Use the fact the differential 10 sin (t), nd then, at t = 2T seconds, the battery is...
