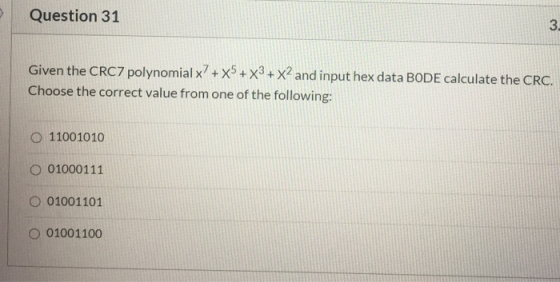

Question 31 3. Given the CRC7 polynomial x? + X5 + x3 + x2 and input...

Question

Question

engineering Computer-Science

Answer 1

Answer #1

The correct option for this is 'D'

i.e, 01001100

**x*x*x- Iz?“. ox l х”, охярк } 1 оно оо от I Input BODE DOOO of ІІІ о As degree degree is 7 append 7 zeros to input Hot

Input hexadecimal B0DE=101100001101110

AND polynomial =10101100

And then divide input hex by polynomial and Use X-OR operation for calculating...
