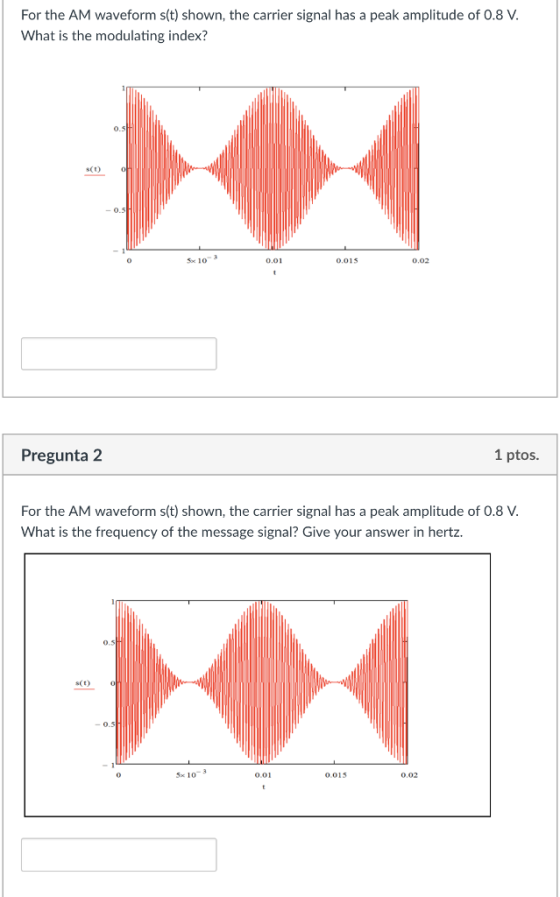

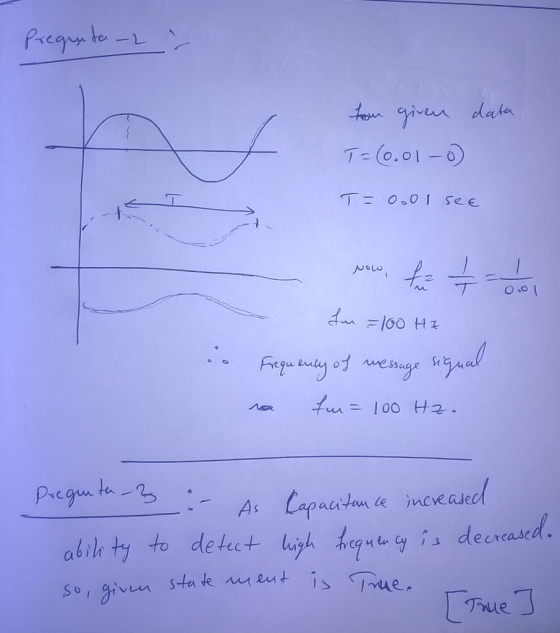

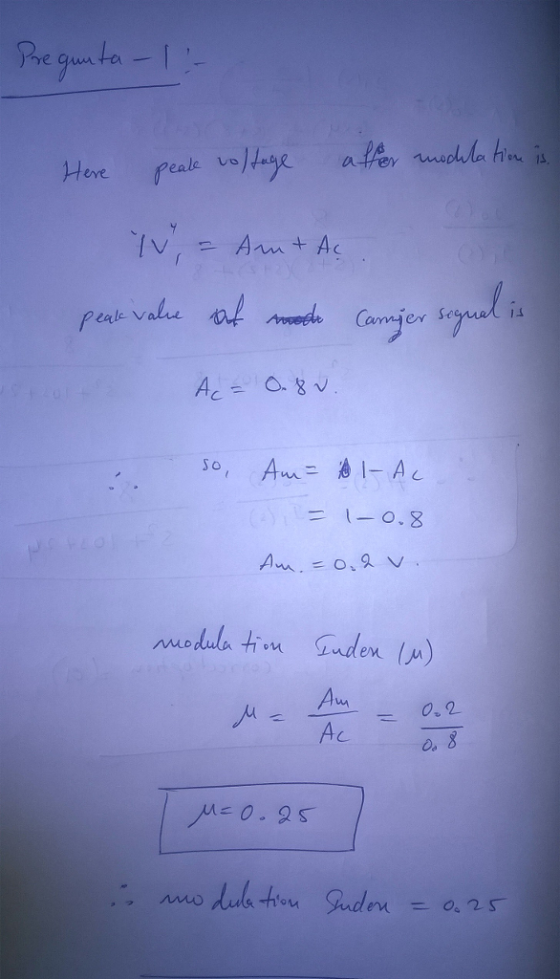

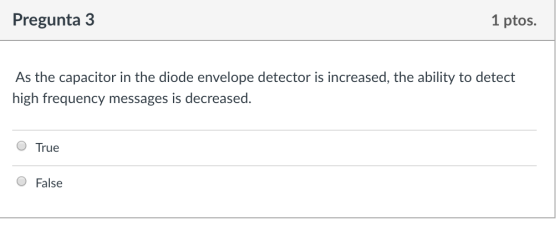

For the AM waveform s(t) shown, the carrier signal has a peak amplitude of 0.8 V...
An AM signal with 24 percent positive modulation has carrier amplitude 6 V. What is the...
An AM signal with 24 percent positive modulation has carrier amplitude 6 V. What is the maximum value of the modulating signal in volts?
An information signal is of the form s(t) = sin(2*pi*t)/t. The signal amplitude modulates a carrier...
An information signal is of the form s(t) = sin(2*pi*t)/t. The signal amplitude modulates a carrier of frequency 10Hz. Find and sketch the Waveform and Fourier transform of the transmitted signal before and after AM modulation. For AM modulation you can consider the simple case of DSB format (or double-sideband suppressed carrier modulation).
3. The following is the amplitude spectrum of a DSB+carrier AM signal x(f) 1.5 1.5 1.5 1.5 f (Hz)...
3. The following is the amplitude spectrum of a DSB+carrier AM signal x(f) 1.5 1.5 1.5 1.5 f (Hz) 1920 2000 2080 2080 2000 1920 (a) (10 points) Determine the carrier frequency fe the carrier amplitude Ac the mod ulation index ,, and the message signal m(t) of the AM signal. (b) (10 points) Given that μ2Sm 0.18, find the output SNR (in dB) if the received signal includes white noise with a power spectral density of η/2-10-10 W/Hz. (c)...
AMPLITUDE MODULATION 1. Study in time and frequency domains of AM signals This AM signal is...
AMPLITUDE MODULATION 1. Study in time and frequency domains of AM signals This AM signal is represented below The x-axis has graduations in 10 seconds and y-axis has graduations in volts. 1.1 From this time display, find the values of Ach and μ. Give the name of these parameters. Comment on the waveform of the message signal, find its frequency f 1.2 Draw the amplitude spectrum IS(DI with a bilateral representation. Put graduations on the axes (in hertz and volt)....
Select the correct statement regarding the difference between the FM modulated signal waveform and the AM...
Select the correct statement regarding the difference between
the FM modulated signal waveform and the AM modulated signal
waveform.
a. The FM signal wave changes frequency according to the message
wave m(t). The "peak" amplitude of the FM signal, Ac=5, remains
constant.
b. There is no difference between the FM and AM signal waves
because they are both modulated by the same message wave, m(t) =
Amcos(2πfmt)
c. The AM signal wave frequency changes with the message wave m(t)
while...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modula...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
4.3-3 For the AM signal with m(t) shown in Fig. P4.3-2 and u =0.8: (a) Find...
4.3-3 For the AM signal with m(t) shown in Fig. P4.3-2 and u =0.8: (a) Find the amplitude and power of the carrier. (b) Find the sideband power and the power efficiency n. Figure P.4.3-2 10 m(t) -10-2 → - 10
Consider the message signal m(t)=2cos(2001Tt)+3sin(4001Tt). Work out by hand the expected frequency spectrum and output waveform...
Consider the message signal m(t)=2cos(2001Tt)+3sin(4001Tt). Work out by hand the expected frequency spectrum and output waveform when m(t) is input to the AM DSB FC modulator, and a modulation index of 0.8 is achieved. Assume that the carrier frequency of the modulator is set to 2 MHz.
4. (20%) An AM modulator operates with the message signal m(t) - 9 cos(207t)-8 cos(60!). The unmodulated carrier is...
4. (20%) An AM modulator operates with the message signal m(t) - 9 cos(207t)-8 cos(60!). The unmodulated carrier is given by 110 cos 200r), and the system operates with an index of 0.8. (10%) (a) Given that the minimum value ofm(t) is-12.9, write the equation for m, (t). and determine the power of m,(r) (i.e.. m,())) (b) Determine the efficiency of the modulator 5%) (500) (c) Sketch the double-sided spectrum of the modulator output AM signal.
4. (20%) An AM...
4: An AM signal has the form s(t) = A (1 + il cos(mt) cos wet...
4: An AM signal has the form s(t) = A (1 + il cos(mt) cos wet with wm <we and u <1. The signal is to be demodulated using the simple envelope detector shown in the following plot. AM sinal (a) Sketch v.(t) when wm <1/RC <we (b) Comment on suitability of such an envelope detector for demodulating an amplitude modu- lated signal: (i) With both sideband and full carrier as in the AM radio system. (ii) With full carrier...
3. The following is the amplitude spectrum of a DSB+carrier AM signal x(f) 1.5 1.5 1.5 1.5 f (Hz) 1920 2000 2080 2080 2000 1920 (a) (10 points) Determine the carrier frequency fe the carrier amplitude Ac the mod ulation index ,, and the message signal m(t) of the AM signal. (b) (10 points) Given that μ2Sm 0.18, find the output SNR (in dB) if the received signal includes white noise with a power spectral density of η/2-10-10 W/Hz. (c)...
AMPLITUDE MODULATION 1. Study in time and frequency domains of AM signals This AM signal is represented below The x-axis has graduations in 10 seconds and y-axis has graduations in volts. 1.1 From this time display, find the values of Ach and μ. Give the name of these parameters. Comment on the waveform of the message signal, find its frequency f 1.2 Draw the amplitude spectrum IS(DI with a bilateral representation. Put graduations on the axes (in hertz and volt)....
Select the correct statement regarding the difference between
the FM modulated signal waveform and the AM modulated signal
waveform.
a. The FM signal wave changes frequency according to the message
wave m(t). The "peak" amplitude of the FM signal, Ac=5, remains
constant.
b. There is no difference between the FM and AM signal waves
because they are both modulated by the same message wave, m(t) =
Amcos(2πfmt)
c. The AM signal wave frequency changes with the message wave m(t)
while...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
4.3-3 For the AM signal with m(t) shown in Fig. P4.3-2 and u =0.8: (a) Find the amplitude and power of the carrier. (b) Find the sideband power and the power efficiency n. Figure P.4.3-2 10 m(t) -10-2 → - 10
Consider the message signal m(t)=2cos(2001Tt)+3sin(4001Tt). Work out by hand the expected frequency spectrum and output waveform when m(t) is input to the AM DSB FC modulator, and a modulation index of 0.8 is achieved. Assume that the carrier frequency of the modulator is set to 2 MHz.
4. (20%) An AM modulator operates with the message signal m(t) - 9 cos(207t)-8 cos(60!). The unmodulated carrier is given by 110 cos 200r), and the system operates with an index of 0.8. (10%) (a) Given that the minimum value ofm(t) is-12.9, write the equation for m, (t). and determine the power of m,(r) (i.e.. m,())) (b) Determine the efficiency of the modulator 5%) (500) (c) Sketch the double-sided spectrum of the modulator output AM signal.
4. (20%) An AM...
4: An AM signal has the form s(t) = A (1 + il cos(mt) cos wet with wm <we and u <1. The signal is to be demodulated using the simple envelope detector shown in the following plot. AM sinal (a) Sketch v.(t) when wm <1/RC <we (b) Comment on suitability of such an envelope detector for demodulating an amplitude modu- lated signal: (i) With both sideband and full carrier as in the AM radio system. (ii) With full carrier...
