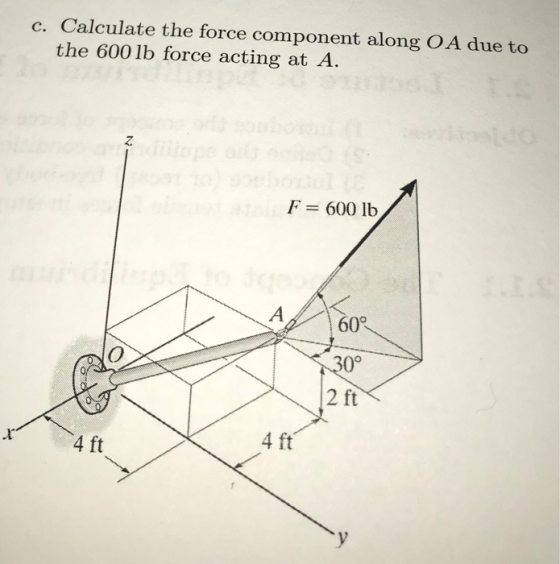

c. Calculate the force component along O A due to the 600 lb force acting at...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

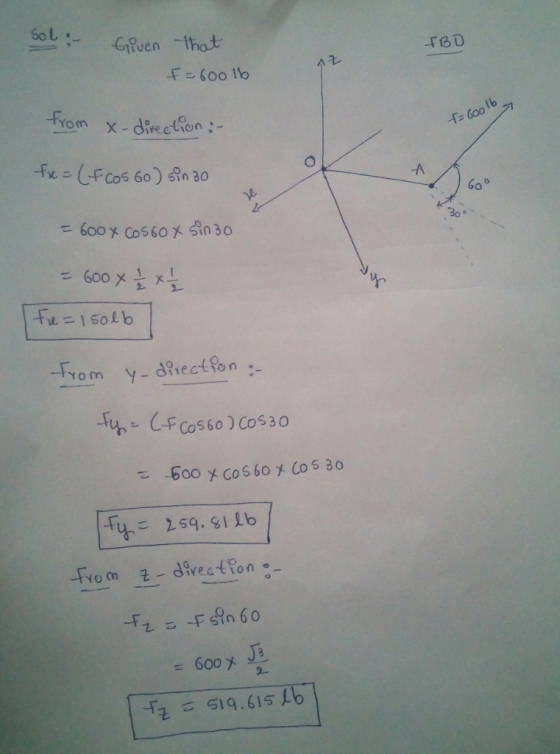

6oLGiuen -tho rBD 飞 -tyo(n X-direction :- -A 6o° -600 x cos 60 x 030 F15oVb 乜ー600メCOS 60メCos 30 =600ナ

Answer 2

Similar Homework Help Questions

Calculate the force component along OA due to the 600lb force acting at A F =...

Calculate the force component along OA due to the 600lb force acting at A F = 600 lb 0° 2 ft 4 ft 4 ft
Calculate the force component along OA due to the 600 lb force acting at A.

Calculate the force component along OA due to the 600 lb force acting at A.
Problem1: The component of the force vector F acting along direction bbis required to be 30...

Problem1: The component of the force vector F acting along direction bbis required to be 30 lb. a) Determine magnitude of F and its component along line aa. b) Determine the projection of Falong aa and along bb directions, respectively 60

Determine the parallel force component in member AB due to the 56 N force acting along...

Determine the parallel force component in member AB due to the 56 N force acting along AD F-56 N 1 m O 3 m 1.5 m
2-15. Force F acts on the frame such that its component acting along member AB is...

2-15. Force F acts on the frame such that its component acting along member AB is 650 lb, directed from B towards A, and the component acting along member BC is 500Ib, directed from B towards C.Determine the magnitude of F and its direction . Seto 60°
Part A Determine the magnitude of the component of force F = 98 lb acting parallel...

Part A Determine the magnitude of the component of force F = 98 lb acting parallel to diagonal AB of the crate (Figure 1) Express your answer to two significant figures and include the appropriate units. ? (FAB), 1160 lib Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Determine the magnitude of the component of force F = 98 lb acting perpendicular to diagonal AB of the crate Express your answer to two significant...

Use the scalar product to determine the parallel force component acting in BC, due to the...

Use the scalar product to determine the parallel force component acting in BC, due to the 400 N force at C. 2 F-400 N 45° 30° 3 m 4 m
b. Use the scalar product to determine the paral- lel force component acting in BC, due...

b. Use the scalar product to determine the paral- lel force component acting in BC, due to the 400 N force at C 2 F 400 N 30° 4 m
2.91 Replace the force F = - 2800i + 1600j + 3000k lb acting at end A of the crank handle with a force R acting at O and a couple vector Cr. (b) Resolve R into the normal component P (normal to the cross section of the shaft) and the shear component V (i

2.91 Replace the force F = - 2800i + 1600j + 3000k lb acting at end A of the crank handle with a force R acting at O and a couple vector Cr. (b) Resolve R into the normal component P (normal to the cross section of the shaft) and the shear component V (in the plane of the cross section). (c) Resolve CR into the twisting component T and the bending component M.
