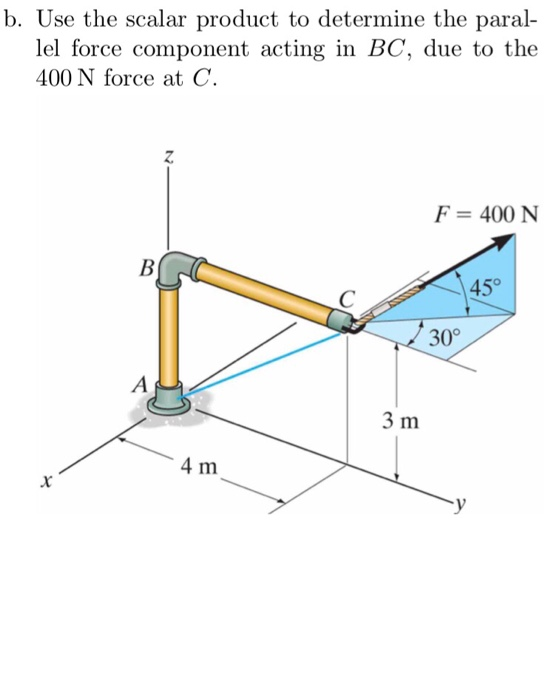

b. Use the scalar product to determine the paral- lel force component acting in BC, due...

Question

Question

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Use the scalar product to determine the parallel force component acting in BC, due to the...

Use the scalar product to determine the parallel force component acting in BC, due to the 400 N force at C. 2 F-400 N 45° 30° 3 m 4 m
Determine the parallel force component in member AB due to the 56 N force acting along...

Determine the parallel force component in member AB due to the 56 N force acting along AD F-56 N 1 m O 3 m 1.5 m
c. Calculate the force component along O A due to the 600 lb force acting at...

c. Calculate the force component along O A due to the 600 lb force acting at A 2 F = 600 lb 60° 30° 2 ft 74 ft 4 ft

Determine the magnitude of the projected component of the F=6 kN force acting along the axis...

Determine the magnitude of the projected component of the F=6 kN force acting along the axis BC of the pipe. Suppose that a=2.6m and b=4.6m 5 m 1 m x.
Calculate the force component along OA due to the 600lb force acting at A F =...

Calculate the force component along OA due to the 600lb force acting at A F = 600 lb 0° 2 ft 4 ft 4 ft
A force acting on the pole at point A. a.) Determine the magnitude of the projected...

A force acting on the pole at point A. a.) Determine the magnitude of the projected component of the force along the cable AB. b.) Determine the magnitude of the projected component of the force along the cable AC. c.) Determine the angle between cables AB and AC. 2 m 6 m 6 m 5 m 15° V F=1000 N

1) f a 200 N force is applied on the cutting tool as shown, determine the corresponding force acting at point E. (Hint 1: Remember that each component of a machine is a rigid body and every component...

1) f a 200 N force is applied on the cutting tool as shown, determine the corresponding force acting at point E. (Hint 1: Remember that each component of a machine is a rigid body and every component must be in equilibrium, Hint 2: Write out all the equilibrium equations for each component first, that will direct you at how to solve for the unknown forces, Hint 3: Use equilibrium equations that you did not use for solving as a...
12 m F 80 N Determine the projected component of the force acting along the axis...

12 m F 80 N Determine the projected component of the force acting along the axis AB of the pipe
2-15. Force F acts on the frame such that its component acting along member AB is...

2-15. Force F acts on the frame such that its component acting along member AB is 650 lb, directed from B towards A, and the component acting along member BC is 500Ib, directed from B towards C.Determine the magnitude of F and its direction . Seto 60°

1) (30 pts) A Force is given with F= BC kN in the figure below. According...

1) (30 pts) A Force is given with F= BC kN in the figure below. According to this configuration, please; a) write the force in Cartesian vector form, b) write unit vector of AB in Cartesian vector form, c) find magnitude of the projected component of the force Facting along the axis AB of pipe. d) determine the projected component of the force Facting along the axis AB of pipe in Cartesian vector form. B 4 m 6 m 3...
