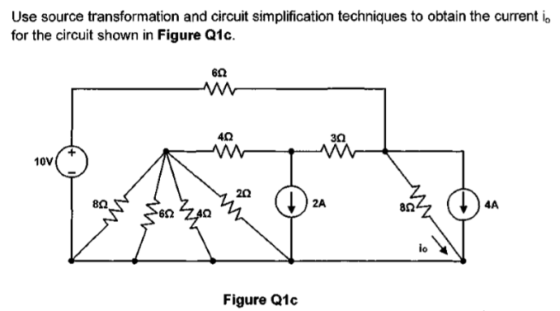

Use source transformation and circuit simplification techniques to obtain the current io

Question

Question

Answer 1

Similar Homework Help Questions

use source transformation to find the current io. 2.3 14л бо 2 mA (T (1) 2.3ik...

use source transformation to find the current io. 2.3 14л бо 2 mA (T (1) 2.3ik 2014 Л. 0. GMA
Use source transformation to find the output current in the circuit given below, whero V, -...

Use source transformation to find the output current in the circuit given below, whero V, - 40 230 V. X. 40 ,Xc 20, R = R2 = 800, and V, - 100 V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. jXL R2 R -jXc V2 The output current in the given circuit is
For the given circuit where V- 14 V, use source transformation to find the current i....

For the given circuit where V- 14 V, use source transformation to find the current i. 5Ω 10Ω 2 A 5Ω In the given circuit, the current i is mA Hints References eBook & Resources Hint #1

Use a series of source transformations to find io in this circuit. 1 A 6? 5?...

Use a series of source transformations to find io in this circuit. 1 A 6? 5? 0 17? 6? 1,5 ? 34 V
Find Io using source transformation in the following circuit: (5 points) 2 Ω j1 Ω οδο...

Find Io using source transformation in the following circuit: (5 points) 2 Ω j1 Ω οδο I, 4Ω 8/90° A j5 Ω ell 1 Ω W -j3 Ω -j2 Ω
13. Use resistor simplification to find the power through the 3A current source? 10 ΚΩ 100...

13. Use resistor simplification to find the power through the 3A current source? 10 ΚΩ 100 ΚΩ 40 ΚΩ 40 ΚΩ 200 ΚΩ 100 ΚΩ 10 Ω 12.5Ω 3Α

6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resi...

6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resistor. 7Q 6 Q ww ww. 5 A 6Q 4Q 12 V ww ww 6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resistor. 7Q 6 Q ww ww. 5 A 6Q 4Q 12 V ww ww
using source transformation principle. determine the value of the current ia in the circuit shown United....

using source transformation principle. determine the value of the current ia in the circuit shown United. YouTube TV - Watc... Fita net code Analy.. Van Gogh Museum... P University duviseu to spend all avelage vi 23 - JU Tutes per quesuun TOI #13 du 13 - ZU HITULES ECHT on the last two. Question 4 8 pts 4kΩ 4 ΚΩ 10 V 4 ΚΩ 12 V 4 ΚΩ 342 - 6v Using source transformation principle, determine the value of the...
2. Use source transformation to find i, in the following circuit 3A () 320

2. Use source transformation to find i, in the following circuit 3A () 320

Use source transformation to find the Norton Equivalent circuit with respect to the terminals a,b for...

Use source transformation to find the Norton Equivalent circuit with respect to the terminals a,b for the circuit shown below. j6012 a 4/0° A 50 Ω -1002 30 12 w b
