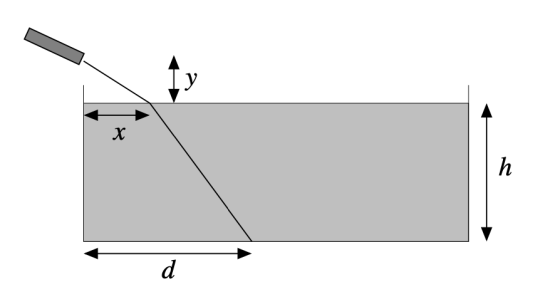

A laser is aimed so as to
illuminate a ring lying at the bottom of a fish tank. The laser is
positioned a distance y = 10.0 cm above the surface of the water.
The laser beam enters the water at a distance x = 15.0 cm from the
edge of the tank. The depth of the water is h = 40.0 cm. What is
the distance d of the ring from the edge of the tank? nwater =
1.33.

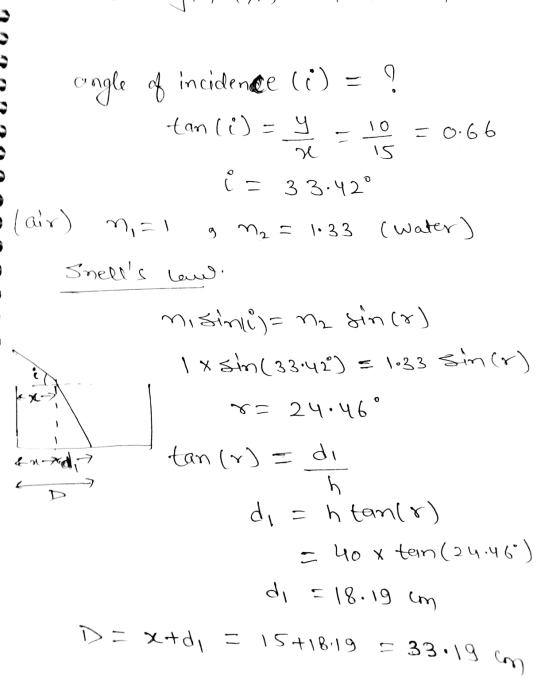

Homework Answers
Add Answer to:
A laser is aimed so as to
illuminate a ring lying at the bottom of a...
A physicist goes "laser fishing" with a laser gun as shown in the diagram below. x...
A physicist goes "laser fishing" with a laser gun as shown in the diagram below. x = 2.0 m is the horizontal distance between the physicist and the point on the surface of the water where the laser beam hits. d = 3.2 m is the horizontal distance between the physicist and the fish. h = 1.8 m is the depth of the fish below the surface of the water. The laser cannon is 2 m above the surface of...
A tank whose bottom is a mirror is filled with water to a depth of 20.6...
A tank whose bottom is a mirror is filled with water to a depth of 20.6 cm . A small fish floats motionless 7.80 cm under the surface of the water. Part A What is the apparent depth of the fish when viewed at normal incidence to the water? Express your answer in centimeters. Use 1.33 for the index of refraction of water. Part B What is the apparent depth of the reflection of the fish in the bottom of...
A cylindrical tank is 50.0 ft deep, 15.0 ft in diameter, and filled to the top...
A cylindrical tank is 50.0 ft deep, 15.0 ft in diameter, and filled to the top with water. A flashlight shines into the tank from above. What minimum angle φ can its beam make with the water surface if the beam is to illuminate part of the bottom? (n water = 1.33)
1 A horizontal cylindrical tank 2.20 m in diameter is half full of water. The space above the water is filled with a pressurized gas of unknown refractive index. A small laser can move along the...
1 A horizontal cylindrical tank 2.20 m in diameter is half full of water. The space above the water is filled with a pressurized gas of unknown refractive index. A small laser can move along the curved bottom of the water and aims a light beam toward the center of the water sur- face (Fig1). You observe that when the laser has moved a distance S = 1.09m or more (rneasured along the curved surface) from the low- est point...
A narrow beam of light from a laser travels through air (n = 1.00) and strikes...
A narrow beam of light from a laser travels through air (n = 1.00) and strikes the surface of the water (n = 1.33) in a lake at point A. The angle of incidence is 68 degrees. The depth of the lake is 3.0 m. On the flat lake-bottom is point B, directly below point A. (a) If refraction did not occur, how far away from point B would the laser beam strike the lakebottom? (b) Considering refraction, how far...
You are standing in a 1.5-m-deep swimming pool at night. The water is very still. You...
You are standing in a 1.5-m-deep swimming pool at night. The water is very still. You hold a laser pointer just above the water's surface and shine it nearly parallel to the surface, but tilted slightly down so that the beam enters the water 3.5mfrom you. How far from you does the beam strike the bottom of the pool? Index of refraction of the water is 1.33.
You are looking, from directly above, at a goldfish at the bottom of a 54.0-cm fish...
You are looking, from directly above, at a goldfish at the bottom of a 54.0-cm fish tank filled with water. How far away does the fish look to you? The index of refraction of water is 1.34. A beam of light is incident, from air, on a flat surface of glass (n=1.50). The refracted ray inside the glass is found to make an angel of 26.7° with the direction of the incident ray. Calculate the angle of incident.
A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ = 41 degrees with respect to the water's surface
A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ = 41 degrees with respect to the water's surface. The pool is d = 2.25 m deep and the index of refraction for air and water are n1 = 1 and n2 = 1.33, respectively.what is the horizontal distance, D, from the edge of the pool to the point on the bottom of...
A flashlight is held at the edge of a swimming pool at a height h = 2.2 m
A flashlight is held at the edge of a swimming pool at a height h = 2.2 m such that its beam makes an angle of θ = 58 degrees with respect to the water's surface. The pool is d = 1.5 m deep and the index of refraction for air and water are n1=1 and n2 = 1.33, respectively. What is the horizontal distance D, from the edge of the pool to the port on the bottom of the pool...
4. y (m) Refer to the diagram (a cutaway side view-not to scale) An enclosed tank,...
4. y (m) Refer to the diagram (a cutaway side view-not to scale) An enclosed tank, with vertical glass sides and horizontal bottom and top, is nearly full of water. The tank's six panels are all made of the same glass, with uniform thickness d glass of Resting on top of the tank is a solid half-cylinder of glass (with its end facing out of the page), so that its rectangular surface is horizontal and facing upward. The x-y position...
1 A horizontal cylindrical tank 2.20 m in diameter is half full of water. The space above the water is filled with a pressurized gas of unknown refractive index. A small laser can move along the curved bottom of the water and aims a light beam toward the center of the water sur- face (Fig1). You observe that when the laser has moved a distance S = 1.09m or more (rneasured along the curved surface) from the low- est point...
You are looking, from directly above, at a goldfish at the bottom of a 54.0-cm fish tank filled with water. How far away does the fish look to you? The index of refraction of water is 1.34. A beam of light is incident, from air, on a flat surface of glass (n=1.50). The refracted ray inside the glass is found to make an angel of 26.7° with the direction of the incident ray. Calculate the angle of incident.
4. y (m) Refer to the diagram (a cutaway side view-not to scale) An enclosed tank, with vertical glass sides and horizontal bottom and top, is nearly full of water. The tank's six panels are all made of the same glass, with uniform thickness d glass of Resting on top of the tank is a solid half-cylinder of glass (with its end facing out of the page), so that its rectangular surface is horizontal and facing upward. The x-y position...
