Question

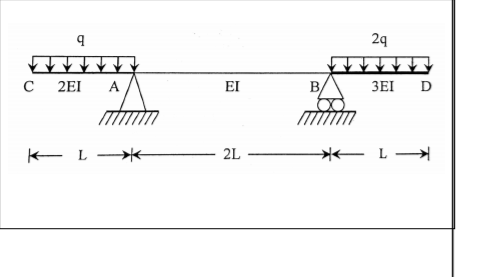

According to the protruding beam(overhead beam) given in the figure

A)Calculate the rotation of the D point with the Mohr method?

B)Calculate the collapse of the C point with the virtual work method?

(please do not copy paste the answer somewhere and show all steps and solve all options thanks)

4 24 с 2EI A EI B/ 3EID KL 2L * L-

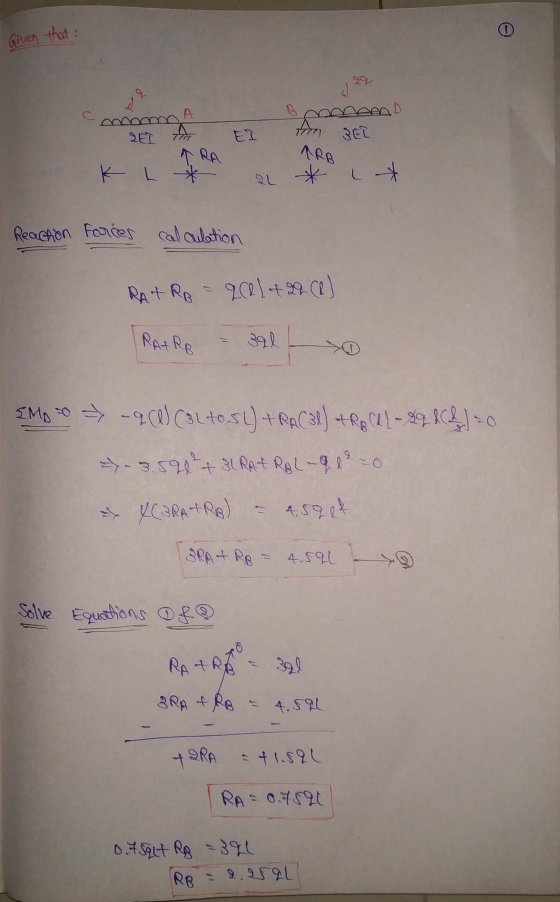

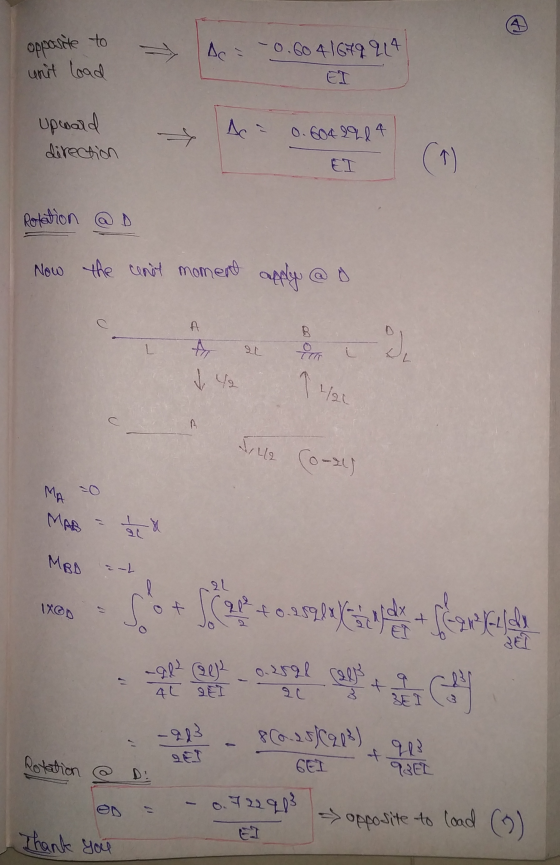

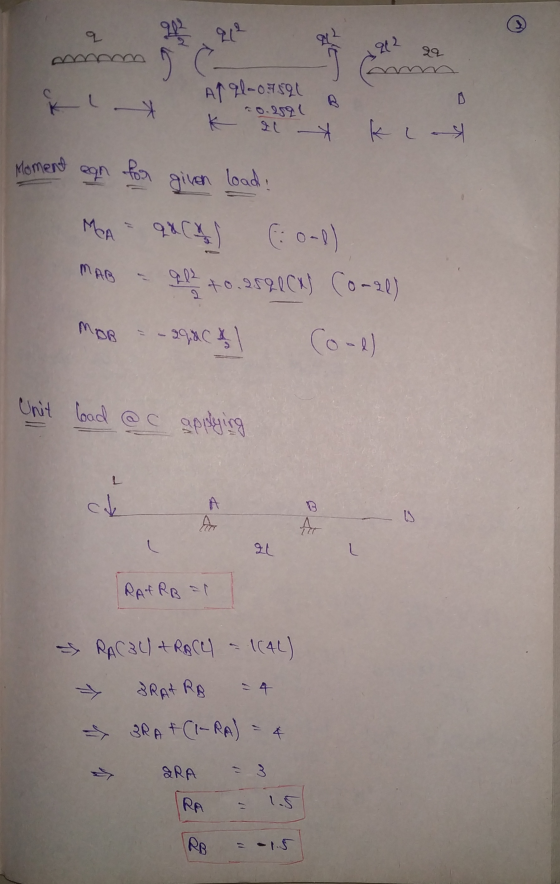

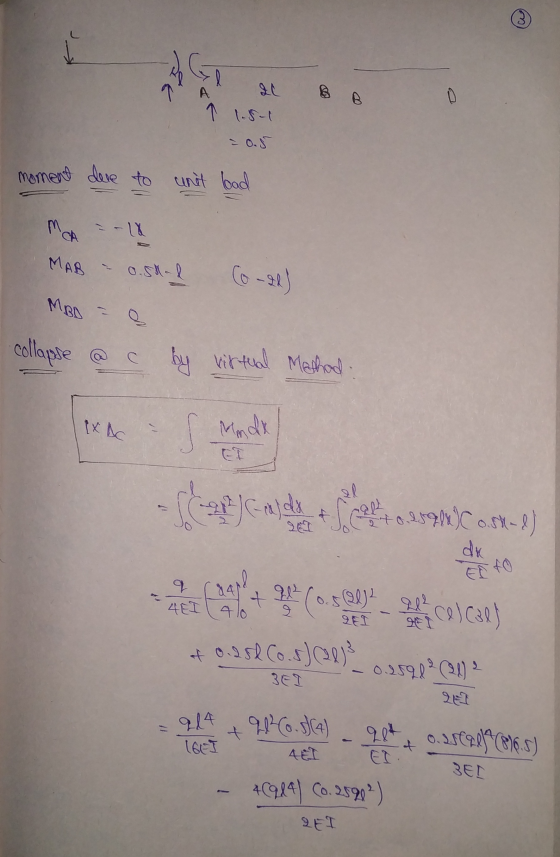

Answer 1
