Homework Answers

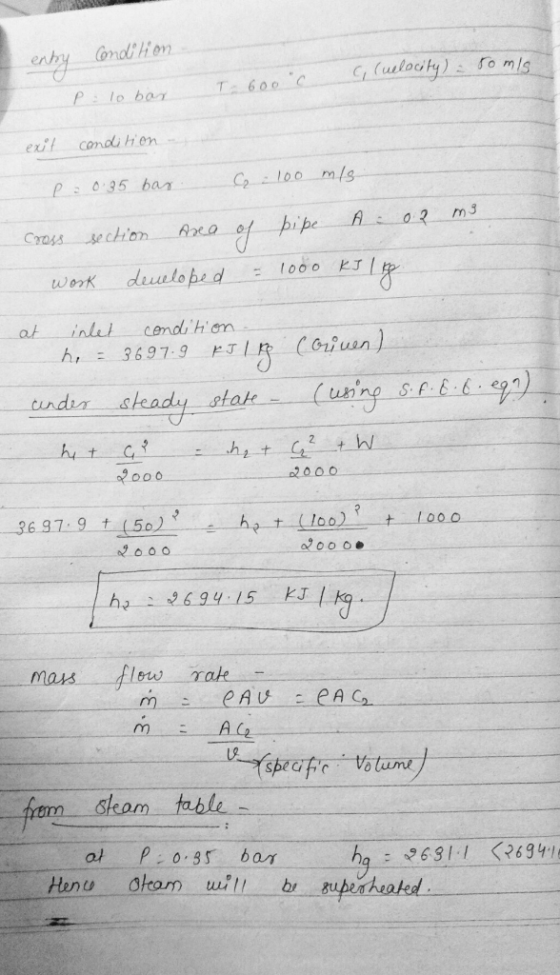

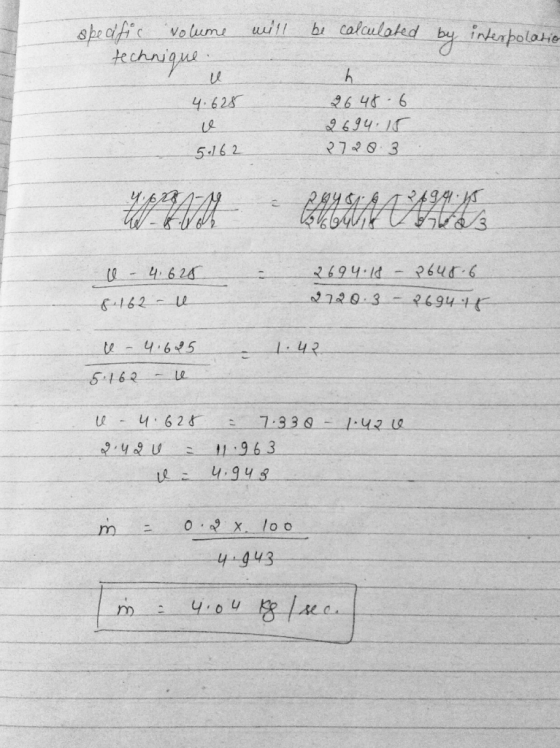

In the question some values in tha table were not clearly visible ,still I've tried to get exact from table but you make sure and method will be same
Add Answer to:

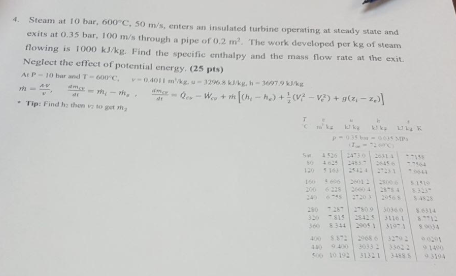

4. Steam at 10 bar, 600 C, 50 m's, enters an insulated turbine operating at steady...
A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/...
A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/kg and a mass flow rate of 0.1 kg/s. At the exit, the specific enthalpy is 1,531 kJ/kg. If there is no significant change in kinetic energy from inlet to exit, determine the rate of heat transfer between the pipe and its surroundings, in kW. B) Refrigerant 134a enters a horizontal pipe operating at steady state at 40°C, 3.1 bar and a velocity of...
Problem 1: (10 pts) Steam enters an insulated turbine operating at steady state at a pressure...
Problem 1: (10 pts) Steam enters an insulated turbine operating at steady state at a pressure of 2 MPa and a temperature of 400°C. A liquid-vapor water mixture exits the turbine with a quality of 0.9 and a pressure of 15 kPa. The power output of the turbine is 5 MW. (1) Identify the keywords and state their meaning (2 pts) (2) Determine the mass flow rate of steam required (8 pts)
Steam enters a well-insulated nozzle at 10 bar and 200ºC. It exits as saturated vapor at...
Steam enters a well-insulated nozzle at 10 bar and 200ºC. It exits as saturated vapor at 100 kPa. The mass flow rate is 1 kg/s. What is the steady-state exit velocity? What is the outlet cross-sectional area?
5. Steam at 140 bar and 600 °C enters a turbine at a mass flow rate...
5. Steam at 140 bar and 600 °C enters a turbine at a mass flow rate of 0.5 kg/s. This steam exits the turbine as a saturated vapor at 300 °C. During operation, the turbine loses 200 kW of heat to the surroundings. Assume that the turbine operates at steady state and that the change of kinetic energy and gravitational energy can be ignored. (a) Sketch the system and boundary (4 points); (b) Label all mass flows and energy transfer...
Air enters an insulated turbine operating at steady state at 8.0bar, 687 °C and exits at...
Air enters an insulated turbine operating at steady state at 8.0bar, 687 °C and exits at 1 bar, 327 °C. Neglecting kinetic and potential energy changes and assuming the ideal gas model, determine (a) the work developed, in kJ per kg of air flowing through the turbine. kJ/kg (b) whether the expansion is internally reversible, irreversible, or impossible. The expansion is impossible irreversible reversible the tolerance is +/-2%
1. Superheated water steam at 5 bar and 360 C enters a turbine operating at steady...
1. Superheated water steam at 5 bar and 360 C enters a turbine operating at steady state with a volume rate of 0.7 m3/s and expanded adiabatically to the exit state of 1 bar and 200 C, respectively. Kinetics and potential energy changes can be neglected. Determine: a) (2 pts) mass flow rate in kg/s (2 pts) power developed in kW (3 pts) total rate of entropy production in kW/K (4 pts) isentropic turbine efficiency
3. Water at 20 bar, 400°C enters a turbine operating at steady state and exits at...
Water at 20 bar, 400°C enters a turbine operating at steady state and exits at 1.5 bar. Stray heat transfer and kinetic and potential energy effects are negligible. A hard-to-read datasheet indicates that the quality at the turbine exit is 98%. Can this quality value be correct? If no, explain. If yes, determine the power developed by the turbine, in kJ per kg of water flowing
Steam enters a nozzle operating at steady state at 30 bar, 320 deg C with a...
Steam enters a nozzle operating at steady state at 30 bar, 320 deg C with a velocity of 100 m/sec. The exit pressure and temperature are 10 bar and 200 deg C respectively. The mass rate of flow of steam is 2 kg/sec. Neglect heat transfer and potential energy. Determine, exit velocity in m/sec and inlet and exit flow areas in m2.
Steam enters a turbine operating at steady state at 2 MPa, 360 °C with a velocity...
Steam enters a turbine operating at steady state at 2 MPa, 360 °C with a velocity of 52 m/s. Saturated vapor exits at 0.1 MPa and a velocity of 35 m/s. The elevation of the inlet is 1 m higher than at the exit. The mass flow rate of the steam is 21 kg/s, and the power developed is 5 MW. Let g = 9.81 m/s2. Determine the area at the inlet, in m2.
A steam power plant design consists of an ideal Rankine cycle with regeneration. Steam enters Turbine...
A steam power plant design consists of an ideal Rankine cycle with regeneration. Steam enters Turbine 1 at P1 and T1 at the rate of m1 and exits at P2. A fraction (y') of the steam exiting Turbine 1 is diverted to a closed feedwater heater while the remainder enters Turbine 2. A portion (y'') of the steam exiting Turbine 2 at P3 is diverted to an open feedwater heater while the remainder enters Turbine 3. The exit of Turbine...
Problem 1: (10 pts) Steam enters an insulated turbine operating at steady state at a pressure of 2 MPa and a temperature of 400°C. A liquid-vapor water mixture exits the turbine with a quality of 0.9 and a pressure of 15 kPa. The power output of the turbine is 5 MW. (1) Identify the keywords and state their meaning (2 pts) (2) Determine the mass flow rate of steam required (8 pts)
5. Steam at 140 bar and 600 °C enters a turbine at a mass flow rate of 0.5 kg/s. This steam exits the turbine as a saturated vapor at 300 °C. During operation, the turbine loses 200 kW of heat to the surroundings. Assume that the turbine operates at steady state and that the change of kinetic energy and gravitational energy can be ignored. (a) Sketch the system and boundary (4 points); (b) Label all mass flows and energy transfer...
Air enters an insulated turbine operating at steady state at 8.0bar, 687 °C and exits at 1 bar, 327 °C. Neglecting kinetic and potential energy changes and assuming the ideal gas model, determine (a) the work developed, in kJ per kg of air flowing through the turbine. kJ/kg (b) whether the expansion is internally reversible, irreversible, or impossible. The expansion is impossible irreversible reversible the tolerance is +/-2%
1. Superheated water steam at 5 bar and 360 C enters a turbine operating at steady state with a volume rate of 0.7 m3/s and expanded adiabatically to the exit state of 1 bar and 200 C, respectively. Kinetics and potential energy changes can be neglected. Determine: a) (2 pts) mass flow rate in kg/s (2 pts) power developed in kW (3 pts) total rate of entropy production in kW/K (4 pts) isentropic turbine efficiency
