Homework Answers
Add Answer to:

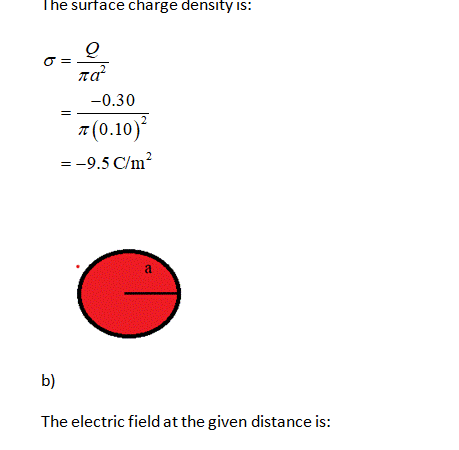

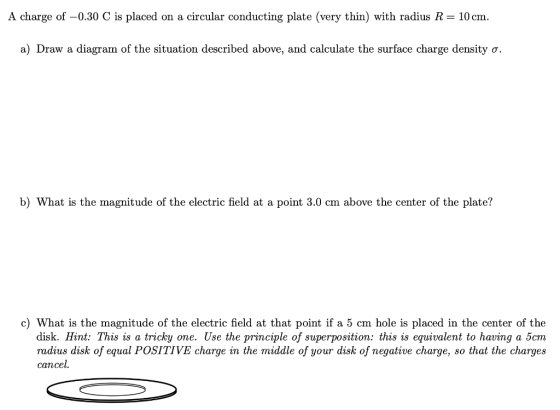

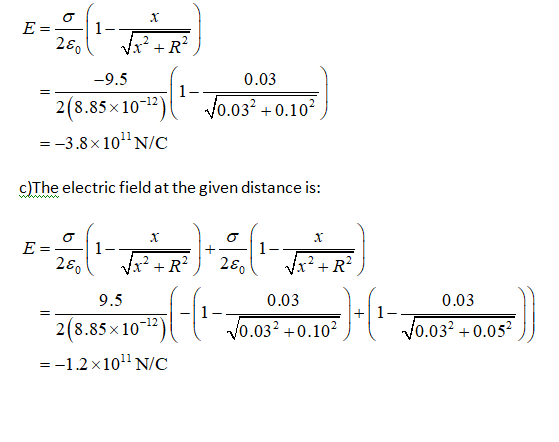

A charge of -0.30 C is placed on a circular conducting plate (very thin) with radius...
