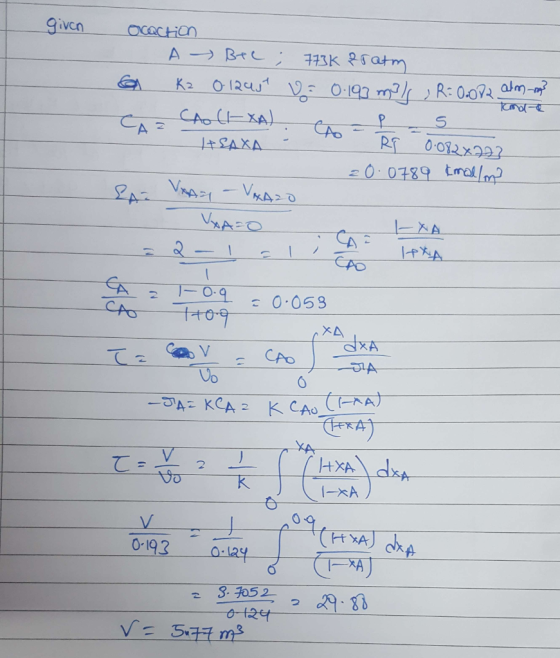

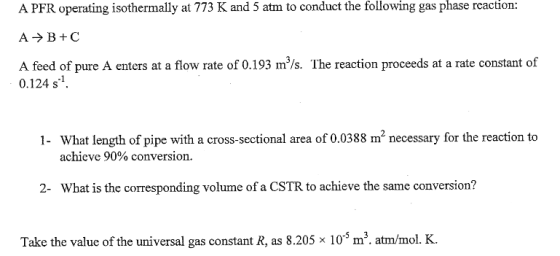

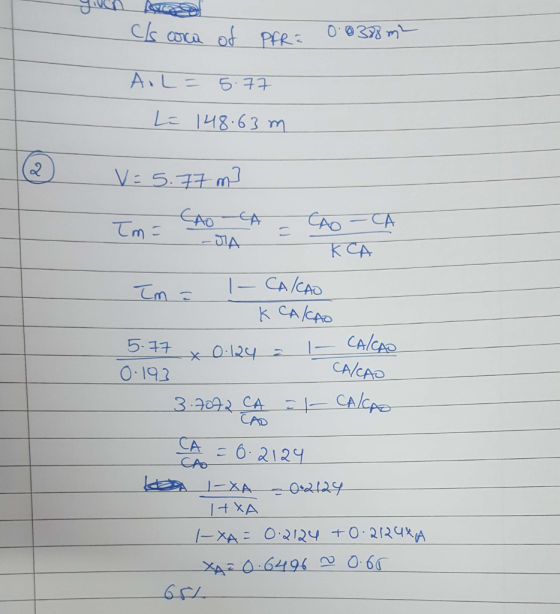

reaction: A PFR operating isothermally at 773 K and 5 atm to conduct the following gas...
2. The irreversible gas phase reaction A B is carried out isothermally in a fluidized catalytic...
2. The irreversible gas phase reaction A B is carried out isothermally in a fluidized catalytic CSTR. The reaction rate is first orderw.r.t.the partial pressure of A (-rA KA PA). With arn entering pressure 20 atm, an negligible pressure drop in CSTR, and 50 kg of catalyst, a conversion of 50% was realized for pure A feed. |-Fluidized hal oooo -catalyst o ojo | |,'-/ pellets Now, a PBR is connected to the downstream of this CSTR with a same...
Question 4. A gas phase reaction of the type A+B - C, is to be carried...
Question 4. A gas phase reaction of the type A+B - C, is to be carried out isothermally in a PFR. A feed consisting of 90% of A and 10% of B enters the reactor at a temperature of 27 °C and 10 atm. The reaction is second order with respect to A and zero order with respect to B. The rate constant, ka, is 1.5 dm²/mol.s. a) Calculate the volume required to achieve 60% conversion of A for an...
QUESTION 5 The following gas-phase reaction takes place in a plug flow reactor (a tubular reactor)...
QUESTION 5 The following gas-phase reaction takes place in a plug flow reactor (a tubular reactor) that has a diameter of 6 inches and cross sectional area of 0.1 ft2. A C.The reaction rate depends only on the concentration of A, CA, and has the following form: rate of destruction of A-k * CA , where k= 0.124 s-1. The feed consists of pure A, and enters the reactor at a volumetric flowrate of 0.22 ft3/s. Determine the required length...
Kinetic reactions Please make sure you get the same answers as written and solve all the...
Kinetic reactions
Please make sure you get the same answers as written and
solve all the parts
Thanks in advance
3. The elementary gas-phase reaction A → B + 2C gives a rate constant of 10-4 min-1 at 50°C and has an activation energy of 85 kJ mol1. This reaction is carried out in a flow reactor that is operated isothermally at 127 °C with a negligible pressure drop. The reactor feed is pure A, entering at 127 °C and...
2) ZA → B is a gas-phase elementary reaction carried out in a PFR. Conversion of...
2) ZA → B is a gas-phase elementary reaction carried out in a PFR. Conversion of A = 80%. The feed is pure A. What is conversion when the molar feed rate is cut in half?
3. The gas phase reaction A B -C, withkCACB, is to be carried out in a...
3. The gas phase reaction A B -C, withkCACB, is to be carried out in a steady-state PFR with feed composition of 60% A. 40% B, 0% C and 0% inerts. In the 50 L reactor, 60% of the stoichiometrically limiting reactant is converted. It is desired to achieve 85% conversion of this reactant by placing a CSTR after the PFR. How large should the CSTR be? Consider constant pressure operation in both reactors.
Hi everybody,can you help me for problem 4 in the attach . Thank for help! The...
Hi everybody,can you help me for problem 4 in the attach . Thank
for help!
The elementary reversible reaction A + B 2C occurs in the liquid phase in isothermal CSTR. A stream containing equimolar amounts of A and B in a solvent enters. the reactor, and the conversion of A is measured to be 60%. The equilibrium conversion o A under the same inlet conditions is known to be 80%. The volumetric flowrate into the process is to be...
An isothermal (170 °C) isobaric (6 atm) catalytic gas-phase reaction is carried out in a fluidized...
An isothermal (170 °C) isobaric (6 atm) catalytic gas-phase reaction is carried out in a fluidized CSTR: Assume that the reaction is elementary. The feed (benzene and hydrogen) is stoichiometric with θ。= 50-. The rate constant defined wrt benzene is 53 mol / (kgcat * min * atm) at 300 K with activation energy of 80 kJ/mol. What catalyst weight is required to reach 80% conversion? Hint: Use ideal gas law to relate pressure to concentrations (note the units of...
The homogeneous gas reaction 2A ---> 3R follows second-order kinetics. For a feed rate of 4m3/...
The homogeneous gas reaction 2A ---> 3R follows second-order kinetics. For a feed rate of 4m3/hr of pure A at 5 atm and 350oC, an experimental reactor consisting of a 2.5 cm ID pipe 2 m long gives 65% conversion of feed. A commercial plant is to treat 310 m3/hr of feed consisting of 50% A, 50% inerts at 25 atm and 350 degrees C to obtain 80% conversion. Assume plug flow in the pipe, negligible pressure drop, and ideal...
Hi, can you please help me with F? I know that if the volume is the...
Hi, can you please help me
with F? I know that if the volume is the same, negative order
reactions would give PFR a higher yield, however, when I tried to
do it mathematically, the units won't match because of the rate
constant. I don't know how to prove that PFR would give a higher
yield. Can i use the same rate constant but with different
units?
3. Your boss asks you to isothermally carry out a liquid-phase, irreversible reaction...
2. The irreversible gas phase reaction A B is carried out isothermally in a fluidized catalytic CSTR. The reaction rate is first orderw.r.t.the partial pressure of A (-rA KA PA). With arn entering pressure 20 atm, an negligible pressure drop in CSTR, and 50 kg of catalyst, a conversion of 50% was realized for pure A feed. |-Fluidized hal oooo -catalyst o ojo | |,'-/ pellets Now, a PBR is connected to the downstream of this CSTR with a same...
Question 4. A gas phase reaction of the type A+B - C, is to be carried out isothermally in a PFR. A feed consisting of 90% of A and 10% of B enters the reactor at a temperature of 27 °C and 10 atm. The reaction is second order with respect to A and zero order with respect to B. The rate constant, ka, is 1.5 dm²/mol.s. a) Calculate the volume required to achieve 60% conversion of A for an...
QUESTION 5 The following gas-phase reaction takes place in a plug flow reactor (a tubular reactor) that has a diameter of 6 inches and cross sectional area of 0.1 ft2. A C.The reaction rate depends only on the concentration of A, CA, and has the following form: rate of destruction of A-k * CA , where k= 0.124 s-1. The feed consists of pure A, and enters the reactor at a volumetric flowrate of 0.22 ft3/s. Determine the required length...
Kinetic reactions
Please make sure you get the same answers as written and
solve all the parts
Thanks in advance
3. The elementary gas-phase reaction A → B + 2C gives a rate constant of 10-4 min-1 at 50°C and has an activation energy of 85 kJ mol1. This reaction is carried out in a flow reactor that is operated isothermally at 127 °C with a negligible pressure drop. The reactor feed is pure A, entering at 127 °C and...
2) ZA → B is a gas-phase elementary reaction carried out in a PFR. Conversion of A = 80%. The feed is pure A. What is conversion when the molar feed rate is cut in half?
3. The gas phase reaction A B -C, withkCACB, is to be carried out in a steady-state PFR with feed composition of 60% A. 40% B, 0% C and 0% inerts. In the 50 L reactor, 60% of the stoichiometrically limiting reactant is converted. It is desired to achieve 85% conversion of this reactant by placing a CSTR after the PFR. How large should the CSTR be? Consider constant pressure operation in both reactors.
Hi everybody,can you help me for problem 4 in the attach . Thank
for help!
The elementary reversible reaction A + B 2C occurs in the liquid phase in isothermal CSTR. A stream containing equimolar amounts of A and B in a solvent enters. the reactor, and the conversion of A is measured to be 60%. The equilibrium conversion o A under the same inlet conditions is known to be 80%. The volumetric flowrate into the process is to be...
An isothermal (170 °C) isobaric (6 atm) catalytic gas-phase reaction is carried out in a fluidized CSTR: Assume that the reaction is elementary. The feed (benzene and hydrogen) is stoichiometric with θ。= 50-. The rate constant defined wrt benzene is 53 mol / (kgcat * min * atm) at 300 K with activation energy of 80 kJ/mol. What catalyst weight is required to reach 80% conversion? Hint: Use ideal gas law to relate pressure to concentrations (note the units of...
Hi, can you please help me
with F? I know that if the volume is the same, negative order
reactions would give PFR a higher yield, however, when I tried to
do it mathematically, the units won't match because of the rate
constant. I don't know how to prove that PFR would give a higher
yield. Can i use the same rate constant but with different
units?
3. Your boss asks you to isothermally carry out a liquid-phase, irreversible reaction...
