Homework Answers
Add Answer to:

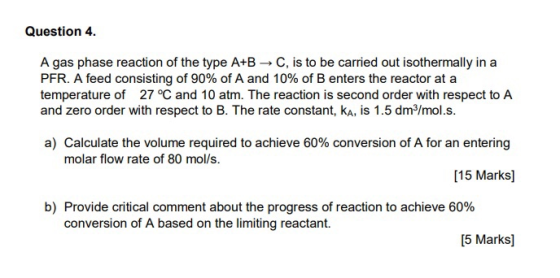

Question 4. A gas phase reaction of the type A+B - C, is to be carried...
3. The gas phase reaction A B -C, withkCACB, is to be carried out in a...
3. The gas phase reaction A B -C, withkCACB, is to be carried out in a steady-state PFR with feed composition of 60% A. 40% B, 0% C and 0% inerts. In the 50 L reactor, 60% of the stoichiometrically limiting reactant is converted. It is desired to achieve 85% conversion of this reactant by placing a CSTR after the PFR. How large should the CSTR be? Consider constant pressure operation in both reactors.
Question 1: Design of isothermal reactors 30 Marks The irreversible, gas-phase reaction A+B D is to be carried out...
Question 1: Design of isothermal reactors 30 Marks The irreversible, gas-phase reaction A+B D is to be carried out in an isotherma °C) plug-flow reactor (PFR) at 5.0 atm. The mole fractions of the feed streams are A 0 B 0.50, and inerts 0.30. The activation energy for the above reaction is 80 000 cal/mol. the pressure drop due to fluid friction in the reactor is so small that it can be ignored, perform the following tasks: 2T a s...
energy il Camor P5-30 Pressure Drop. The gas phase reaction A+B C+D is carried out isothermally...
energy il Camor P5-30 Pressure Drop. The gas phase reaction A+B C+D is carried out isothermally at 227 C in a packed-bed reactor with 100 kg of catalyst. The reaction is first order in A and first order in B. The entering pres- sure was 20 atm and the exit pressure is 1 atm. The feed is equal molar in A onigA and B and the flow is in the turbulent regime with FA0 10 mol/min and CAO= 0.25 mol/dm3....
2) ZA → B is a gas-phase elementary reaction carried out in a PFR. Conversion of...
2) ZA → B is a gas-phase elementary reaction carried out in a PFR. Conversion of A = 80%. The feed is pure A. What is conversion when the molar feed rate is cut in half?
An acid-catalyzed irreversible liquid-phase reaction A B is carried out adiabatically in a CSTR. The reaction is second...
An acid-catalyzed irreversible liquid-phase reaction A B is carried out adiabatically in a CSTR. The reaction is second order in A. The feed is equimolar A and solvent (S, which contains catalyst), and enters the reactor at a total volumetric flow rate of 10 dm3/min at a concentration of A of 4 mol/L. The feed enters at 300 K. The product and reactant heat capacities are 15 cal/(mol°C), the solvent is 18 cal/(mol°C). The reaction rate constant at 300 K...
(3) The gas phase reaction 2A +B- C is carried out in an isothermal PFR without...
(3) The gas phase reaction 2A +B- C is carried out in an isothermal PFR without pressure drop. At the entrance, the feed contains 1/2 molar fraction of A, 1/3 molar fraction of B and 1/6 molar fraction of inert chemical I. The entrance temperature is 500K and the entrance pressure is 16.4 atm. If the conversion of A at the exit is 0.8, what is the conversion of B?
Hi everybody,can you help me for problem 4 in the attach . Thank for help! The...
Hi everybody,can you help me for problem 4 in the attach . Thank
for help!
The elementary reversible reaction A + B 2C occurs in the liquid phase in isothermal CSTR. A stream containing equimolar amounts of A and B in a solvent enters. the reactor, and the conversion of A is measured to be 60%. The equilibrium conversion o A under the same inlet conditions is known to be 80%. The volumetric flowrate into the process is to be...
The elementary gas-phase reaction (CH3)3COOC(CH3)3 → C2H6 + 2CH3COCH3 A → B + 2C is carried...
The elementary gas-phase reaction (CH3)3COOC(CH3)3 → C2H6 + 2CH3COCH3 A → B + 2C is carried out isothermally at 400 K in a flow reactor with no pressure drop. The reaction rate constant at 50°C is 10–4 min–1 and the activation energy is 85 kJ/mol. Pure di-tert-butyl peroxide enters the reactor at 10 atm and 127°C and a molar flow rate of 2.5 mol/min, i.e., FA0 = 2.5 mol/min. (d) There appears to be uniform leakage of Ethane through the...
The irreversible elementary gas-phase reaction A + B ) C + D is carried out isothermally...
The irreversible elementary gas-phase reaction A + B ) C + D is carried out isothermally at 305K in a packed bed reactor with 100 kg catalyst of particle size 8 mm. The entering pressure is 20 atm and the exit pressure is 2 atm. The feed rate is equal molar in A and B and the flow is in the turbulent flow regime, with FA0-10 mol/min and CA 0.4 mol/dm3. Currently 80% conversion is achieved. a) What would be...
a catalytic reaction of gas phase A-R is carried out in a PFR containing 0.01 kg...
a catalytic reaction of gas phase A-R is carried out
in a PFR containing 0.01 kg of solid catalyst, feed rate, Fao =
1500mol / hour. the reactor is operated at 3.2 atm and 117 C.
kinetics data are shown in the following table
determine :
a. reaction order
b.weight of catalyst required of conversion is 35%
uToper 3 2 Run 0,040 0,038 0,060 0,080 0,100 0,084 CAins mol/liter 0,055 0,070 Caut mol/liter
3. The gas phase reaction A B -C, withkCACB, is to be carried out in a steady-state PFR with feed composition of 60% A. 40% B, 0% C and 0% inerts. In the 50 L reactor, 60% of the stoichiometrically limiting reactant is converted. It is desired to achieve 85% conversion of this reactant by placing a CSTR after the PFR. How large should the CSTR be? Consider constant pressure operation in both reactors.
Question 1: Design of isothermal reactors 30 Marks The irreversible, gas-phase reaction A+B D is to be carried out in an isotherma °C) plug-flow reactor (PFR) at 5.0 atm. The mole fractions of the feed streams are A 0 B 0.50, and inerts 0.30. The activation energy for the above reaction is 80 000 cal/mol. the pressure drop due to fluid friction in the reactor is so small that it can be ignored, perform the following tasks: 2T a s...
energy il Camor P5-30 Pressure Drop. The gas phase reaction A+B C+D is carried out isothermally at 227 C in a packed-bed reactor with 100 kg of catalyst. The reaction is first order in A and first order in B. The entering pres- sure was 20 atm and the exit pressure is 1 atm. The feed is equal molar in A onigA and B and the flow is in the turbulent regime with FA0 10 mol/min and CAO= 0.25 mol/dm3....
2) ZA → B is a gas-phase elementary reaction carried out in a PFR. Conversion of A = 80%. The feed is pure A. What is conversion when the molar feed rate is cut in half?
An acid-catalyzed irreversible liquid-phase reaction A B is carried out adiabatically in a CSTR. The reaction is second order in A. The feed is equimolar A and solvent (S, which contains catalyst), and enters the reactor at a total volumetric flow rate of 10 dm3/min at a concentration of A of 4 mol/L. The feed enters at 300 K. The product and reactant heat capacities are 15 cal/(mol°C), the solvent is 18 cal/(mol°C). The reaction rate constant at 300 K...
(3) The gas phase reaction 2A +B- C is carried out in an isothermal PFR without pressure drop. At the entrance, the feed contains 1/2 molar fraction of A, 1/3 molar fraction of B and 1/6 molar fraction of inert chemical I. The entrance temperature is 500K and the entrance pressure is 16.4 atm. If the conversion of A at the exit is 0.8, what is the conversion of B?
Hi everybody,can you help me for problem 4 in the attach . Thank
for help!
The elementary reversible reaction A + B 2C occurs in the liquid phase in isothermal CSTR. A stream containing equimolar amounts of A and B in a solvent enters. the reactor, and the conversion of A is measured to be 60%. The equilibrium conversion o A under the same inlet conditions is known to be 80%. The volumetric flowrate into the process is to be...
The irreversible elementary gas-phase reaction A + B ) C + D is carried out isothermally at 305K in a packed bed reactor with 100 kg catalyst of particle size 8 mm. The entering pressure is 20 atm and the exit pressure is 2 atm. The feed rate is equal molar in A and B and the flow is in the turbulent flow regime, with FA0-10 mol/min and CA 0.4 mol/dm3. Currently 80% conversion is achieved. a) What would be...
a catalytic reaction of gas phase A-R is carried out
in a PFR containing 0.01 kg of solid catalyst, feed rate, Fao =
1500mol / hour. the reactor is operated at 3.2 atm and 117 C.
kinetics data are shown in the following table
determine :
a. reaction order
b.weight of catalyst required of conversion is 35%
uToper 3 2 Run 0,040 0,038 0,060 0,080 0,100 0,084 CAins mol/liter 0,055 0,070 Caut mol/liter
