An RC circuit, hooked up to a battery as shown in the figure, starts with an...

An RC circuit, hooked up to a battery as shown in the figure, starts with an uncharged capacitor. The resistance in the circuit is R = 855.0 ? the capacitor has capacitance of C = 57.0 ?F and the battery maintains the emf of ? = 26.0 V. The switch is closed at time t = 0.0 s and the capacitor begins to charge.

An RC circuit, hooked up to a battery as shown in

a) What is the time constant for this circuit?
4.874×10-2 s (IS CORRECT)

b) What is the charge on the capacitor after the switch has been closed for t = 7.12×10-2 s?

c) What is the current through the circuit after the switch has been closed for t = 7.12×10-2 s?

d) What is the voltage across the capacitor after the switch has been closed for t = 7.12×10-2 s?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

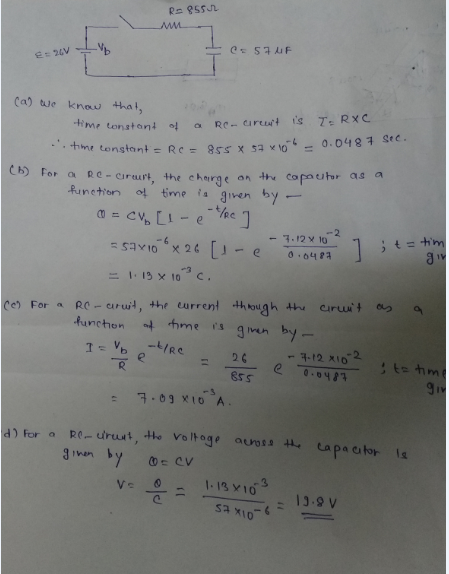

0.1 = 0.0487 Ste. as a h) For α Re-creurt, the charge an capa e/hr function ot time is given byー 2 1-13 10-3 C. me rs 261-12

0 0
Add a comment
Know the answer?
Add Answer to:
An RC circuit, hooked up to a battery as shown in the figure, starts with an...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Problem 5 An RC circuit, hooked up to a battery as shown in the figure below,...

    Problem 5 An RC circuit, hooked up to a battery as shown in the figure below, starts with an uncharged capacitor. The resistance in the circuit is R= 702. Ω the capacitor has capacitance C-58.0 μF and the battery maintains the emfofE-21.0 V. The switch is closed at time t 0.00s and the capacitor begins to charge. a) What is the time constant for this circuit? Submit AnswerTries 0/6 b) What is the charge on the capacitor after the switch...

  • Q2. In the RC Circuit shown in Figure 2, the capacitor is initially uncharged (at time...

    Q2. In the RC Circuit shown in Figure 2, the capacitor is initially uncharged (at time t=0). 2- In the RC Circuit shown in Figure 2, the capacitor is initially uncharged (at time t=0). (ignore the internal resistance of the battery) Figure 2 C= 5.0nF a) Calculate the current I released by the battery, just after the switch S is closed at t=0, (7 pts) b) Calculate the max. power dissipated in the lightbulb, (9 pts) c) Now lets open...

  • In the RC circuit shown in the figure below, an ideal battery with emf is uncharged....

    In the RC circuit shown in the figure below, an ideal battery with emf is uncharged. At t-0, the switch is closed and internal resistance r is connected to capacitor C. The switch S is initially open and the capacitor b K (a) Determine the charge q on the capacitor at time t. (Use any variable or symbol stated above along with the following as necessary: R. To represent 8, use E.) q= (b) Find the current in the branch...

  • Consider an RC circuit in which a capacitor is being charged by a battery connected in...

    Consider an RC circuit in which a capacitor is being charged by a battery connected in a circuit. Initially the capacitor is uncharged. Then the switch is closed. After a time equal to 2.9 time constants, what percent of the final charge is present on the capacitor? Answer in units of %.

  • Consider the RC circuit in the figure. The switch has been open for a long time...

    Consider the RC circuit in the figure. The switch has been open for a long time and is closed at t=0s. The capacitor initially uncharged. (a) Immediately after the switch is closed, what is value of the current through each resistor? (b) After a long time has elapsed and the capacitor is fully charged, what is the value of the current through each resistor and the charge on the capacitor?

  • The figures show a simple RC circuit consisting of a 120.0 V battery in series with...

    The figures show a simple RC circuit consisting of a 120.0 V battery in series with a 15.0 μF capacitor and a resistor. Initially, the switch S is open and the capacitor is uncharged. Two seconds after the switch is closed, the voltage across the resistor is 50 V. Q: How much charge is on the capacitor 2.0s after the switch is closed?

  • The resistor in an RC circuit has a resistance of 135 Ω . Part A What...

    The resistor in an RC circuit has a resistance of 135 Ω . Part A What capacitance must be used in this circuit if the time constant is to be 3.6 ms ? Part B Using the capacitance determined in part (a), calculate the current in the circuit 7.2 ms after the switch is closed. Assume that the capacitor is uncharged initially and that the emf of the battery is 9.0 V.

  • Power in RC Circuits- RC-9 A battery with &-15.0V is connected in series with a resistor...

    Power in RC Circuits- RC-9 A battery with &-15.0V is connected in series with a resistor and capacitor in the circuit shown to the right. At r-0 the capacitor is uncharged and the switch is closed. a) Find the current in the circuit at t-1.00s. b) Find the rate at which the resistor is converting energy in the circuit into heat at t-1.00s. Hint: what are the units for the rate of transfer of energy? c) Find the rate at...

  • Two Loop RC Circuit A circuit is constructed with four resistors, one capacitor, one battery and...

    Two Loop RC Circuit A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown. The values for the resistors are R: R2 = 26 Ω, R: 98 Ω and R4 134 Ω. The capacitance is C-42 uF and the battery voltage is v 12 V. The positive terminal of the battery is indicated with a + sign. R3 1) The switch has been open for a long time when at time t + o,...
