The resistor in an RC circuit has a resistance of 135 Ω . Part A What...

The resistor in an RC circuit has a resistance of 135 Ω . Part A What capacitance must be used in this circuit if the time constant is to be 3.6 ms ? Part B Using the capacitance determined in part (a), calculate the current in the circuit 7.2 ms after the switch is closed. Assume that the capacitor is uncharged initially and that the emf of the battery is 9.0 V.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

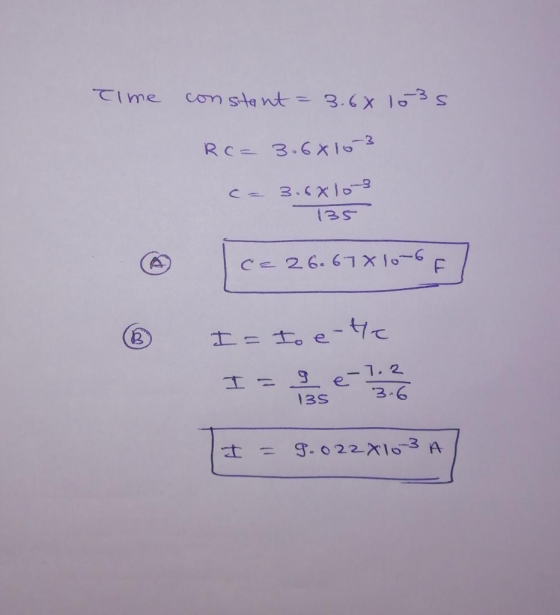

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
The resistor in an RC circuit has a resistance of 135 Ω . Part A What...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The resistor in an RC circuit has a resistance of 155 Ω . Part A What...

    The resistor in an RC circuit has a resistance of 155 Ω . Part A What capacitance must be used in this circuit if the time constant is to be 4.2 ms ? Express your answer using two significant figures. C C =   μF   Part B: Using the capacitance determined in part (a), calculate the current in the circuit 8.4 ms after the switch is closed. Assume that the capacitor is uncharged initially and that the emf of the battery...

  • Please show step by step to how you got to the solution. Thanks! Problem 21.78 7088...

    Please show step by step to how you got to the solution. Thanks! Problem 21.78 7088 Review The resistor in an RC circuit has a resistance of 125 12 Part A What capacitance must be used in this circuit if the time constant is to be 4.0 ms? Express your answer using two significant figures. O ALOM O O ? Submit Request Answer Part B Using the capacitance determined in part (a), calculate the current in the circuit 8.0 ms...

  • A simply RC circuit made up of a capacitor with capacitance C and resistor with resistance...

    A simply RC circuit made up of a capacitor with capacitance C and resistor with resistance R = 15 kΩ is attached to a battery with emf E = 24 V. If time constant is 25 µs, what is the capacitance C and the time it takes for the voltage across the capacitor to reach 16 V after the switch is closed at t = 0?

  • An RC circuit, hooked up to a battery as shown in the figure, starts with an...

    An RC circuit, hooked up to a battery as shown in the figure, starts with an uncharged capacitor. The resistance in the circuit is R = 855.0 ? the capacitor has capacitance of C = 57.0 ?F and the battery maintains the emf of ? = 26.0 V. The switch is closed at time t = 0.0 s and the capacitor begins to charge. a) What is the time constant for this circuit? 4.874×10-2 s (IS CORRECT) b) What is...

  • A circuit consists of a battery, a 100 kΩ resistor, 20.0 μF capacitor in series with...

    A circuit consists of a battery, a 100 kΩ resistor, 20.0 μF capacitor in series with a switch which is initially in the open position. The capacitor is initially uncharged. Part A) If the EMF of the battery is ε=15.1 V, calculate the current through the resistor 6.00 seconds after the switch is closed. (Give answer in μA) Part B) Calculate the charge on the capacitor 6.00 seconds after the switch is closed. (Give answer in μC)

  • Review Part A The capacitor in an RC circuit (R-120 Ω , C-50 μF ) is...

    Review Part A The capacitor in an RC circuit (R-120 Ω , C-50 μF ) is iniially uncharged Find the charge on the capacitor in the circuit one time constant RC) after the circuit is connected to a 9.0-V battery. Express your answer using two significant figures gr)- 2.8 104 AC Submit Incorrect; Try Again; 5 attempts remaining Part B Find the current in the circuit one time constantRC) after the circuit is connected to a 9.0-V battery. Express your...

  • 5,6,8 plz will rate :) In the RC circuit, the emf & - 12.0 V, resistance...

    5,6,8 plz will rate :) In the RC circuit, the emf & - 12.0 V, resistance R -1.40 M.2, and capacitance C=1.80 uF. 5. What is the current in the circuit the instant the switch is closed? 6. What is the initial charge on the capacitor? 7. What is the time constant for the RC circuit? 8. How much charge is on the capacitor after on time constant?

  • 20. [10pt] A RC series circuit, with R 6.50 and C-: 7.10 μ F, is connected through a switch to a battery with an emf of 5.50 Volt (assumed to have no internal resistance). If the capacitor is ini...

    20. [10pt] A RC series circuit, with R 6.50 and C-: 7.10 μ F, is connected through a switch to a battery with an emf of 5.50 Volt (assumed to have no internal resistance). If the capacitor is initially uncharged, what will the current through the resistor be 23.08 milliseconds ater the switch is closed? 21. [10pt] The electric potential at a point located 18.90 mm from a positive charge of 5.2 C and 70 mm from a second charge...

  • A) Consider a resistor series RC circuit with a 7.9 μF, capacitor, a 4 × 106...

    A) Consider a resistor series RC circuit with a 7.9 μF, capacitor, a 4 × 106 Ω resistor and 23 V emf. Find the time constant of the circuit. Answer in units of s. B) Find the maximum charge on the capacitor after a switch in the circuit is closed. Answer in units of C.
