1.5kg of saturated water vapor at 200C is compressed isentropically to 7.0MPa in a closed system....

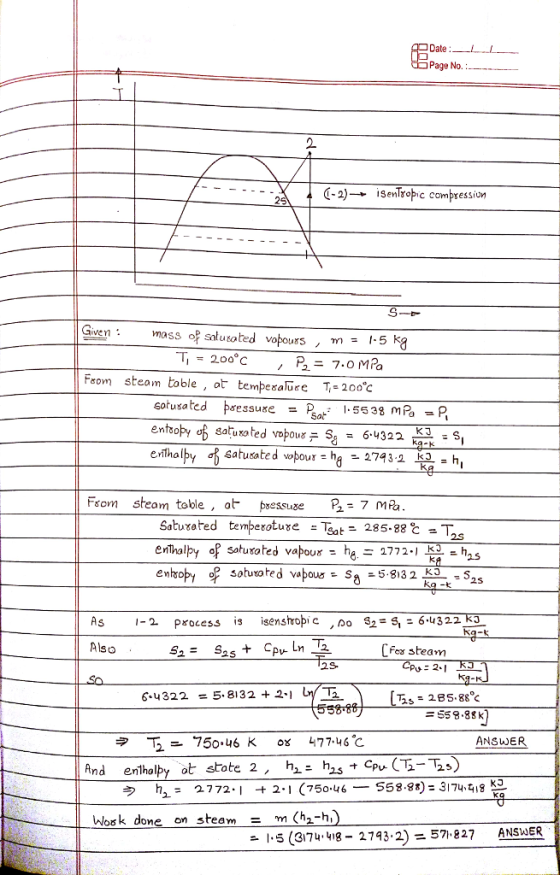

1.5kg of saturated water vapor at 200C is compressed isentropically to 7.0MPa in a closed system. Determine the final temperature of the steam and the amount of work done on steam. Show the process on T-s diagram with respect to saturation lines.
Homework Answers
Add Answer to:
1.5kg of saturated water vapor at 200C is compressed
isentropically to 7.0MPa in a closed system....
Consider a 300 kJ/min refrigeration system that operates on an ideal vapor-compression refrigerat...
Consider a 300 kJ/min refrigeration system that operates on an ideal vapor-compression refrigeration cycle with R-134a as the working fluid. The refrigerant enters the compressor as saturated vapor at 140 kPa and is compressed to 800 kPa. Show the cycle on a T-s diagram with respect to saturation lines and determine (a) the quality of the refrigerant at the end of the throttling process, (b) coefficient of performance, (c) the power input to the compressor , (d) Generation of entropy...
Eight (8) kilogram of saturated vapor of refrigerant R-134a is contained in a closed frictionless piston-cylinder...
Eight (8) kilogram of saturated vapor of refrigerant R-134a is contained in a closed frictionless piston-cylinder device at a pressure of 200 kPa. Heat is then transferred to the refrigerant. At the end of the process, the refrigerant has a temperature of 70 °C. Determine the amount of heat that is transferred during the process. Also, show the process on a T-v diagram with respect to the saturated liquid and vapor lines. (35 points).
2.Water, initially saturated vapor at 14.6 bar, fills a closed, rigid container. The water is heated...
2.Water, initially saturated vapor at 14.6 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the heat transfer, in kJ/kg. Kinetic and potential energy effects can be ignored. 3.A piston-cylinder assembly contains 4 kg of water at 211.4oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 50.8 bar. During compression, there is a heat transfer of energy from the water to its...
A mass of 5 kg of saturated liquid-vapor mixture of water is contained in a piston-...
A mass of 5 kg of saturated liquid-vapor mixture of water is contained in a piston- cylinder device at 125 kPa. Initially. 3 kg of the water is in the liquid phase and the rest is in the vapor phase. Heat is now transferred to the water, and the piston, which is resting on a set of stops, starts moving when the pressure inside reaches 300 kPa. Heat transfer continues until the total volume increases by 10%. We denote the...
2) A) Water, initially saturated vapor at 10.8 bar, fills a closed, rigid container. The water...
2) A) Water, initially saturated vapor at 10.8 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the heat transfer, in kJ/kg. Kinetic and potential energy effects can be ignored. B) A piston-cylinder assembly contains 2 kg of water at 210.6oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 50.7 bar. During compression, there is a heat transfer of energy from the...
An insulated rigid vessel contains 5kg of saturated liquid-vapor mixture of Refrigerant- 134a at 200kPa. At...
An insulated rigid vessel contains 5kg of saturated liquid-vapor mixture of Refrigerant- 134a at 200kPa. At this stage, one-fifth of the mass is in vapor phase and rest is in liquid. Now using an electrical resistance heater, heat is supplied to the contents of the vessel until all of the refrigerant is converted to saturated vapor. Show this process on a P v diagram with respect to saturation lines and determine, 1. volume of the rigid vessel 2. temperature, in...
The 5 phases are Compressed liquid,saturatad liquid, saturated Liquid, Saturated Vapor and Superheated Vapor. Can someone...
The 5 phases are Compressed liquid,saturatad liquid, saturated
Liquid, Saturated Vapor and Superheated Vapor.
Can someone help
Problem Statement This assignment should be completed in self-selected groups of 2-3 students. You and your teammates will construct a Concept Map that clearly illustrates how to use the "steam tables" (A-4 through A-7 in SI units) to find the thermodynamic properties and/or determine the phase of water Your maps should include the following concepts (at a minimum): All 5 phases discussed in...
4.) A 0.5 kg of saturated water vapor at 300°C is heated in a piston-cylinder device....
4.) A 0.5 kg of saturated water vapor at 300°C is heated in a piston-cylinder device. Now the steam expanded reversibly and isothermally to a final pressure of 600 kPa. Determine the heat transferred during this process. - Determine the work done during the process. Plot the PV diagram showing all the states and numbers on it.
A 0.5 kg of saturated water vapor at 300°C is heated in a piston–cylinder device. Now...
A 0.5 kg of saturated water vapor at 300°C is heated in a piston–cylinder device. Now the steam expanded reversibly and isothermally to a final pressure of 600 kPa. 1. Determine the heat transferred during this process. 2. Determine the work done during the process. 3. Plot the PV diagram showing all the states and numbers on it.
A 0.5 kg of saturated water vapor at 300°C is heated in a piston–cylinder device. Now...
A 0.5 kg of saturated water vapor at 300°C is heated in a piston–cylinder device. Now the steam expanded reversibly and isothermally to a final pressure of 600 kPa. 1. Determine the heat transferred during this process. 2. Determine the work done during the process. 3. Plot the PV diagram showing all the states and numbers on it.
Consider a 300 kJ/min refrigeration system that operates on an ideal vapor-compression refrigeration cycle with R-134a as the working fluid. The refrigerant enters the compressor as saturated vapor at 140 kPa and is compressed to 800 kPa. Show the cycle on a T-s diagram with respect to saturation lines and determine (a) the quality of the refrigerant at the end of the throttling process, (b) coefficient of performance, (c) the power input to the compressor , (d) Generation of entropy...
Eight (8) kilogram of saturated vapor of refrigerant R-134a is contained in a closed frictionless piston-cylinder device at a pressure of 200 kPa. Heat is then transferred to the refrigerant. At the end of the process, the refrigerant has a temperature of 70 °C. Determine the amount of heat that is transferred during the process. Also, show the process on a T-v diagram with respect to the saturated liquid and vapor lines. (35 points).
A mass of 5 kg of saturated liquid-vapor mixture of water is contained in a piston- cylinder device at 125 kPa. Initially. 3 kg of the water is in the liquid phase and the rest is in the vapor phase. Heat is now transferred to the water, and the piston, which is resting on a set of stops, starts moving when the pressure inside reaches 300 kPa. Heat transfer continues until the total volume increases by 10%. We denote the...
An insulated rigid vessel contains 5kg of saturated liquid-vapor mixture of Refrigerant- 134a at 200kPa. At this stage, one-fifth of the mass is in vapor phase and rest is in liquid. Now using an electrical resistance heater, heat is supplied to the contents of the vessel until all of the refrigerant is converted to saturated vapor. Show this process on a P v diagram with respect to saturation lines and determine, 1. volume of the rigid vessel 2. temperature, in...
The 5 phases are Compressed liquid,saturatad liquid, saturated
Liquid, Saturated Vapor and Superheated Vapor.
Can someone help
Problem Statement This assignment should be completed in self-selected groups of 2-3 students. You and your teammates will construct a Concept Map that clearly illustrates how to use the "steam tables" (A-4 through A-7 in SI units) to find the thermodynamic properties and/or determine the phase of water Your maps should include the following concepts (at a minimum): All 5 phases discussed in...
4.) A 0.5 kg of saturated water vapor at 300°C is heated in a piston-cylinder device. Now the steam expanded reversibly and isothermally to a final pressure of 600 kPa. Determine the heat transferred during this process. - Determine the work done during the process. Plot the PV diagram showing all the states and numbers on it.
