2) A) Water, initially saturated vapor at 10.8 bar, fills a closed, rigid container. The water...

2)

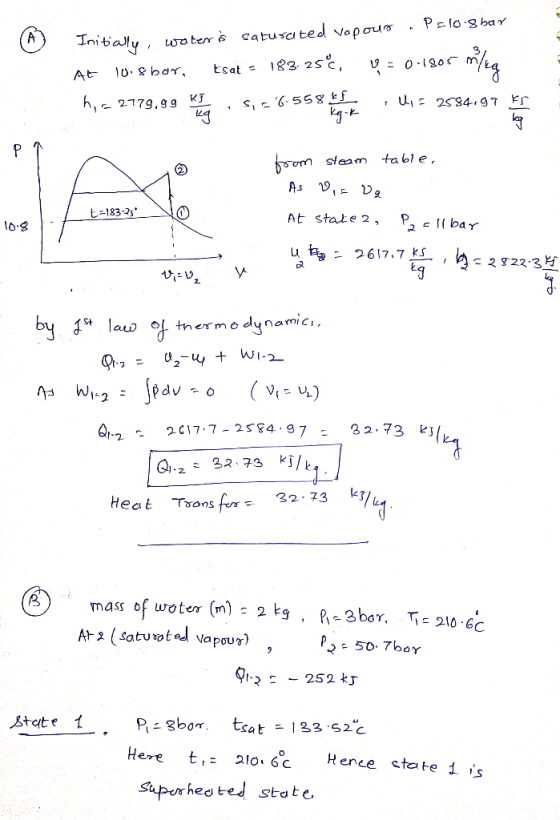

A) Water, initially saturated vapor at 10.8 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the heat transfer, in kJ/kg. Kinetic and potential energy effects can be ignored.

B) A piston-cylinder assembly contains 2 kg of water at 210.6oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 50.7 bar. During compression, there is a heat transfer of energy from the water to its surroundings having a magnitude of 252 kJ. Neglecting changes in kinetic energy and potential energy, determine the work, in kJ, for the process of the water.

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
2) A) Water, initially saturated vapor at 10.8 bar, fills a closed, rigid container. The water...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Water, initially saturated vapor at 2 bar, fills a closed, rigid container. The water is heated...

    Water, initially saturated vapor at 2 bar, fills a closed, rigid container. The water is heated until its temperature is 400°C. For the water, determine the heat transfer, in kJ per kg of water.

  • Water, initially saturated vapor at 11.5 bar, fills a closed, rigid container. The water is heated...

    Water, initially saturated vapor at 11.5 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the pressure at the final state, in bar.

  • Water, initially saturated vapor at 14.1 bar, fills a closed, rigid container. The water is heated...

    Water, initially saturated vapor at 14.1 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the pressure at the final state, in bar.

  • Need Help with Thermodynamics Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at...

    Need Help with Thermodynamics Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 239°C from a pressure of 5.6 bar to a pressure of 3.4 bar. Evaluate the work, in kJ/kg. ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Water, initially saturated vapor at 10.7 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the heat transfer, in kJ/kg. Kinetic and potential energy effects can be ignored.

  • A piston-cylinder assembly contains 2.8 kg of water at 237.3°C and 3 bar. The water is...

    A piston-cylinder assembly contains 2.8 kg of water at 237.3°C and 3 bar. The water is compressed to a saturated vapor state where the pressure is 52 bar. During compression, there is a heat transfer of energy from the water to its surroundings having a magnitude of 213 kJ. Neglecting changes in kinetic energy and potential energy, determine the work, in kJ, for the process of the water.

  • 1.) a) Water in a piston–cylinder assembly undergoes a constant-pressure process at 30 bar from T1...

    1.) a) Water in a piston–cylinder assembly undergoes a constant-pressure process at 30 bar from T1 = 255.1°C to saturated vapor. Determine the work for the process, in kJ per kg of water. b) A piston-cylinder assembly contains 4.4 kg of water at 238oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 53.9 bar. During compression, there is a heat transfer of energy from the water to its surroundings having a magnitude...

  • Problem 3.034 A closed, rigid tank is filled with water. Initially, the tank holds 1.0 lb...

    Problem 3.034 A closed, rigid tank is filled with water. Initially, the tank holds 1.0 lb of saturated vapor and 6.0 lb of saturated liquid, each at 212°F. The water is heated until the tank contains only saturated vapor. Kinetic and potential energy effects can be ignored Determine the volume of the tank, in ft3, the temperature at the final state, in °F, and the heat transfer, in Btu

  • Problem 6.024 SI Two kilograms of water contained in a piston-cylinder sembly, initially saturated vapor at...

    Problem 6.024 SI Two kilograms of water contained in a piston-cylinder sembly, initially saturated vapor at 340 kPa, is condensed at constant pressure to saturated liquid. Consider an enlarged system consisting of the water and enough of the nearby surroundings that heat transfer occurs only at the ambient temperature of 25°C. Assume the state of the nearby surroundings does not change during the process, and ignore kinetic and potential energy effects For the enlarged system, determine the heat transfer, in...

  • 2 kg Water in a vertical piston cylinder arrangement, is initially at saturated liquid state at...

    2 kg Water in a vertical piston cylinder arrangement, is initially at saturated liquid state at 3 bar. It is heated and undergoes constant pressure expansion to a state of saturated vapor. What is the work done by the piston cylinder arrangement to the environment? Neglect the mass of the piston, piston friction, kinetic and potential energy changes. Hint: this is a closed system problem, remember control volume boundary work concept. What is the heat transfer into the water?

  • Problem 3.034 A closed, rigid tank is filled with water. Initially, the tank holds 1.0 lb...

    Problem 3.034 A closed, rigid tank is filled with water. Initially, the tank holds 1.0 lb of saturated vapor and 6.0 lb of saturated liquid, each at 212°F. The water is heated until the tank contains only saturated vapor. Kinetic and potential energy effects can be ignored. Determine the volume of the tank, in ft3, the temperature at the final state, in °F, and the heat transfer, in Btu. ? Step 1 KI Your answer is incorrect. Try again. Determine...
