Water, initially saturated vapor at 2 bar, fills a closed, rigid container. The water is heated...
Water, initially saturated vapor at 2 bar, fills a closed, rigid
container. The water is heated until its temperature is
400°C.
For the water, determine the heat transfer, in kJ per kg of
water.

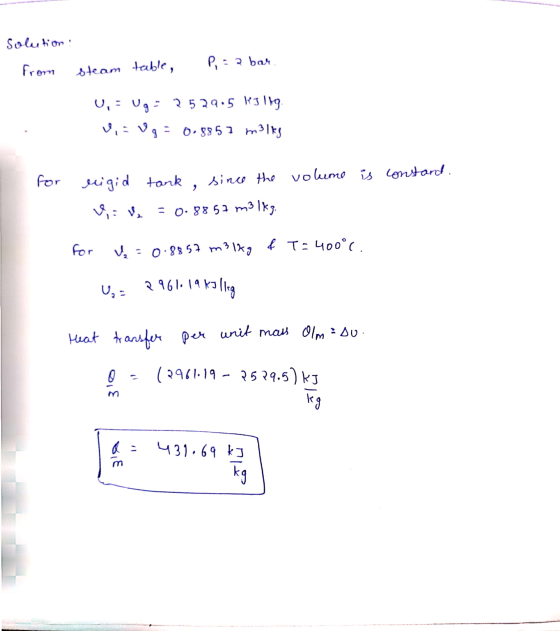

Homework Answers
thankyou...please
upvote it...Add Answer to:
Water, initially saturated vapor at 2 bar, fills a closed, rigid
container. The water is heated...
