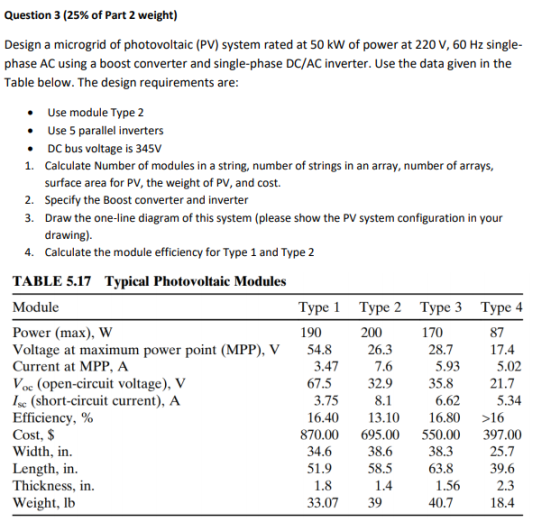

Design a microgrid of photovoltaic (PV) system rated at 50 kW of power at 220 V, 60 Hz singlephase AC using a boost converter and single-phase DC/AC inverter. Use the data given in the Table below. The design requirements are:
