Homework Answers
This question belongs to the
concept of operational amplifier.
Here we will not use any formulae,just use the concept of virtual ground and apply the KCL equation to get the answer.

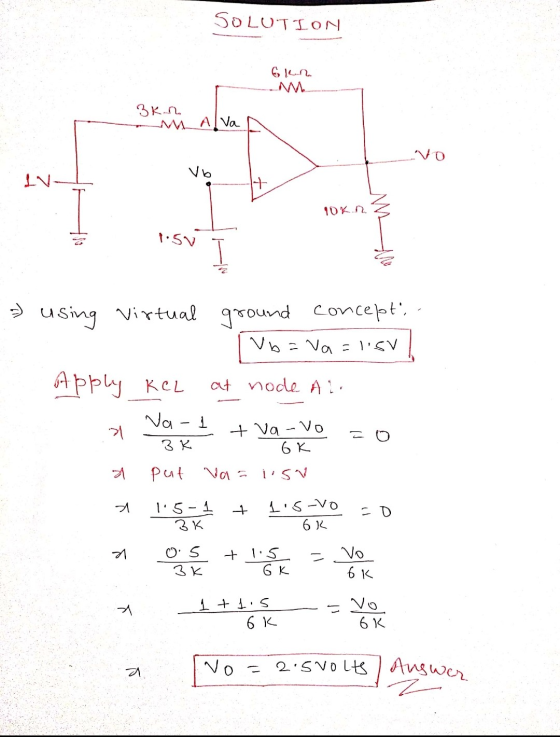

Please see the solution i have solved it step by step.
I have tried my best to make you understand this question,if you have any doubt, Please ask in comments, I'll be there to help you.
HOPE YOU LIKE THIS........
Add Answer to:

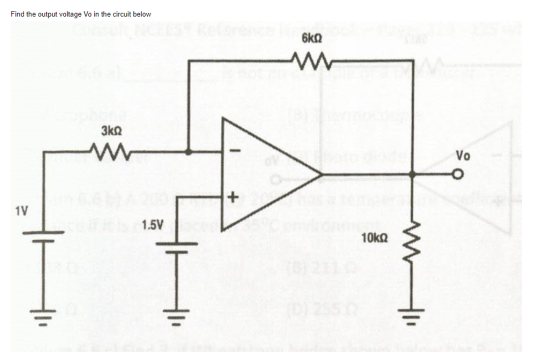

Find the output voltage Vo in the circuit below 6kΩ ΛΑ 3kΩ NN - 1.5V 10kΩ...
