Answer-
initially present state of all flip-flop is 0.
and at load all input time, CLK is 1.
| CLK | Data In | FFA(QA) | FFB(QB) | FFC(QC) | FFD(QD)=Data out |
| Initial | 0 | 0 | 0 | 0 | |
![]() |
0 | 0 | 0 | 0 | 0 |
![]() |
1 | 1 | 0 | 0 | 0 |
![]() |
1 | 1 | 1 | 0 | 0 |
![]() |
0 | 0 | 1 | 1 | 0 |
![]() |
1 | 1 | 0 | 1 | 1 |
![]() |
0 | 0 | 1 | 0 | 1 |
![]() |
0 | 0 | 0 | 1 | 0 |
![]() |
1 | 1 | 0 | 0 | 1 |
![]() |
1 | 1 | 1 | 0 | 0 |
| CLK | Serial Data In | Serial Data Out |
![]() |
0 | 0 |
![]() |
1 | 0 |
![]() |
1 | 0 |
![]() |
0 | 0 |
![]() |
1 | 1 |
![]() |
0 | 1 |
![]() |
0 | 0 |
![]() |
1 | 1 |
![]() |
1 | 0 |

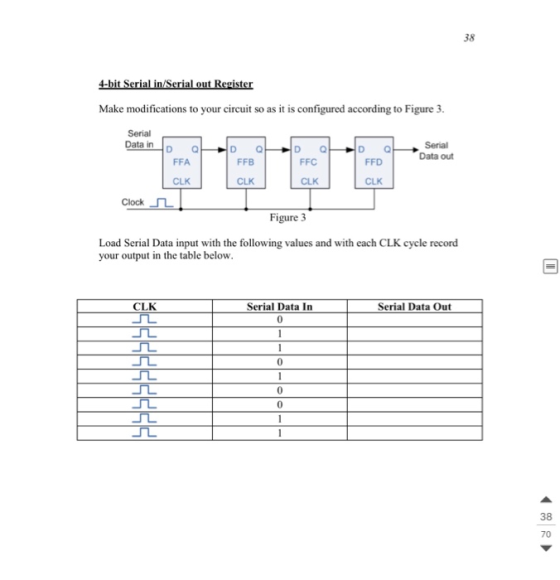

my bread board broke and i need the data output. 38 Make modifications to your circuit...
I really need help with these two questions. I posted
earlier but I didn't get any assistance. please help
The shift register below has shift, load and clock inputs as shown. The serial data input is tied 3) High (1). The state of the data input lines is indicated. Determine the data out waveform in reference to the clock pulses.ope) D, D. 0 0 SHIFT/LOAD SRG 4 Serial Data In Data Ost CLK CLK SH/LD Serial data Out Show a...
ECE 204 Pre-Lab 12 Flip-flops [11 next output for Q when counting up, with QA being least significant bit (LSB) and Qg being most significant bi (MSB) Fill out the truth table below with Q+ being the QQQQ+ 0 0 0 I To implement this using D flip flops, the D input (data) is written to Q when the clock gets to the next cycle, so that means that the D input needs the Q+ during the clock event, or...
1&2 and please I need quickly.
Q1 (35 pts): Design a combinational circuit that takes 8 bits of input and checks iif the inputs are symmetric or not and produces an output immediately. Example: 10011001 or 11000011 produce 1 and 11011010 or 11001100 produce 0.) (a) Write Verilog RTL for this circuit. (b) Same functionality but output appears next cycle. You can instantiate the design in part a. (c) Same functionality but output appeurs after two cycles. You can instantiate...
9. Product State Graph ou are asked to design a sequence detector to detect the input codes 10 and 01. The input of the circuit is and the output is Z, which only changes at a clock edge. Overlaps must also be detected. Z only changes at the clock edge . [2%] A. Restate the problem by circling the most appropriate term within the parentheses 1. The circuilt type is (combinational- asynchronous- FSM). 2. The subcategory of the circuit is...
Can someone please show me a circuit diagram so i can see how to
construct this on a bread board i am id 6 yhanks in advance
EEET-2251: Course & Projoct Guide 2018 EEET-2251: Cousc &Projoct Guide 2018 affic Light Controller A single switch must set your HC74 based state machine to the initial state (the U state This lab will get you to design a simple controller for a pedestrian crossing based on synchronous digital logic. You will master...
